Introduction

fast car

This blog looks at the sort of performance that the free TimesTen XE In-Memory Database can achieve with a commodity 1U Linux server

  • A latency of 1.6 microseconds for primary key lookups
  • A throughput of 45 million queries per second [100% read]
  • A throughput of 7.8 million transactions per second [80% read, 20 % write]
  • Scaling to 256 CPU cores

The devil is in the details, so read the rest of this blog to understand those performance numbers.

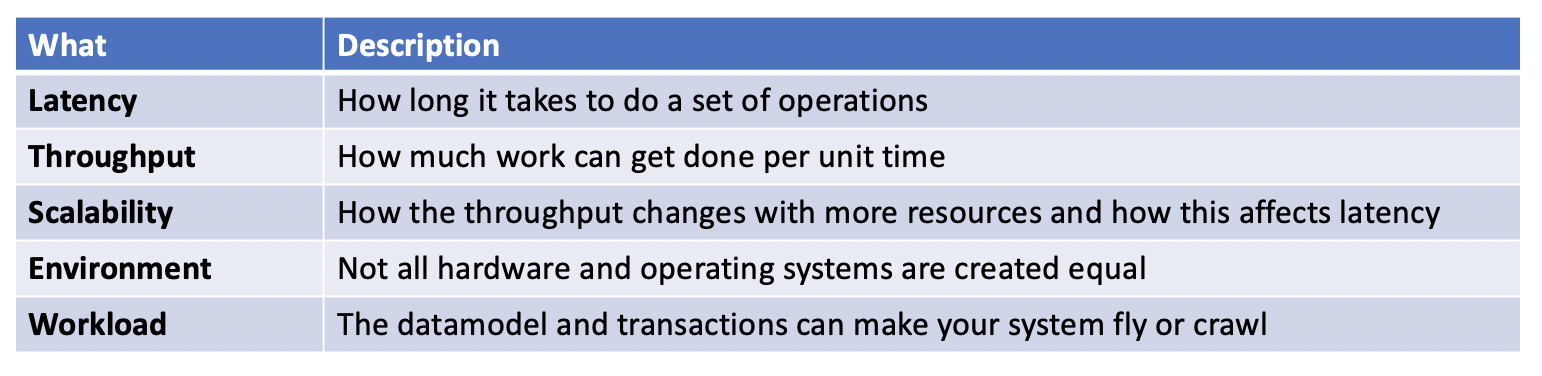

Database performance is really about five things:

Database performance factors






Environment

Oracle Cloud

The tests in this blog were run on the following environment:

You should expect similar performance with similar hardware in your data center or using other clouds.







Workload

The workload was a simple telecommunications use case called TPTBM.

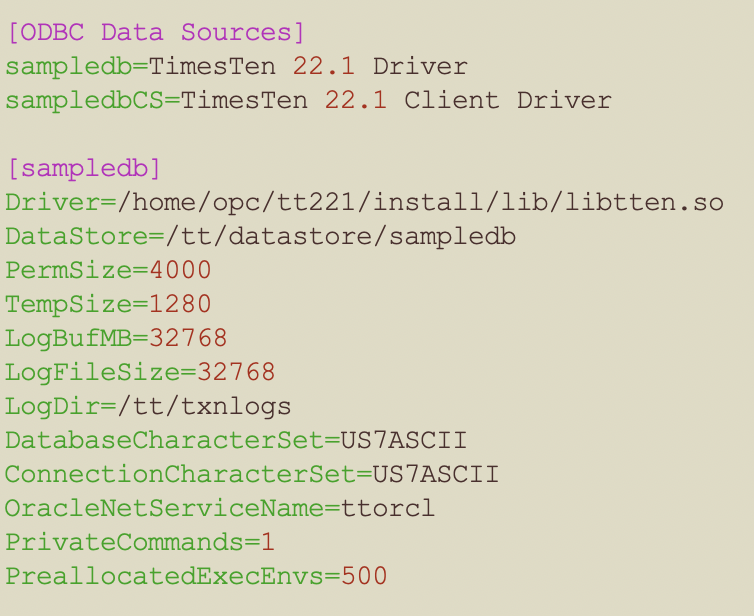

The TimesTen XE database configure file [sys.odbc.ini] was:

sys.odbc,ini


Both the database files [/tt/datastore/sampledb.*] and redo log files [/tt/txnlogs/*] were on a Linux ext4 file system using OCI block storage, ie NAS using iSCSI.



The TPTBM SQL transaction was:

select
  directory_nb,
  last_calling_party,descr
from vpn_users
where vpn_id = ? and vpn_nb= ?;
insert into vpn_users values (?,?,?,?,?);
update vpn_users
set last_calling_party = ?
where vpn_id = ?
and vpn_nb = ?;
delete
from vpn_users
where vpn_id = ?
and vpn_nb = ?;
commit;



The VPN_USERS tables was:

CREATE TABLE vpn_users(
vpn_id             TT_INT NOT NULL,
vpn_nb             TT_INT NOT NULL,
directory_nb       CHAR(10) NOT NULL,
last_calling_party CHAR(10) NOT NULL,
descr              CHAR(100) NOT NULL,
PRIMARY KEY (vpn_id,vpn_nb));







 CPUs

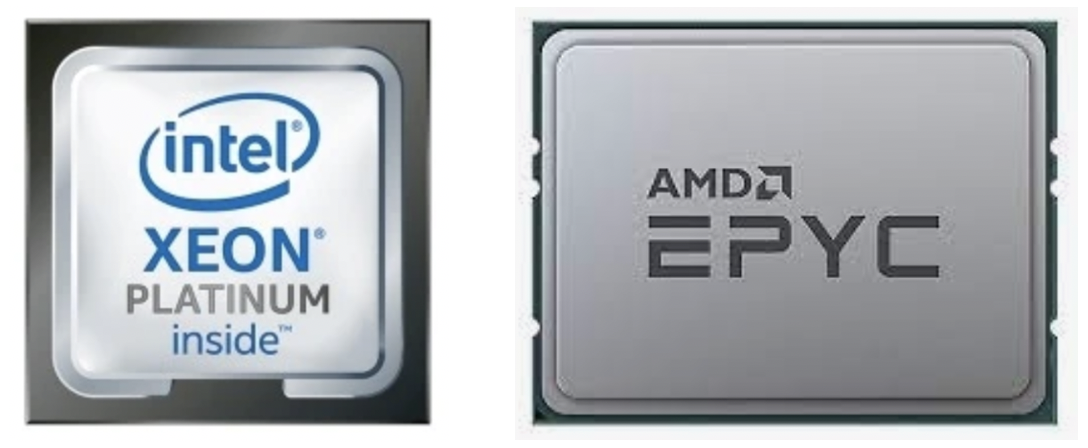

Xeon and EPYC CPUs

  • TimesTen XE is only available on Linux x8664
  • This means that Intel Xeon and AMD EPYC CPUs will tend to give the best scalability
    • A gaming CPU with few cores and extreme frequency will tend to give the best latency
    • Gaming CPUs with extreme frequency will not tend to scale as well as server CPUs as they have less CPU cores



lscpu output

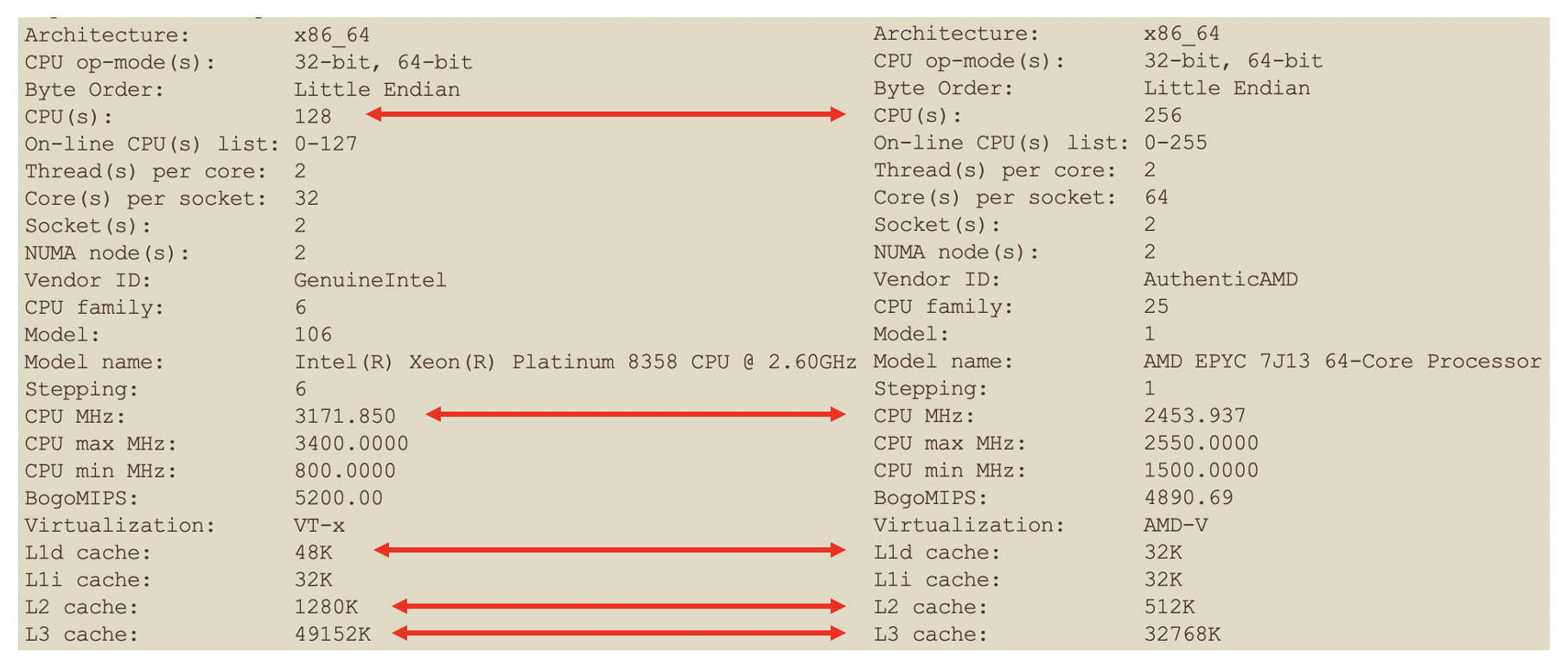

lscpu for Xeon and EPYC CPUs

  • The above image shows the output of lscpu for both the Intel Xeon and AMD EPYC CPUs that I used
  • The red arrows compare the Intel Xeon Platinum 8358 and AMD EPYC 7J13 CPUs
    • The Xeon has a higher base and max frequency than the EPYC
    • The Xeon has significantly larger L1, L2 and L3 caches than the EPYC
    • The Xeon has half the number of CPU cores of the EPYC







Latency

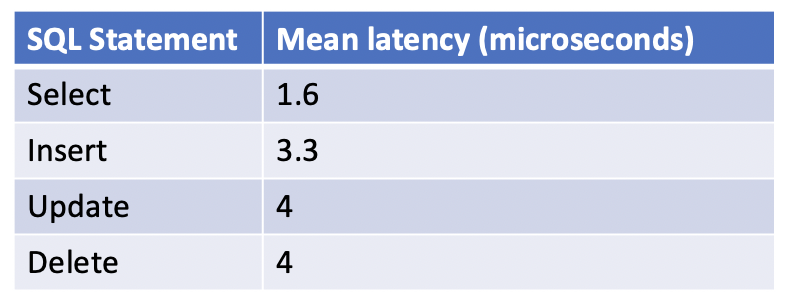

SQL latency

  • The mean latency for 89 million executions of the TPTBM SQL select, insert, update and delete statements were used
  • The benchmark warmed up for 30 seconds and ran for three minutes
    • Running the benchmark for longer, [eg 30 minutes] gave the same results
  • An even distribution was used to minimize L3 cache effects
    • There were 10 million rows in the VPN_USERS table
    • A random number generator was used to generate an even distribution of primary key values for the Select, Insert, Update and Delete statements
    • This means that there was a 1/10,000,000 chance of each transaction using the same row
    • This working set was large enough that L3 CPU cache hits were not a factor. ie a smaller working set could have skewed the results by using L3 cache rather than DRAM
  • Inserts, updates and deletes take longer than selects as the database needs to deal with the undo/redo as these are ACID transactions







Throughput

Read only throughput

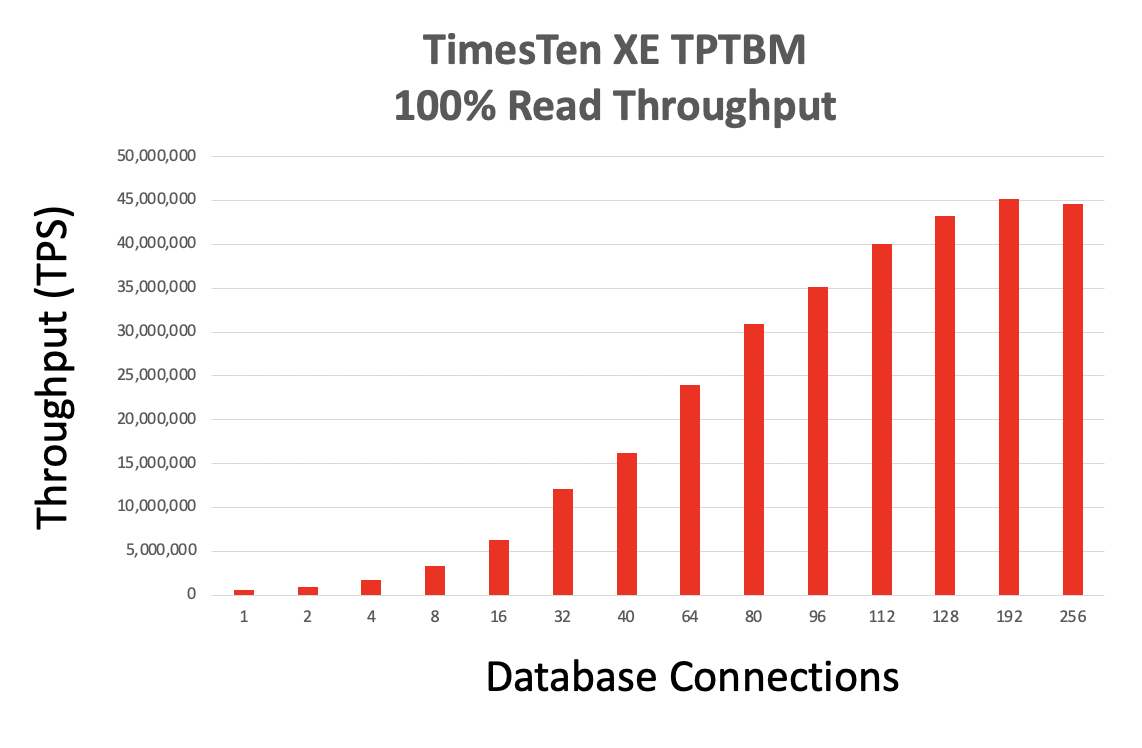

TPTBM read throughput

  • Using the Oracle Cloud bare metal BM.Standard.E4.128 compute node which had two AMD EPYC CPUs, a 100% read workload could scale to 256 database connections
  • At 192 database connections, TimesTen XE was executing 45 million primary key lookup per second on a 1U Linux server
  • Doubling the number of database connections almost doubled the throughput

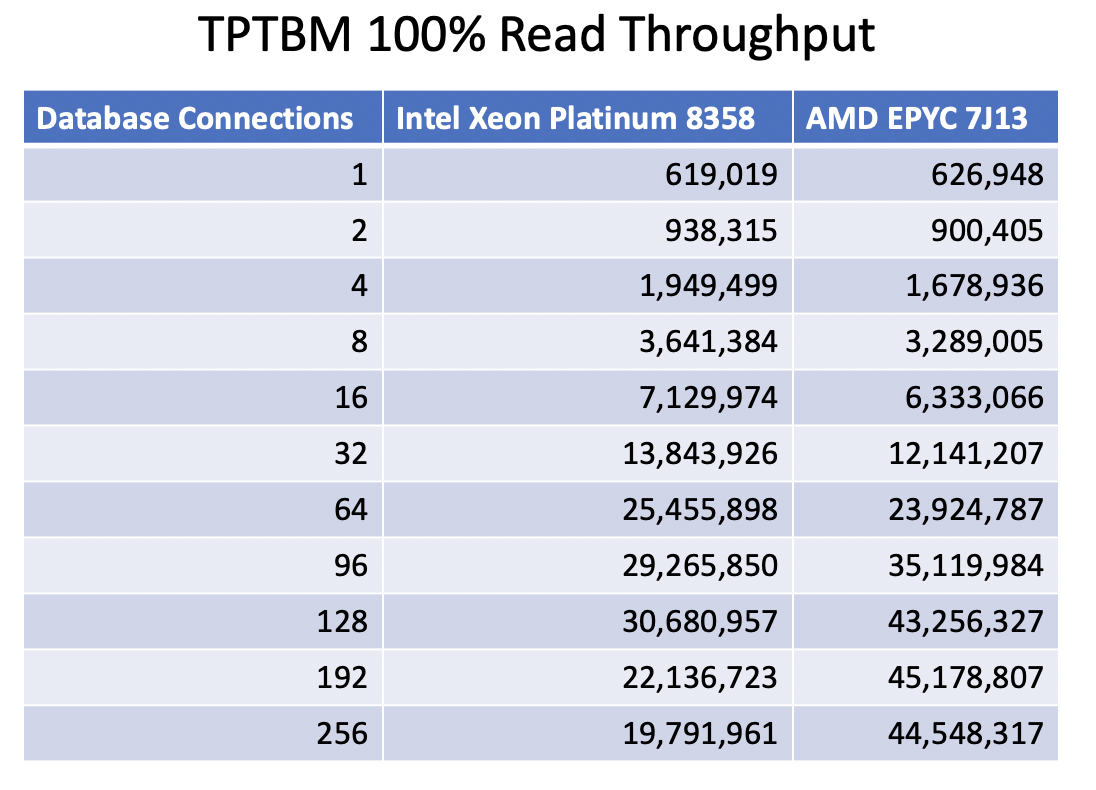

TPTBM read throughput

  • As TimesTen XE is an in-memory database, if TimesTen XE is well tuned then it will tend to be neither be network nor disk IO bound
  • This means that TimesTen XE will tend to be CPU bound for direct link benchmarks
    • Direct linked applications run on the same machine as the TimesTen database and do not use a TCP socket to communicate with the database
    • If client server connections over a TCP socket were used, you would need thousands of database connections to make the TimesTen XE server CPU bound
    • TimesTen XE will tend to scale to the number of CPU cores for read workloads
  • The above table shows results for both Intel Xeon and AMD EPYC CPUs
  • The number of CPU cores, the size of the L2 and L3 caches and CPU frequency will tend to determine the TimesTen XE performance

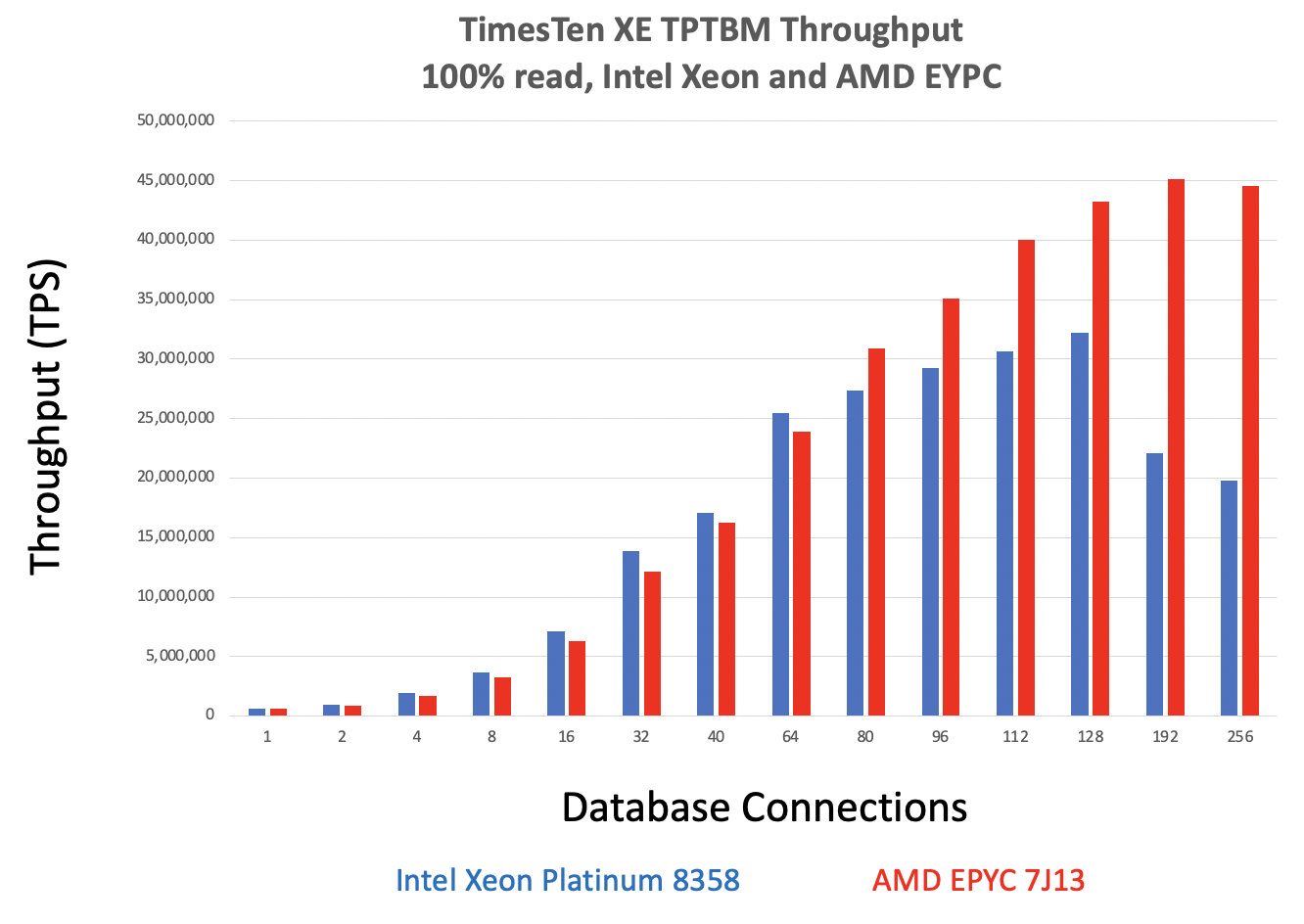

TPTBM read throughput chart

  • This chart compares the throughput of TimesTen XE for both Intel Xeon and AMD EPYC CPUs
    • The tables, data, workload and TimesTen XE versions are the same
    • The variable is whether an Intel Xeon Platinum 8358 or an AMD EPYC 7J13 CPU was used
  • For 1-64 database connections, the Intel Xeon CPU tends to give better read throughput than than the AMD EPYC CPU as it has a higher CPU frequency
  • For more than 64 database connections, the AMD EPYC CPU has better read throughput than the Intel Xeon as it has more CPU cores
  • Both the Intel Xeon and AMD EPYC CPUs show their server scalability curves for TimesTen XE
    • The read throughput on the Intel Xeon CPU decreases when there are more database connections than CPU cores
    • The AMD EPYC CPU was not CPU bound as it did not use more database connections than CPU cores







Read write throughput

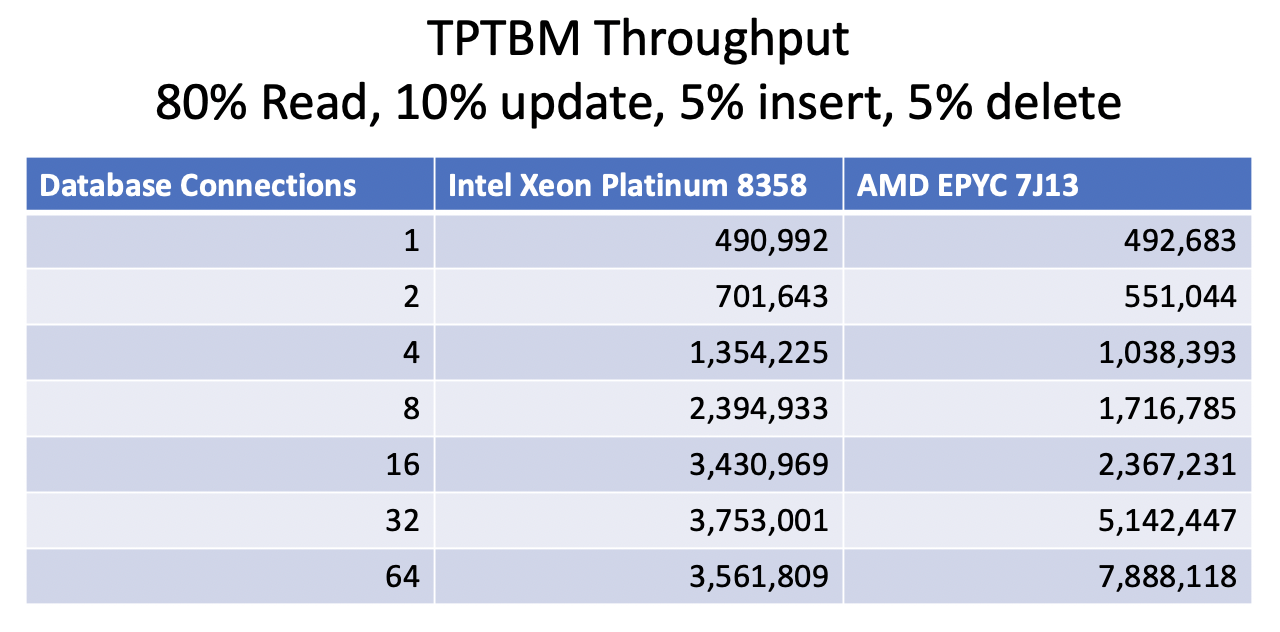

TPTBM read write numbers

  • When a read/write workload is used:
    • The AMD EPYC CPU scales to 7.8 million transaction per second using 64 database connections
    • The Intel Xeon CPU scales to 3.7 million transactions per second using 32 database connections
    • Eventually the read/write workload become IO bound for both the Intel and AMD CPUs
      • The redo and database writes are all going over the network as the storage is NAS with iSCSI
      • Using fast local NVMe storage would likely have given better write scalability

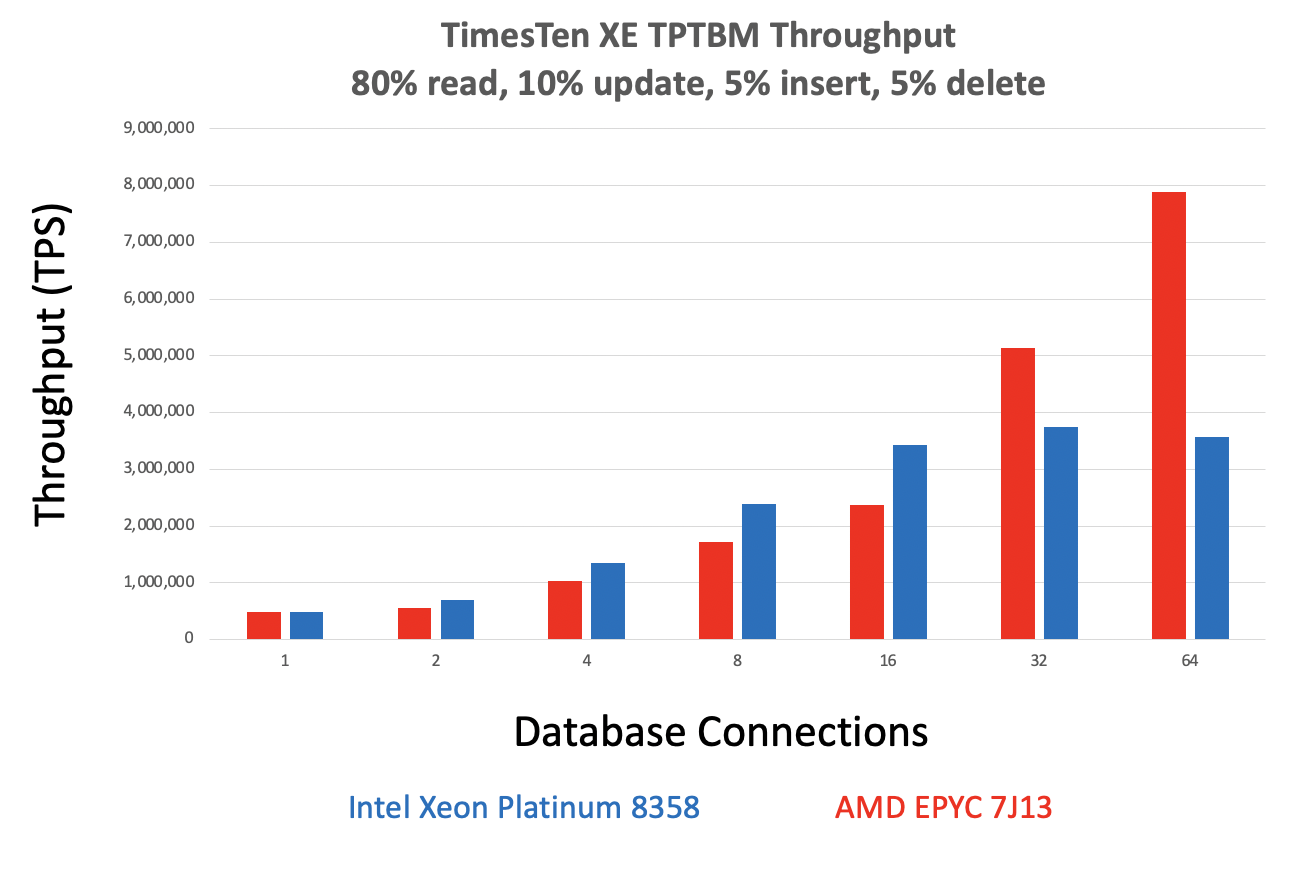

TPTBM read write chart

  • This read/write chart shows that the Intel Xeon CPUs tends to give better throughput up to 16 database connections
  • The AMD EPYC CPUs tend to give better read/write scalaiblity for 32 to 64 database connections









More complex workloads

The TimesTen XE In-Memory Database will tend to enable latency that is 2x – 40x lower than a traditional disk based database.

The TPTBM read and read/write workloads are simple transactions with a single table.

Customer workloads for complex joins with 50+ billion rows have been shown to be up to 33x faster when using TimesTen than optimized production clustered and/or single instance databases which are disk based.

How well that the free TimesTen XE In-Memory Database performs depends on many factors:

  • The data model
  • The workload
  • The number and types of joins
  • How large the resultsets are
  • The hardware
  • Whether the SQL was prepared and bound
  • The SQL APIs [eg JDBC, OCI, ODBC, Python, Node.js, Go etc]

So, try TimesTen XE for your workload, as it is free 🙂





Summary

  • TimesTen XE can run on Kubernetes, virtual machines or bare metal machines in clouds, or in your data center
  • TimesTen XE is a really fast in-memory relational database with ACID transactions
  • TimesTen XE can execute simple SQL Select, Insert, Update and Delete statements in a few microseconds
  • TimesTen XE can scale simple read workloads to 45 million reads per second on commodity 1U Linux servers
  • TimesTen XE can scale simple mixed workloads with 20% writes to 7.8 million transactions per second on commodity 1U Linux servers
  • The scalability of TimesTen XE is dependent on the CPU
  • TimesTen XE has excellent performance on both Intel Xeon and AMD EPYC CPUs
