adaptived is a simple yet extremely powerful and flexible cause-and-effect daemon. Users can use adaptived to construct a series of custom rules to automate tasks, manage resources, kill processes, etc. When used in conjunction with cgroups, adaptived can adjust system performance and settings in realtime to adapt to a changing workload.

adaptived builds upon the work of adaptivemm and oomd. Whereas those two daemons are primarily focused on memory management, adaptived is designed to support any and all technologies via its plugin-based architecture and extensible schema. adaptivemm has been extensively discussed in several previous Oracle blogs [1] [2] [3].

adaptived has several built-in causes and effects. When using only the built-in causes and effects, adaptived can be invoked directly by calling the adaptived daemon. See the Getting Started Section. To use custom cause and effects, a user must use the adaptived library and its C APIs. See the Advanced Use Case Section. If there is sufficient demand, we may consider adding Python bindings.

Terminology

adaptived uses the following terminology:

  • Cause – A cause is an event or measurement that can be used to trigger an effect. When a rule contains multiple causes, the causes will be processed in the order they are enumerated in the configuration file. All causes in a given rule are run every loop through adaptived – even if an earlier cause did not trigger. Effects are only invoked if all of the causes in the rule have triggered.
  • Effect – An effect is an action to be taken when the cause(s) in the same rule are triggered. Multiple effects can be connected together in a rule. Baring an error, each effect will run when the associated causes are triggered.
  • Rule – A rule is one or more causes combined with one or more effects. When all of the causes in the rule are triggered, then the effect(s) will be executed. An adaptived configuration file can contain multiple rules.

Architecture

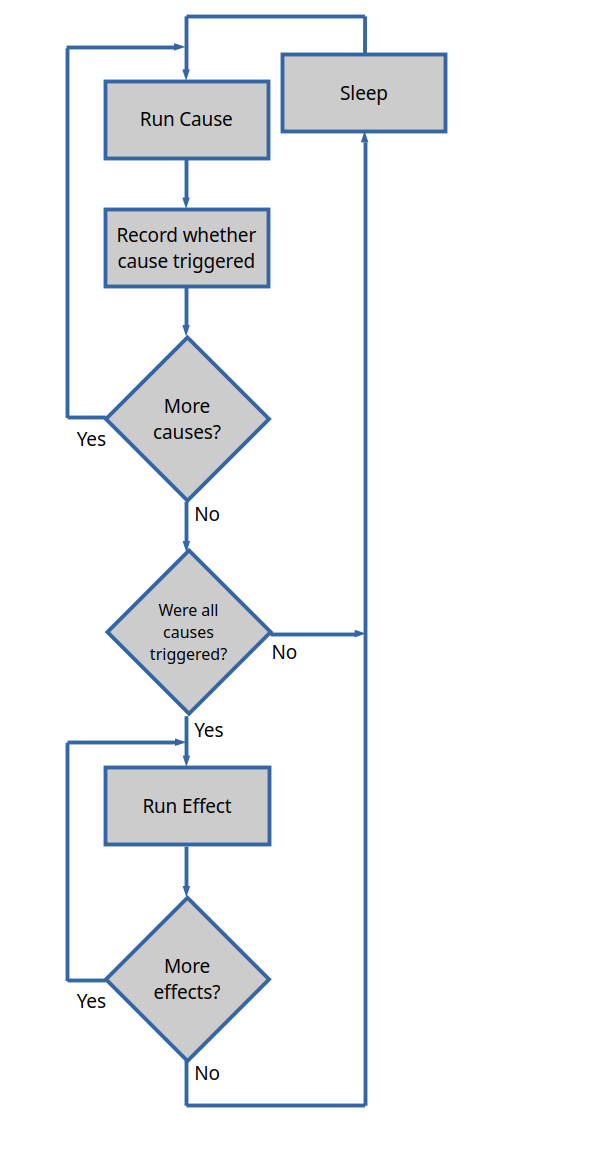

adaptived’s main processing loop operates as shown in the flow chart below:

adaptived flow chart

Getting Started

If a user only wants to utilize the built-in causes and effects in adaptived, then they can invoke the daemon directly.

For example, given this configuration file, a user could start adaptived as follows:

adaptived -c ./doc/examples/jimmy-buffett-config.json -i 3

The above command will start the adaptived daemon. It will employ the rules outlined in the provided configuration file, and the main adaptived loop will run every 3 seconds.

Given the rule in this example, adaptived will print It's 5 o'clock here :) when the time is after 5 pm and it’s a weekday. It will print that message until midnight, and then the time_of_day cause will no longer trigger. Since no maximum number of loops was provided in this example, adaptived will continue running until it is killed. Once it’s after 5 pm and a weekday, then the print effect will again run and output the aforementioned message.

Real-World Use Cases

The following use cases utilize example JSON configuration files located in adaptived’s examples directory.

  • Given two cgroups, high-priority and low-priority, kill processes in the low-priority cgroup when there is PSI pressure on the high-priority cgroup [1]
  • Given two cgroups, high-priority and low-priority, reduce the cpu.weight of the low-priority cgroup when there is PSI pressure on the high-priority cgroup. Conversely, when there is very little pressure on the high-priority cgroup, increase the cpu.weight of the low-priority cgroup [2]
  • Adjust a cgroup’s soft memory limit (memory.high) to determine the minimum memory requirements of an application. This value could be used to populate that application’s memory.low cgroup setting [3]
  • When an anomalous event occurs, save critical logs off for later offline evaluation and troubleshooting [4]
  • When the system’s MemFree field falls below a threshold, send a signal to a monitoring process [5]

Advanced Use Case – Custom Causes and/or Effects

adaptived allows for users to create their own custom causes and effects. (Note that pull requests are encouraged, and we encourage users to submit new causes and effects to the adaptived library so that they can be built in. But we realize that some causes and/or effects may be proprietary or just too obscure to add to the main library.)

To utilize custom causes and/or effects, the user must employ the adaptived library and its C APIs. The automated test, 003-register_plugin_cause.c, is a good starting point.

Schema

An example adaptived JSON configuration file is attached below. Note that the comment fields are for illustrative purposes and are not required. (In fact, adaptived will ignore fields that aren’t part of its schema. As outlined below, these ignored fields could be a way to document the configuration file.)

{
    "comment1": "adaptived configuration files consist of one or more rules.",
    "comment2": "The rules are processed independent of each other,",
    "comment3": "therefore ensure that one rule doesn't adversely affect another rule.",
    "rules": [
        {
            "name": "We recommend a short but descriptive rule name",
            "comment1": "The rule name must be unique as the name is used as the built-in identifier",
            "comment2": "Also, the rule name is displayed in debug logs, so a short-but-descriptive name is very helpful in debugging",
            "description": "Optional but helpful for further describing the rule.",

            "causes comment1": "A rule consists of one of more causes.",
            "causes comment2": "Every cause is run every time the main adaptived processing loop runs.",
            "causes comment3": "Every cause must trigger for the effect(s) to be run.",
            "currently-supported causes": "https://github.com/oracle/adaptivemm/blob/master/adaptived/doc/internal/list-of-built-in-causes.md",
            "causes": [
                {
                    "name": "cause 1 name",
                    "args": {
                        "comment1": "Each cause has its own set of args applicable to that cause.",
                        "comment2": "See the list of built-in causes for the args supported by each cause"
                    }
                },
                {
                    "name": "cause 2 name",
                    "comment1": "Even if cause 1 does not trigger, this cause will be evaluated every time the adaptived processing loop runs.",
                    "comment2": "This is critical so that averages, trends, etc. can be properly computed.",
                    "args": {}
                }
            ],

            "effects comment1": "A rule consists of one or more effects.",
            "effects comment2": "The effect(s) will only be run if every cause in this rule triggers.",
            "currently-supported effects": "https://github.com/oracle/adaptivemm/blob/master/adaptived/doc/internal/list-of-built-in-effects.md",
            "effects": [
                {
                    "name": "effect 1 name",
                    "args": {
                        "comment1": "Just like with the causes, each effect has its own set of args applicable to that effect.",
                        "comment2": "See the list of built-in effects for the args supported by each effect."
                    }
                },
                {
                    "name": "effect 2 name",
                    "args": {}
                }
            ]
        },

        {
            "name": "When MemFree falls below 2 GB, send SIGALRM (signal 14) to the monitoring program",
            "causes": [
                {
                    "name": "meminfo",
                    "args": {
                        "field": "MemFree",
                        "threshold": "2G",
                        "operator": "lessthan"
                    }
                }
            ],
            "effects": [
                {
                    "name": "signal",
                    "args": {
                        "proc_names": [
                            {
                                "name": "monitor_program"
                            }
                        ],
                        "signal": 14
                    }
                }
            ]
        }
    ]
}

Additional Resources

Conclusion

In summary, adaptived is a cause-and-effect daemon that is lightweight, powerful, and easy to use. adaptived is available in Oracle Linux 8 and newer and can be installed via:

dnf install adaptived
