Using Vagrant with Oracle VirtualBox enables you to create local virtual machines using just a few commands and do so without the need for an ISO file. Virtual machines when created manually in Oracle VirtualBox use an ISO file. With Vagrant, you don’t have to spend time searching for and downloading an ISO file for each virtual machine you’re creating. This allows for rapid deployment of environments using different operating systems and operating system versions. This blog demonstrates how to create and then access multiple Linux virtual machines using Vagrant with Oracle VirtualBox.

Prerequisites

Create Virtual Machines

Vagrant boxes are used to initiate new virtual machine environments with Vagrant (see Vagrant box documentation for more about boxes and environments). Each Vagrant environment must be located in its own directory.

You can access Vagrant boxes for different operating systems and operating system versions from the Vagrant Public Registry. See Configuring Virtual Machines in the Oracle VirtualBox User Guide for operating systems supported by Oracle VirtualBox.

Oracle Linux

Clone the git repository containing Vagrant boxes for Oracle Linux.

git clone https://github.com/oracle/vagrant-projects.git

Navigate to the directory containing the Vagrant box for the desired Oracle Linux version. For this example, the Oracle Linux 9 directory is used.

cd vagrant-projects/OracleLinux/9

Use vagrant up to create the virtual machine using VirtualBox as the provider.

vagrant up --provider=virtualbox

Once the command completes, the virtual machine is booted and ready to access.

Fedora

This example uses the generic fedora28 box available at generic/fedora28 on the Vagrant Public Registry.

Use vagrant init to initialize the Vagrant environment.

vagrant init generic/fedora28 --box-version 4.3.12

Use vagrant up to create the virtual machine using VirtualBox as the provider.

vagrant up --provider=virtualbox

Once the command completes, the virtual machine is booted and ready to access.

Ubuntu

This example uses Ubuntu’s trusty64 box available at ubuntu/trusty64 on the Vagrant Public Registry.

Use vagrant init to initialize the Vagrant environment.

vagrant init ubuntu/trusty64 --box-version 20191107.0.0

Use vagrant up to create the virtual machine using VirtualBox as the provider.

vagrant up --provider=virtualbox

Once the command completes, the virtual machine is booted and ready to access.

List Virtual Machines

The Vagrant command line interface or VirtualBox Manager can be used to check the status of the created virtual machines.

Use the vagrant global-status command to list all Vagrant environments.

 vagrant global-status

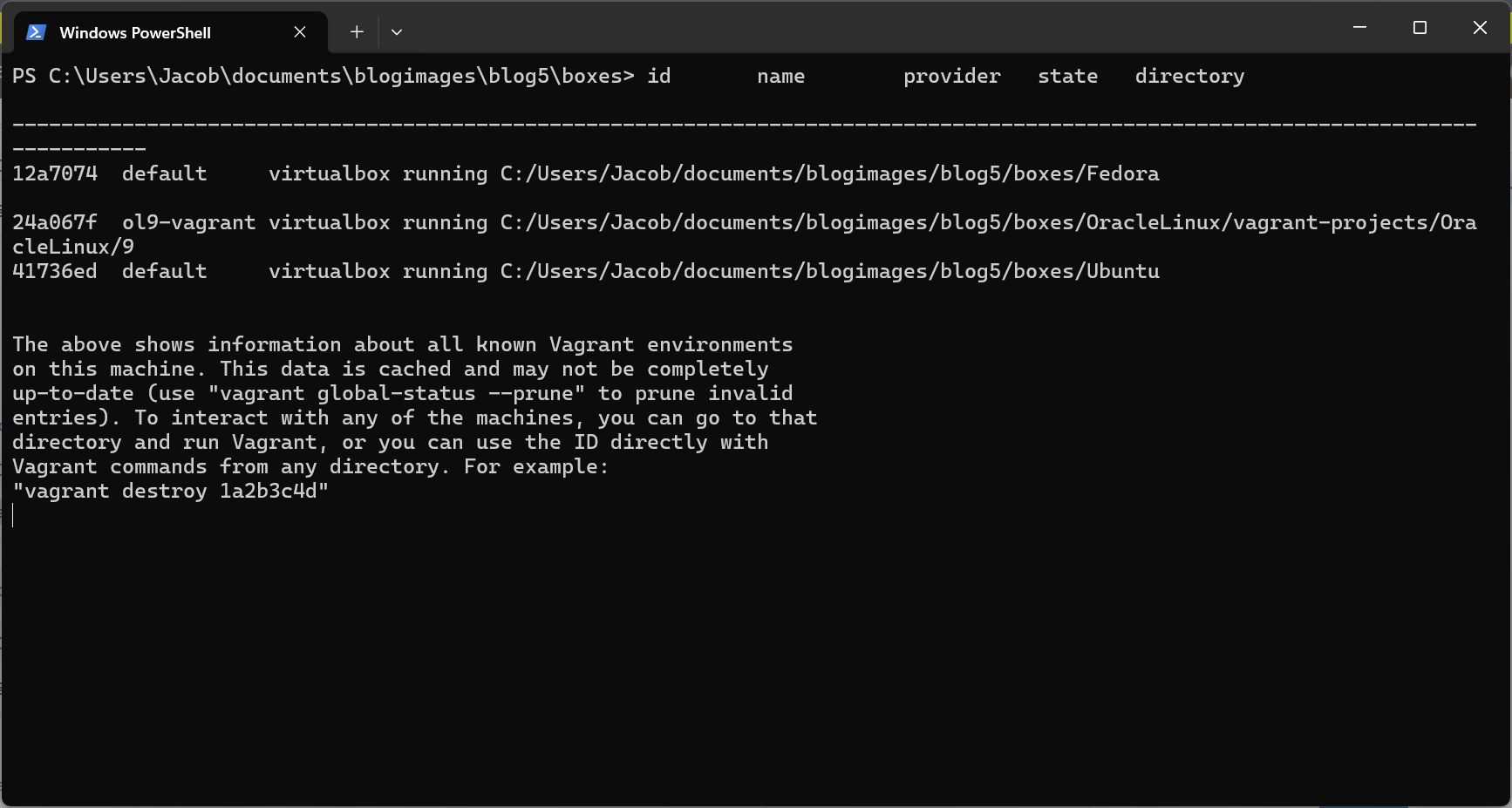

The output of the command shows the status of all virtual machines created using Vagrant.

The output of the vagrant global-status command.
The output of vagrant global-status shows the new virtual machines.

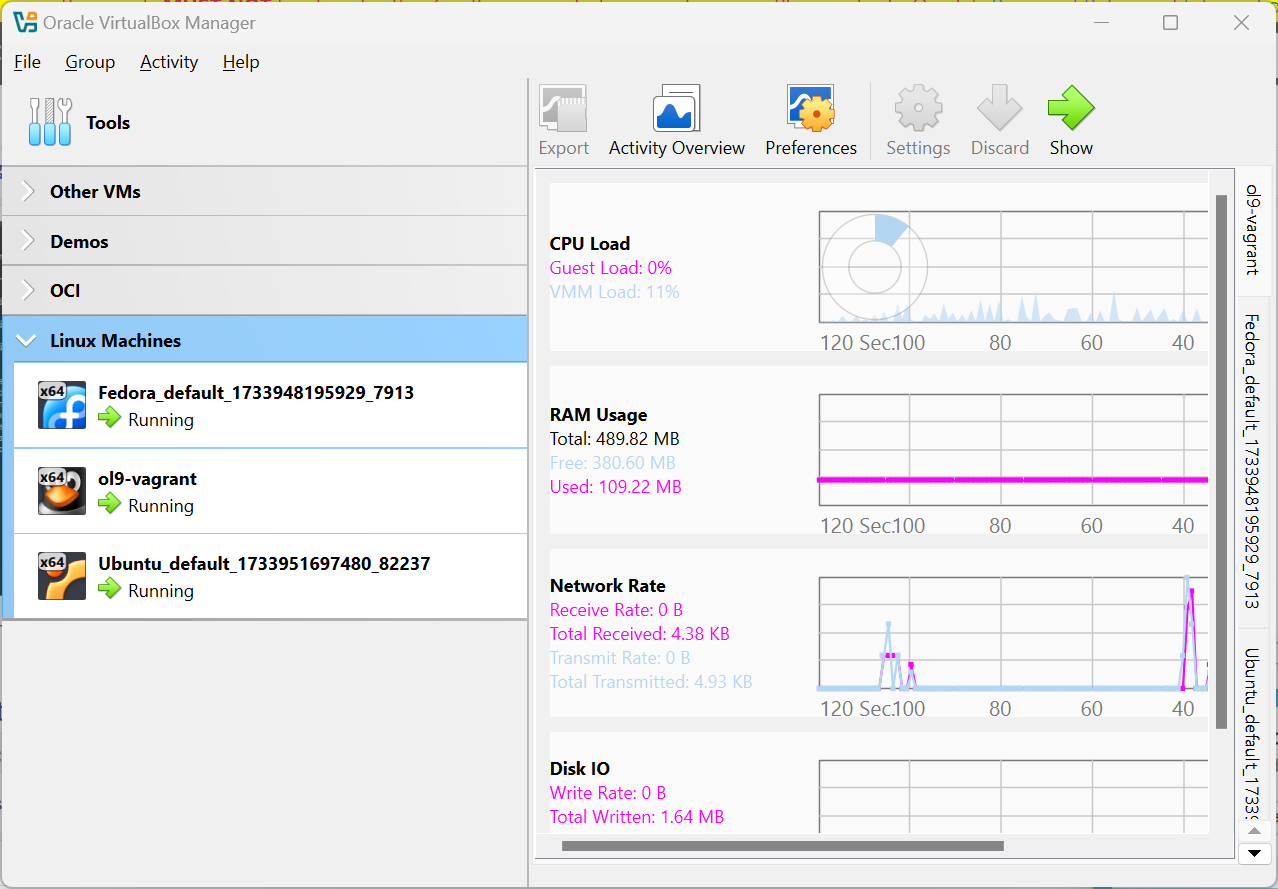

VirtualBox Manager displays the status of the created virtual machines.

VirtualBox Manager displays the newly created virtual machines.
VirtualBox Manager displays the newly created virtual machines.

Access Virtual Machines

To access the virtual machines created, run the vagrant ssh command. If you are not located in the directory containing the Vagrant environment, the machine id must be provided.

These examples use vagrant ssh to access the Oracle Linux 9 virtual machine.

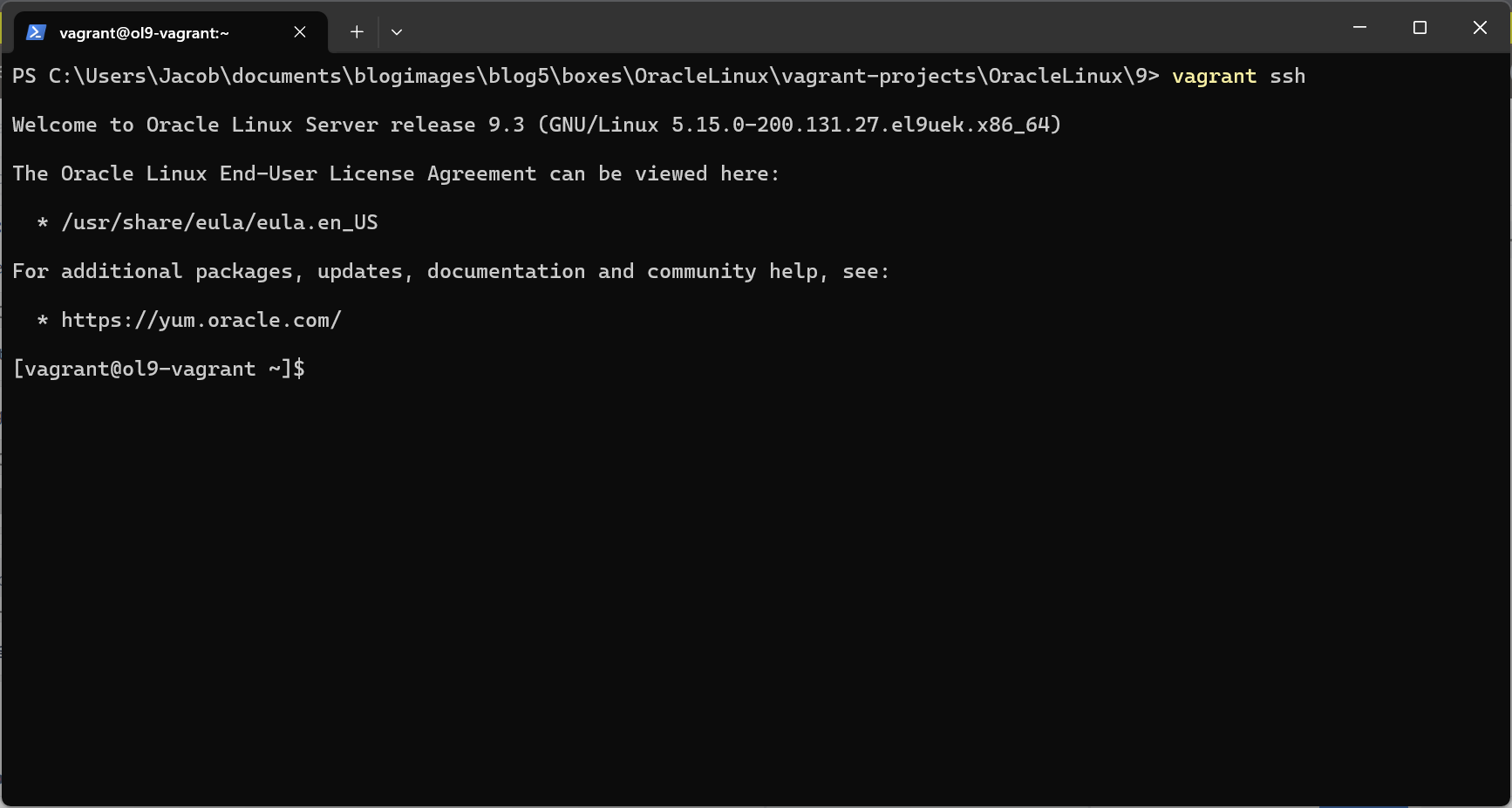

Inside Vagrant environment directory:

vagrant ssh
The output of vagrant ssh when used in the vagrant environment directory.
vagrant ssh is used to connect to the virtual machine.

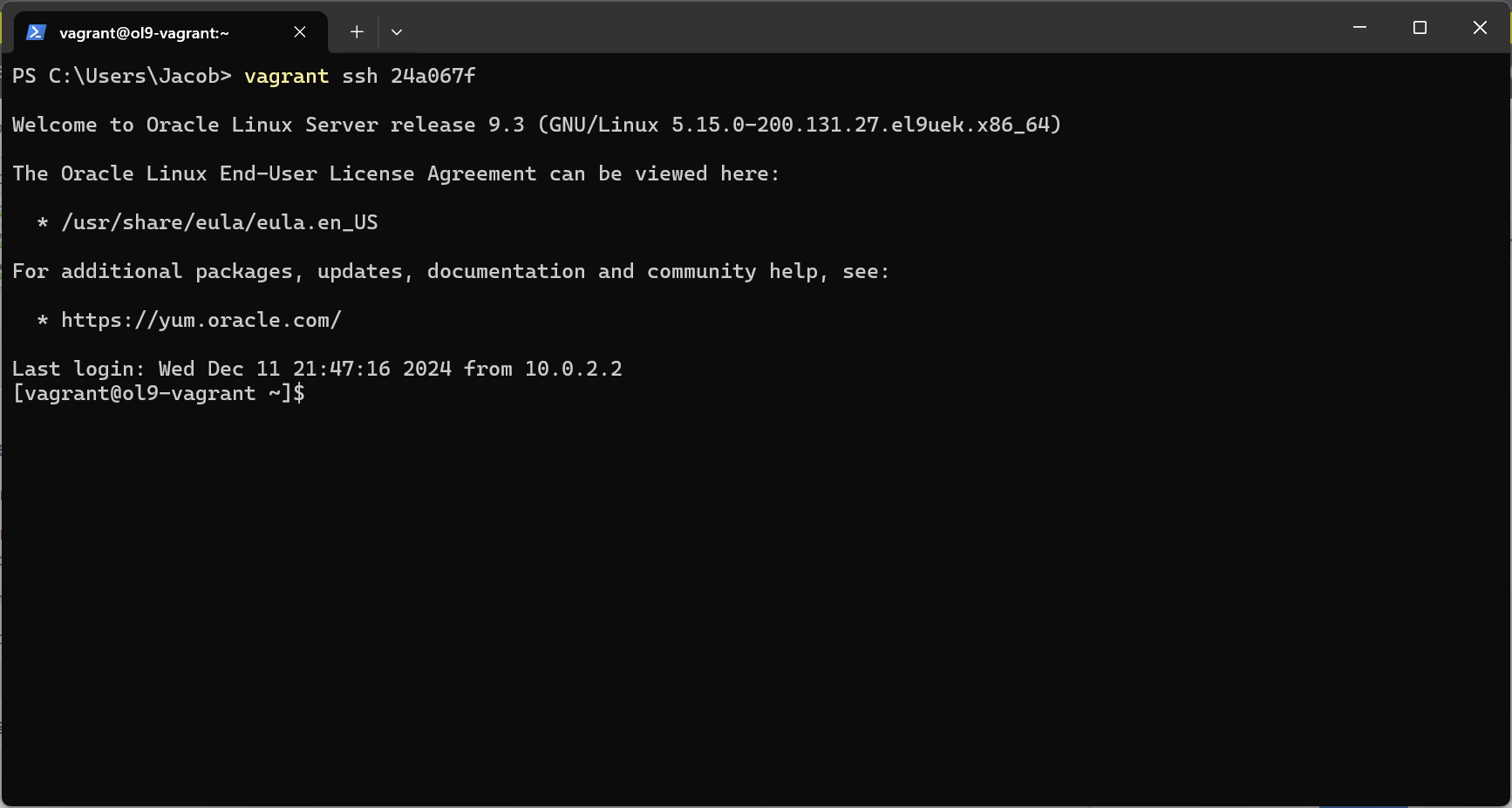

Outside Vagrant environment directory:

vagrant ssh <machine-id>
Vagrant ssh is used to connect to the virtual machine with an id.
Vagrant ssh is used to connect to the virtual machine using an id.



Three virtual machines with different operating systems all managed by Oracle VirtualBox are now accessible. For example, you can use performance metric monitoring or clone the virtual machine. With Oracle VirtualBox’s integrations with Oracle Cloud Infrastructure (OCI), you can export and import the virtual machines to and from OCI.

Download Oracle VirtualBox now to use with Vagrant to help you create virtual machines quickly and easily.
