I would like to provide here some practical examples and best practices of how to make use of the powerful data loading and querying features of the Autonomous Data Warehouse (ADW) in the Oracle Cloud. We will dive into the meaning of the more widely used parameters, which will help you and your teams derive business value out of your Data Warehouse in a jiffy! An extremely useful feature of this fully managed service is the ability to directly query data lying in your external object store, without incurring the time and cost of physically loading your data from an object store into your Data Warehouse instance.
The DBMS_CLOUD.CREATE_EXTERNAL_TABLE package & procedure enables this behavior, creating a table structure over your external object store data, and allowing your ADW instance to directly run queries and analyses on it.
A few pre-cursor requirements to get us running these analyses:
-
Make sure you have a running ADW instance, a credentials wallet and a working connection to your instance. If you haven’t done this already follow Lab 1 in this tutorial.
-
Use this link to download the data files for the following examples. You will need to unzip and upload these files to your Object Store. Once again, if you don’t know how to do this, follow Lab 3 Step 4 in this tutorial, which uploads files to a bucket in the Oracle Cloud Object Store, the most streamlined option. You may also use AWS or Azure object stores if required, you may refer to the documentation for more information on this.
-

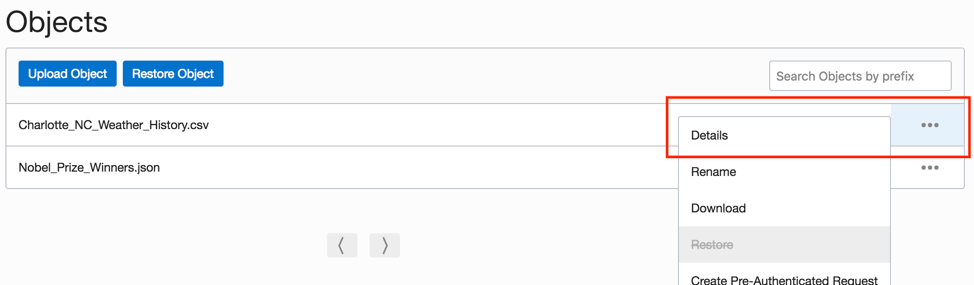

If you are using the Oracle Cloud Object Store as in Lab 3 above, you will need Swift URLs for the files lying in your object store. If you already created your object store bucket’s URL in the lab you may use that, else to create this use the URL below and replace the placeholders <region_name>, <tenancy_name> and <bucket_name> with your object store bucket’s region, tenancy and bucket names. The easiest way to find this information is to look at your object’s details in the object store, by opening the right-hand menu and clicking “Object details” (see screenshot below).
https://swiftobjectstorage.<region_name>.oraclecloud.com/v1/<tenancy_name>/<bucket_name>
Note: In coming updates you will be able to use this object store URL directly in the DBMS_CLOUD API calls, instead of a SWIFT URL.
-
Have the latest version of SQL Developer preferably (ADW requires v18.3 and above).
Comma Separated Value (CSV) Files

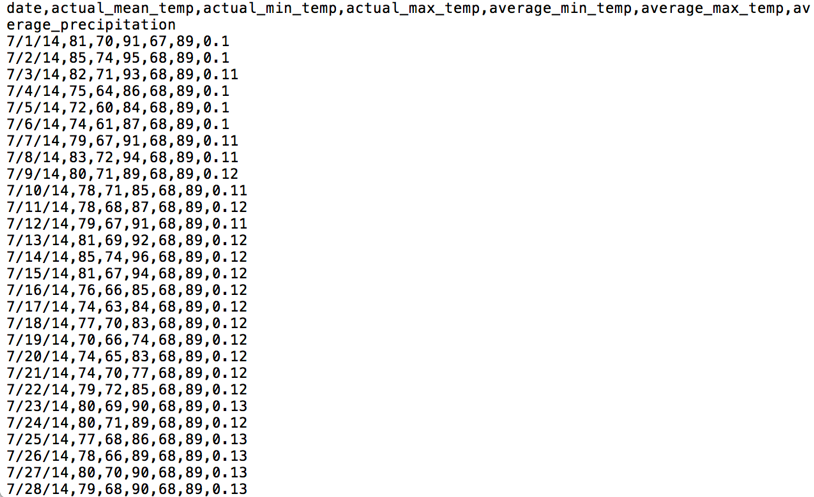

CSV files are one of the most common file formats out there. We will begin by using a plain and simple CSV format file for Charlotte’s (NC) Weather History dataset, which we will use as the data for our first external table. Open this Weather History ‘.csv’ file in a text editor to have a look at the data. Notice each field is separated by a comma, and each row ends by going to the next line. (ie. Which implies a newline ‘\n’ character). Also note that the first line is not data, but metadata (column names).
Let us now write a script to create an external table in our ADW over this data file lying in our object store. We will specify all the column names, and the format of the file as CSV. The format parameter in the DBMS_CLOUD.CREATE_EXTERNAL_TABLE procedure takes a JSON object, which can be provided in two possible formats.
format => '{"format_option" : “format_value” }'
format => json_object('format_option' value 'format_value'))
The second format option has been used in the script below.
set define on
define base_URL = <paste SWIFT URL created above here>
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_TABLE(
table_name =>'WEATHER_REPORT_CSV',
credential_name =>'OBJ_STORE_CRED',
file_uri_list =>'&base_URL/Charlotte_NC_Weather_History.csv',
format => json_object('type' value 'csv', 'skipheaders' value '1',
'dateformat' value 'mm/dd/yy'),
column_list => 'REPORT_DATE DATE,
ACTUAL_MEAN_TEMP NUMBER,
ACTUAL_MIN_TEMP NUMBER,
ACTUAL_MAX_TEMP NUMBER,
AVERAGE_MIN_TEMP NUMBER,
AVERAGE_MAX_TEMP NUMBER,
AVERAGE_PRECIPITATION NUMBER'
);
END;
/
Let us breakdown and understand this script. We are invoking the “CREATE_EXTERNAL_TABLE” procedure in the DBMS_CLOUD API package. We are then providing the table name we want in our Data Warehouse, our user credentials (we created this in the pre-requisites), the object store file list that contains our data, a format JSON object that describes the format of our file to the API, and a list of named columns for our destination table.
The format parameter is a constructed JSON object with format options ‘type’ and ‘skipheaders’. The type specifies the file format as CSV, while skipheaders tells the API how many rows are metadata headers which should be skipped. In our file, that is 1 row of headers. The ‘dateformat’ parameter specifies the format of the date column in the file we are reading from; We will look at this parameter in more detailed examples below.
Great! If this was successful, we have our first external table. Once you have created an external table, it’s a good idea to validate that this external table structure works with your underlying data, before directly querying the table and possibly hitting a runtime error. Validating the table creates logs of any errors in case your external table was created incorrectly, which helps debug and fix any issues. Use the rowcount option in VALIDATE_EXTERNAL_TABLE if your data is large, to limit the validation to the specified number of rows.
BEGIN DBMS_CLOUD.VALIDATE_EXTERNAL_TABLE ( table_name => 'WEATHER_REPORT_CSV' ); END; /
If you do see errors during validation, follow Lab 3 Step 12 to troubleshoot them with the help of the log file. If required, you can also drop this table like you would any other table with the “DROP TABLE” command.

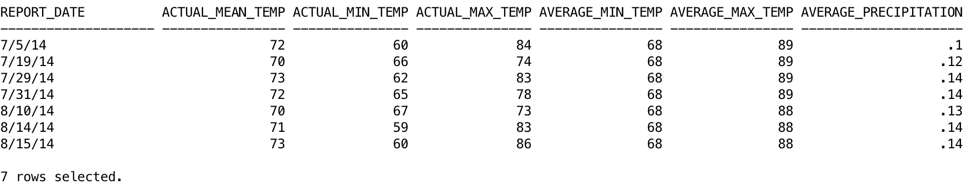

On running this validation without errors, you now have a working external table which sits on top of the data in your object store. You may now query and join the WEATHER_REPORT_CSV table as though it is any other table in your Data Warehouse! Let us find the days in our dataset during which it was pleasant in Charlotte.
SELECT * FROM WEATHER_REPORT_CSV where actual_mean_temp > 69 and actual_mean_temp < 74;
Tab Separated Value (TSV) Files

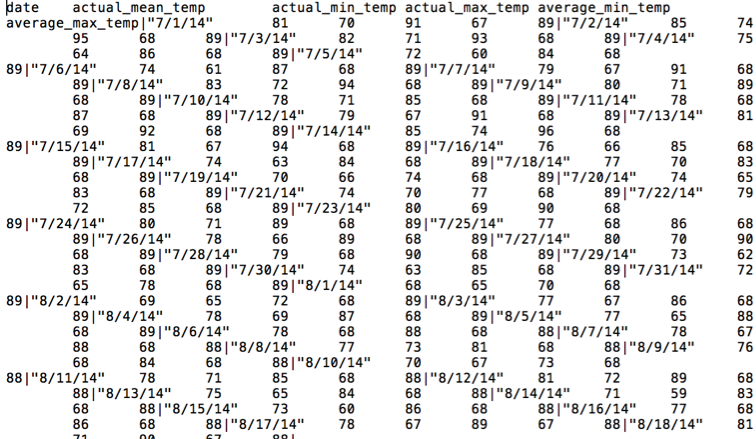

Another popular file format involves tab delimiters or TSV files. In the files you downloaded look for the Charlotte Weather History ‘.gz’ file. Unzip, open and have look at the “.tsv” file in it in a text editor as before. You will notice each row in this file is ended by a pipe ‘|’ character instead of a newline character, and the fields are separated by tabspaces. Oftentimes applications you might work with will output data in less intelligible formats such as this one, and so below is a slightly more advanced example of how to pass such data into DBMS_CLOUD.
Let’s run the following script:
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_TABLE (
table_name =>'WEATHER_REPORT_TSV',
credential_name =>'OBJ_STORE_CRED',
file_uri_list =>'&base_URL/Charlotte_NC_Weather_History.gz',
format => json_object('removequotes' value 'true',
'dateformat' value 'mm/dd/yy',
'delimiter' value '\t',
'recorddelimiter' value '''|''',
'skipheaders' value '1'),
column_list => 'REPORT_DATE DATE,
ACTUAL_MEAN_TEMP NUMBER,
ACTUAL_MIN_TEMP NUMBER,
ACTUAL_MAX_TEMP NUMBER,
AVERAGE_MIN_TEMP NUMBER,
AVERAGE_MAX_TEMP NUMBER,
AVERAGE_PRECIPITATION NUMBER'
);
END;
/
SELECT * FROM WEATHER_REPORT_TSV where actual_mean_temp > 69 and
actual_mean_temp < 74;

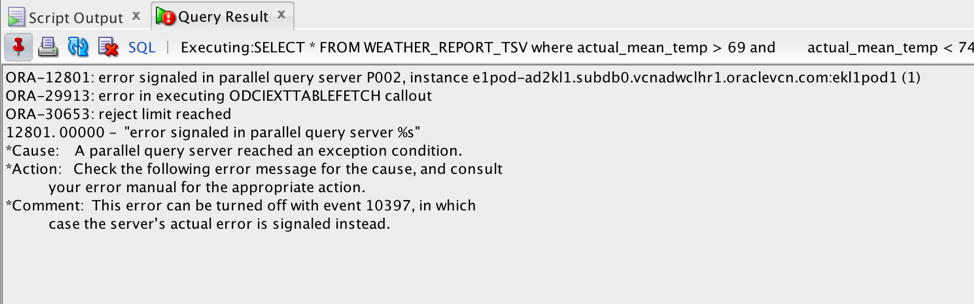

Whoops! You just hit a runtime error. An important lesson here is that we ran a query directly, without validating the external table like in the previous example. Thus we ran into an error even though the “CREATE_EXTERNAL_TABLE” went through without errors. This is because the “CREATE_EXTERNAL_TABLE” procedure simply creates a table structure (or metadata) over the data, but will not actually check to see whether the data itself is valid; That occurs at validation or runtime. Without validation, our only option would be to visually decipher the problem with the code.
Here’s the real working script this time:
DROP TABLE WEATHER_REPORT_TSV;
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_TABLE (
table_name =>'WEATHER_REPORT_TSV',
credential_name =>'OBJ_STORE_CRED',
file_uri_list =>'&base_URL/Charlotte_NC_Weather_History.gz',
format => json_object('ignoremissingcolumns' value 'true',
'removequotes' value 'true',
'dateformat' value 'mm/dd/yy',
'delimiter' value '\t',
'recorddelimiter' value '''|''',
'skipheaders' value '1',
'rejectlimit' value '1',
'compression' value 'gzip'),
column_list => 'REPORT_DATE DATE,
ACTUAL_MEAN_TEMP NUMBER,
ACTUAL_MIN_TEMP NUMBER,
ACTUAL_MAX_TEMP NUMBER,
AVERAGE_MIN_TEMP NUMBER,
AVERAGE_MAX_TEMP NUMBER,
AVERAGE_PRECIPITATION NUMBER'
);
END;
/
SELECT * FROM WEATHER_REPORT_TSV where actual_mean_temp > 69 and
actual_mean_temp < 74;
Let us understand the new parameters here, and why our previous script failed:
-
‘ignoremissingcolumns’ value ‘true’: Notice there is no data for the last column “AVERAGE_PRECIPITATION”. This parameter allows the create external table script to skip over columns from the column list, that have no data in the data file.
-
‘removequotes’ value ‘true’: The first column ‘date’ has data surrounded by double quotes. For this data to be converted to an Oracle date type, these quotes need to be removed. Note that when using the type parameter for CSV files as we did in the first example, this removequotes option is true by default.
-
‘dateformat’ value ‘mm/dd/yy’: If we expect a date column to be converted and stored into an Oracle date column (after removing the double quotes of course), we should provide the date column’s format. If we don’t provide a format, the date column will look for the database’s default date format. You can see the dateformat documentation here.
-
‘delimiter’ value ‘\t’: Fields in this file are tab delimited, so the delimiter we specify is the special character.
-
‘recorddelimiter’ value ”’|”’: Each record or row in our file is delimited by a pipe ‘|’ symbol, and so we specify this parameter which separates out each row. Note that unlike the delimiter parameter, the recorddelimiter must be enclosed in single quotes as shown here. A nuance here is that the last row in your dataset doesn’t need the record delimiter when it is the default newline character, however it does for other character record delimiters to indicate the end of that row. Also note that since ADW is LINUX/UNIX based, source data files with newline as record delimiters, that have been created on Windows, must use “\r\n” as the format option. Both these nuances will likely have updated functionality in future releases.
-
‘rejectlimit’ value ‘1’: We need this parameter here to fix an interesting problem. Unlike with the newline character, if we don’t specify a pipe record delimiter here at the very end of the file, we get an error because the API doesn’t recognize where the last row’s, last column ends. If we do specify the pipe record delimiter however, the API expects a new line because the record has been delimited, and we get a null error for the last non-existent row. To fix situations like this, where we know we might have one or more problem rows, we use the reject limit parameter to allow some number of rows to be rejected. If we use ‘unlimited’ as our reject limit, then any number of rows may be rejected. The default reject limit is 0.
-
‘compression’ value ‘gzip’: Notice the .tsv file is zipped into a gzip “.gz” file, which we have used in the URL. We use this parameter so the file will be unzipped appropriately before the table is created.

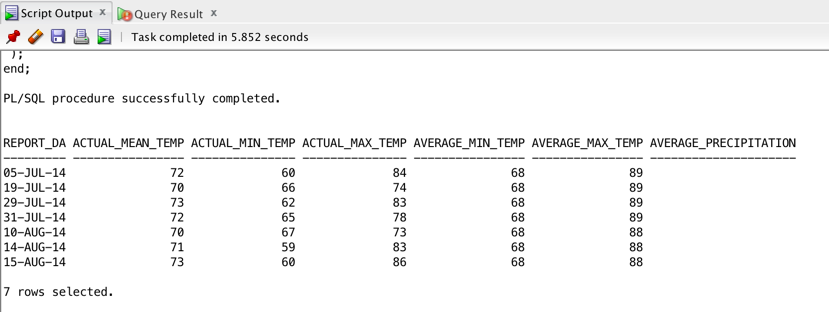

As before, once this is successful, the external table structure has been created on top of the data in the object store. It may be validated using the VALIDATE_EXTERNAL_TABLE procedure. In the script above we have already queried it as a table in your Data Warehouse.
Field Lists – For more Granular parsing options:
A more advanced feature of the DBMS_CLOUD.CREATE_EXTERNAL_TABLE is the Field_List parameter, which borrows it’s feature set from the Field_List parameter of the Oracle Loader access driver. This parameter allows you to specify more granular information about the fields being loaded. For example, let’s use “Charlotte_NC_Weather_History_Double_Dates.csv” from the list of files in our object store. This file is similar to our first CSV example, except it has a copy of the date column in a different date format. Now, if we were to specify a date format in the format parameter, it would apply to universally to all date columns. With the field_list parameter, we can specify two different date formats for the two date columns. We do need to list all the columns and their types when including the field_list; Not mentioning any type parameters simply uses default Varchar2 values.
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_TABLE (
table_name =>'WEATHER_REPORT_DOUBLE_DATE',
credential_name =>'OBJ_STORE_CRED',
file_uri_list =>'&base_URL/Charlotte_NC_Weather_History_Double_Dates.csv',
format => json_object('type' value 'csv', 'skipheaders' value '1'),
field_list => 'REPORT_DATE DATE ''mm/dd/yy'',
REPORT_DATE_COPY DATE ''yyyy-mm-dd'',
ACTUAL_MEAN_TEMP,
ACTUAL_MIN_TEMP,
ACTUAL_MAX_TEMP,
AVERAGE_MIN_TEMP,
AVERAGE_MAX_TEMP,
AVERAGE_PRECIPITATION',
column_list => 'REPORT_DATE DATE,
REPORT_DATE_COPY DATE,
ACTUAL_MEAN_TEMP NUMBER,
ACTUAL_MIN_TEMP NUMBER,
ACTUAL_MAX_TEMP NUMBER,
AVERAGE_MIN_TEMP NUMBER,
AVERAGE_MAX_TEMP NUMBER,
AVERAGE_PRECIPITATION NUMBER'
);
END;
/
SELECT * FROM WEATHER_REPORT_DOUBLE_DATE
where actual_mean_temp > 69 and actual_mean_temp < 74;

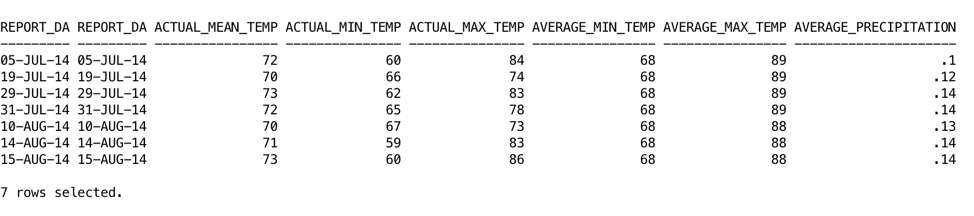

It’s important to recognize that the date format parameters are to provide the API with the information to read the data file. The output format from your query will be your Database default (based on your NLS Parameters). This can also be formatted in your query using TO_CHAR.
JSON Files

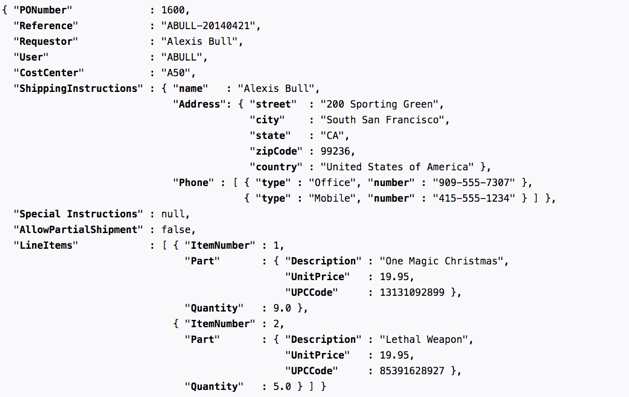

You may be familiar with JSON files for unstructured and semi-structured data. The “PurchaseOrders.txt” file contains JSON Purhcase Order data, which when parsed and formatted looks like the following.
Using JSON data in an ADW instance can be as simple as putting each JSON document into a table row as a BLOB, and using the powerful, native JSON features that the Oracle Database provides to parse and query it. You can also view the JSON documentation for additional features here.
Let’s try this! Copy and run the script below:
BEGIN DBMS_CLOUD.CREATE_EXTERNAL_TABLE ( table_name =>'JSON_FILE_CONTENTS', credential_name =>'OBJ_STORE_CRED', file_uri_list =>'&base_URL/PurchaseOrders.txt', column_list => 'json_document blob', field_list => 'json_document CHAR(5000)' ); END; / COLUMN Requestor FORMAT A30 COLUMN ShippingInstructions FORMAT A30 SELECT JSON_VALUE(json_document,'$.Requestor') as Requestor, JSON_VALUE(json_document,'$.ShippingInstructions.Address.city') as ShippingInstructions FROM JSON_FILE_CONTENTS where rownum < 50;

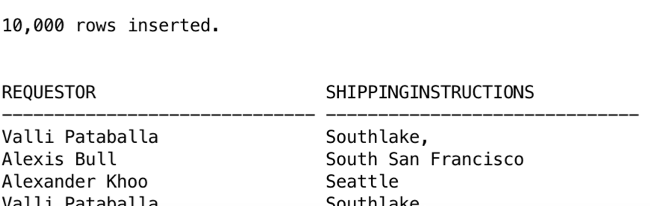

The query above lists all the PO requestors and the city where their shipment is to be delivered. Here, we have simply created one column ‘json_document’ in the external table ‘JSON_FILE_CONTENTS’. We do not incur the time it takes to validate these JSON document, and are instead directly querying the external table using the Database’s JSON_VALUE feature. This means the check for well-formed JSON data will be on the fly, which would fail unless you properly skip over the failed data. Here, ‘VALIDATE_EXTERNAL_TABLE’ will not check for valid JSON data, but will simply check that the data is of the correct native datatype (less than 5000 characters long), that is the datatype of the table’s column.
For better performance on large JSON data files, using this external table we can also make use of the Database’s JSON features to parse and insert the JSON data into a new table ‘j_purchaseorder’ ahead of time, as below. Note that this insert statement actually brings the data into your ADW instance. You benefit from doing this as it checks to make sure your JSON data is well-formed and valid ahead of time, and therefore incur less of a performance impact when you query this JSON data from your ADW instance.
CREATE TABLE j_purchaseorder (id VARCHAR2 (32) NOT NULL, date_loaded TIMESTAMP (6) WITH TIME ZONE, po_document BLOB CONSTRAINT ensure_json CHECK (po_document IS JSON)); INSERT INTO j_purchaseorder (id, date_loaded, po_document) SELECT SYS_GUID(), SYSTIMESTAMP, json_document FROM json_file_contents WHERE json_document IS JSON;We can now query down JSON paths using the JSON simplified syntax as with the following query:
SELECT po.po_document.Requestor, po.po_document.ShippingInstructions.Address.city FROM j_purchaseorder po;
Copying Data into your Autonomous Data Warehouse
Here, we’ve gone through examples to access your object store data via external tables in your ADW. In following posts, I will walk you through examples on how to use the DBMS_CLOUD.COPY_DATA API to copy that data from your files directly into your Data Warehouse, as well as how to diagnose issues while loading your ADW with data using the bad and log files. See you in the next one!
