Deep dive into various configurations with Oracle Weblogic Server

  • May 30, 2016

Steps to create partitions in WLS 12.2.1

Puneeth Prakash
Principal Software Engineer

Below are the steps to create partitions in Weblogic Server 12.2.1 :

Step 1 :

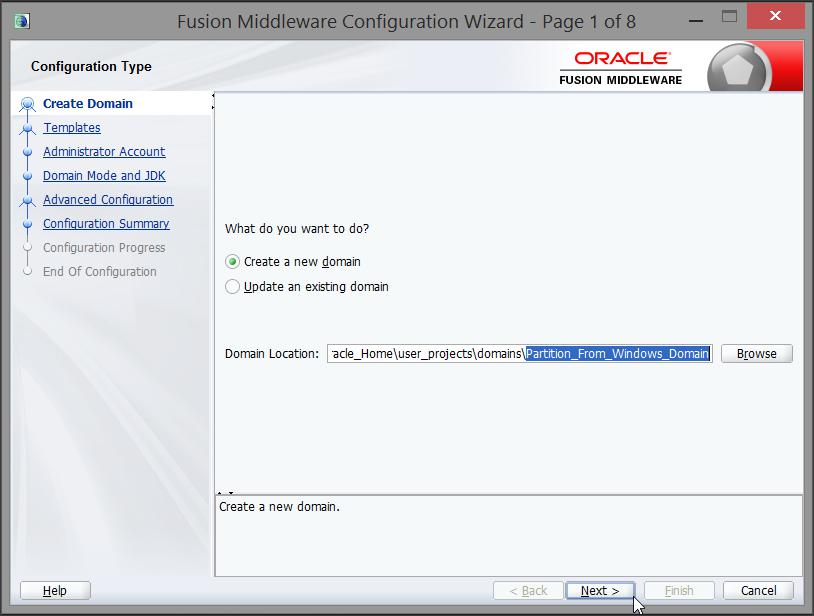

- Create a weblogic domain (say Partition_From_Windows_Domain)

FMW control is the recommended console for Partition management, so it is good to enable it at the time of  domain creation.

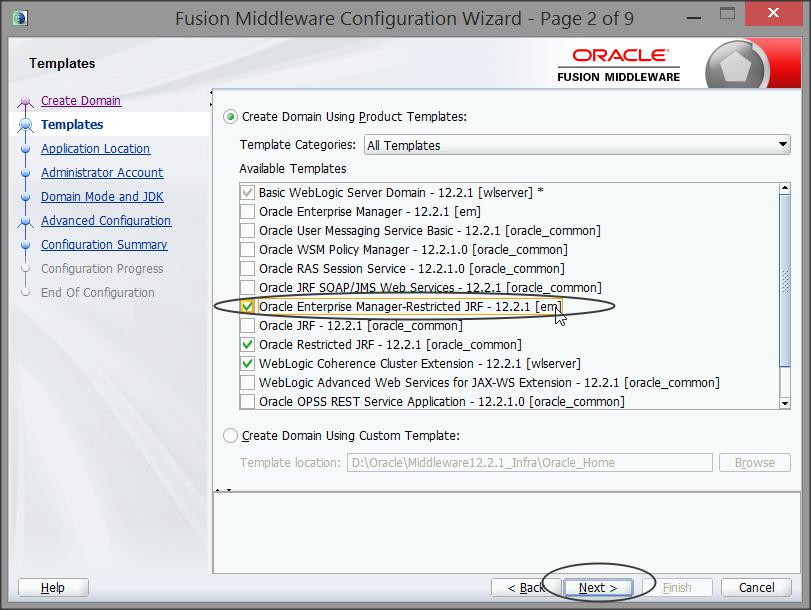

To enable FMW control select "Oracle Enterprise Manager-Restricted JRF - 12.2.1 [em]" template in the configuration wizard, as shown below :

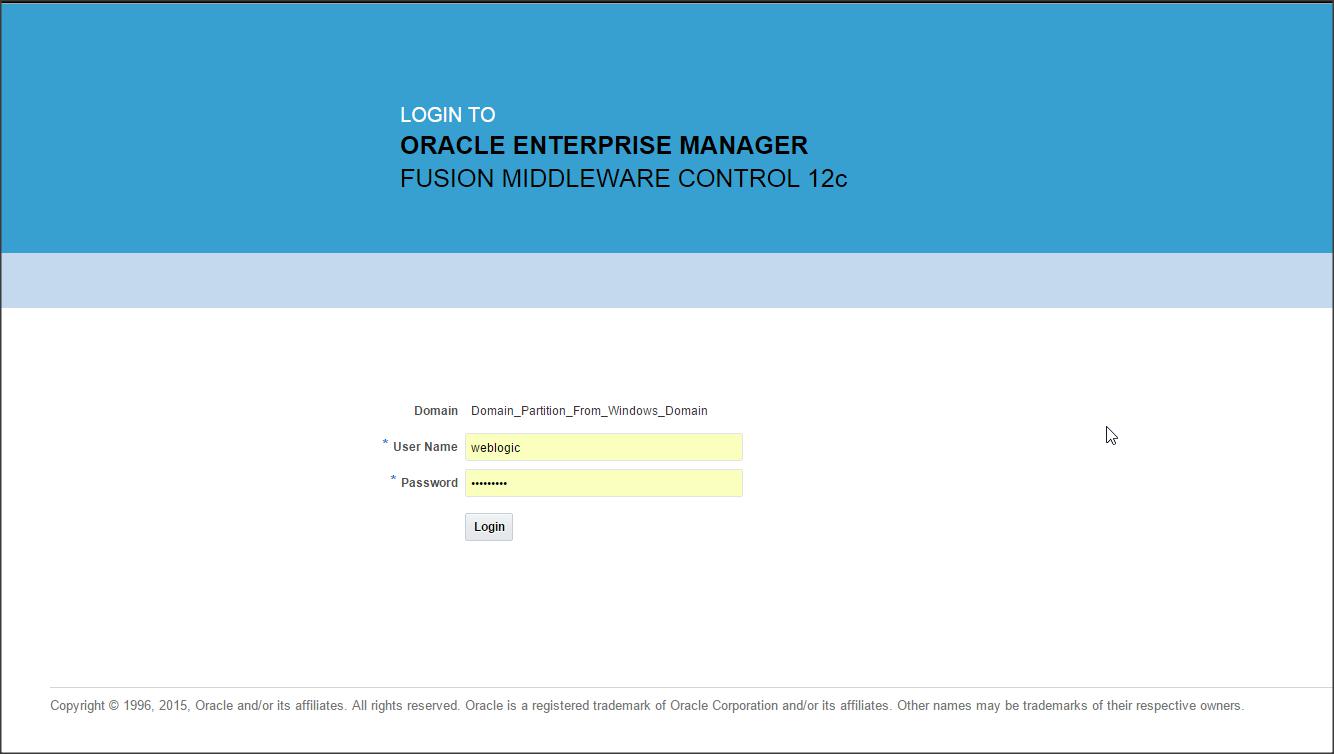

To access FMW control access : http://<host>:<port>/em

NOTE : We will continue using Weblogic Admin console to create partitions in this example.

Partition names : coke-partition and pepsi-partition

Partition specific realms : coke_realm and pepsi_realm

Partition specific Admin Users : coke_admin and pepsi_admin

Virtual Targets for these partitions : coke-vt and pepsi-vt

Partition Specific Resource Groups : coke-rg1 and pepsi-rg1

Step 2 :

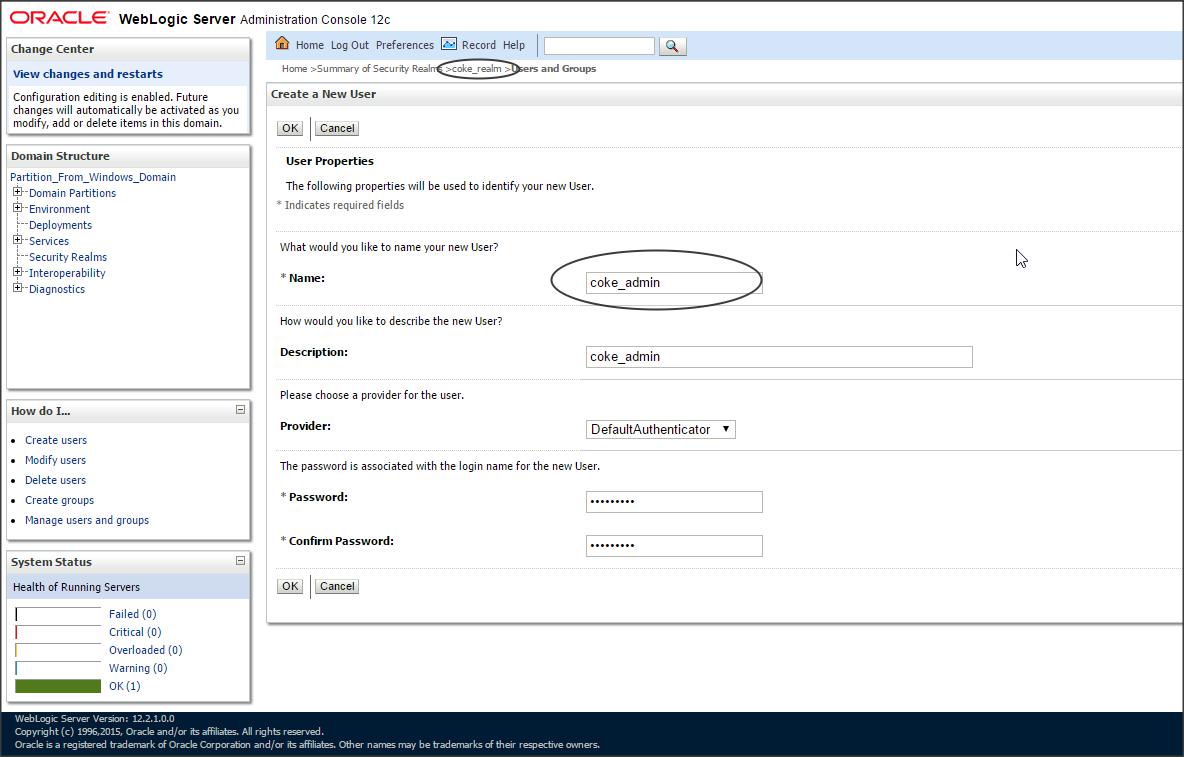

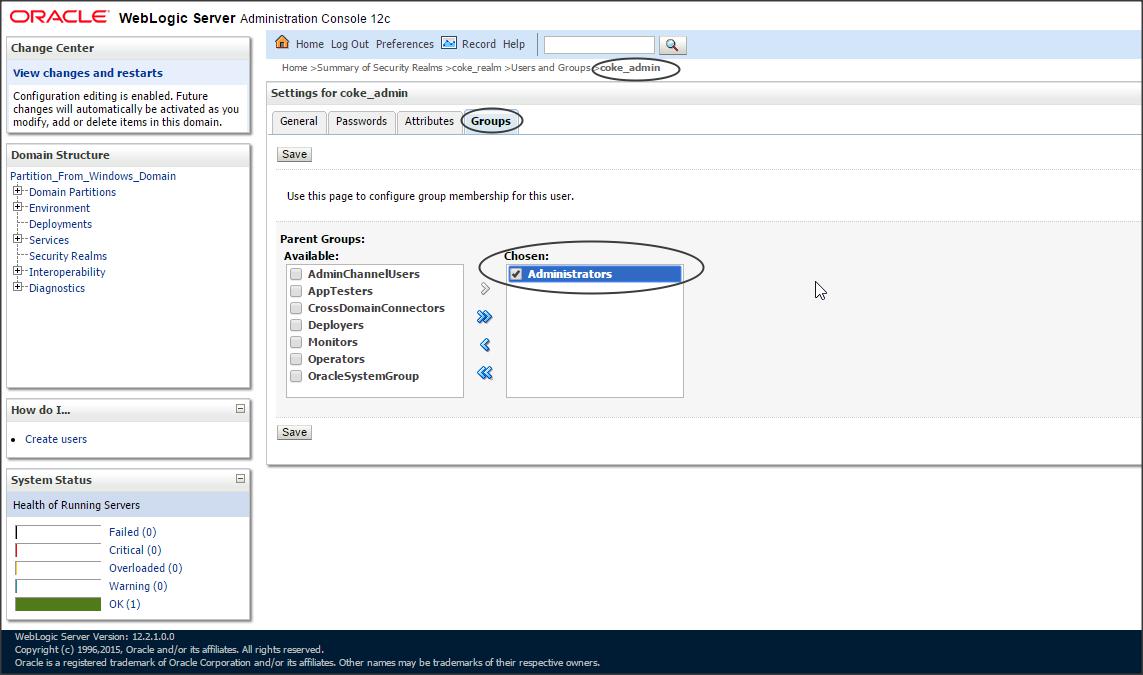

Before creating a partition, you need to create a security realm (then create an Admin user inside this realm, say coke_admin and pepsi_admin) and virtual target for this partition :

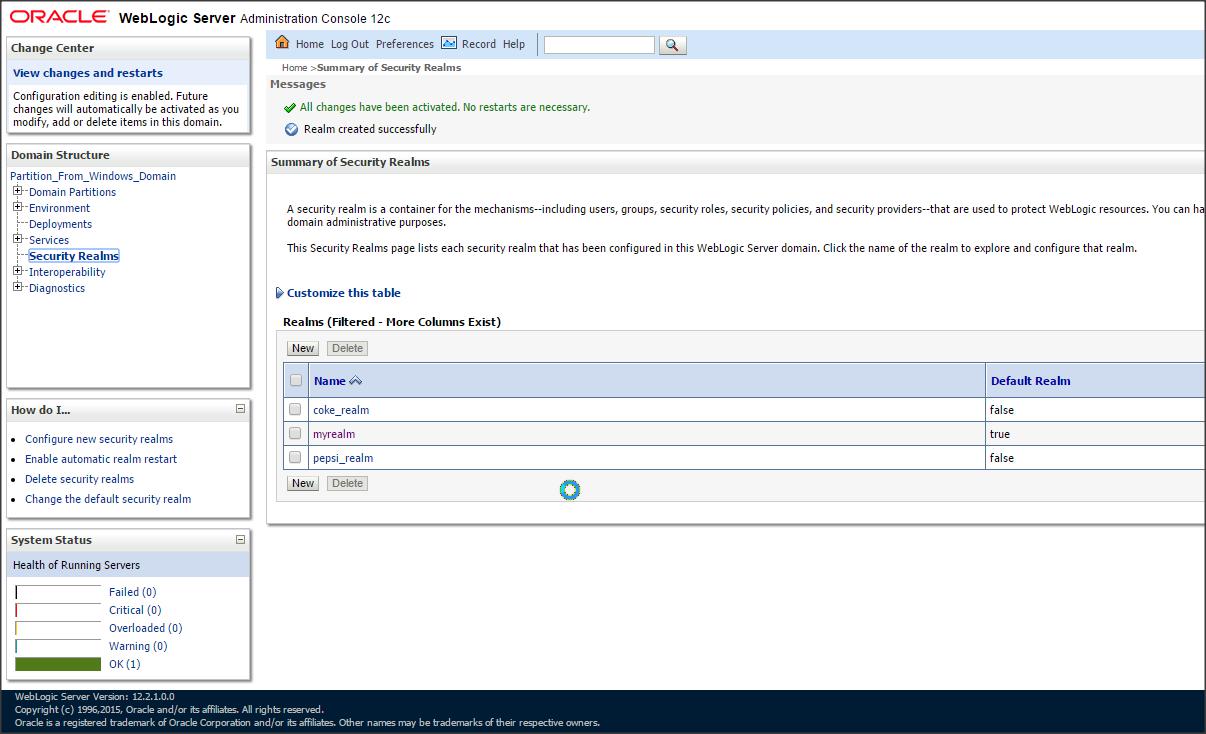

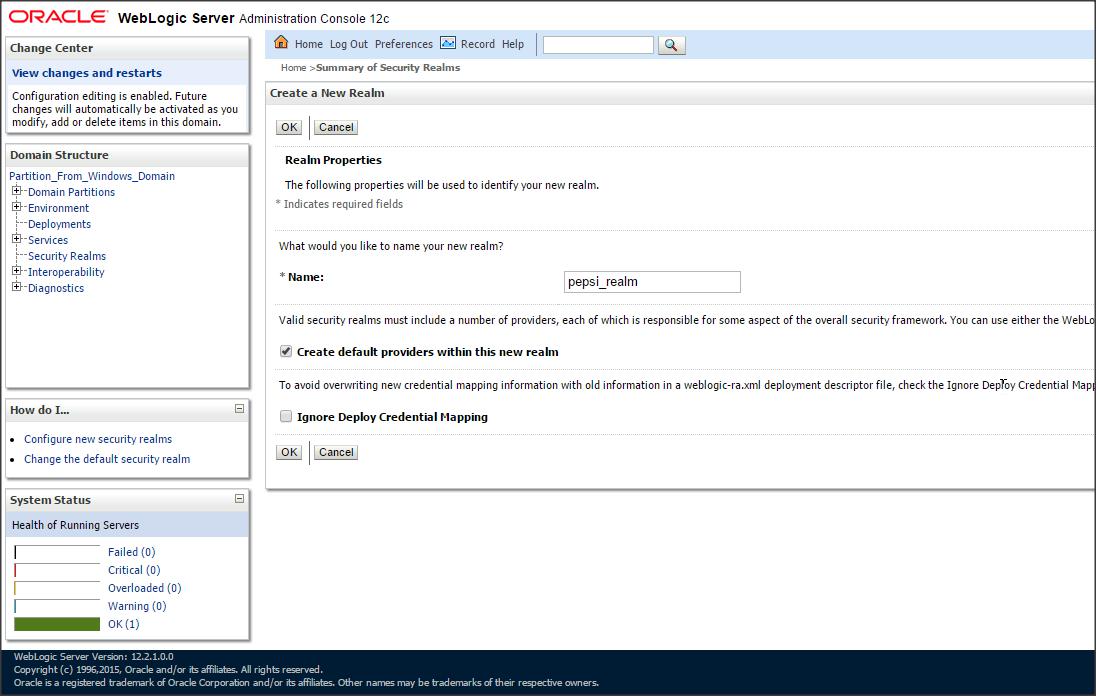

To create a new security realm :

Login to console -> Security Realms -> new (say 'coke_realm' and 'pepsi_realm') -> "create default providers within this new realm" (check)

Now create a Virtual target :

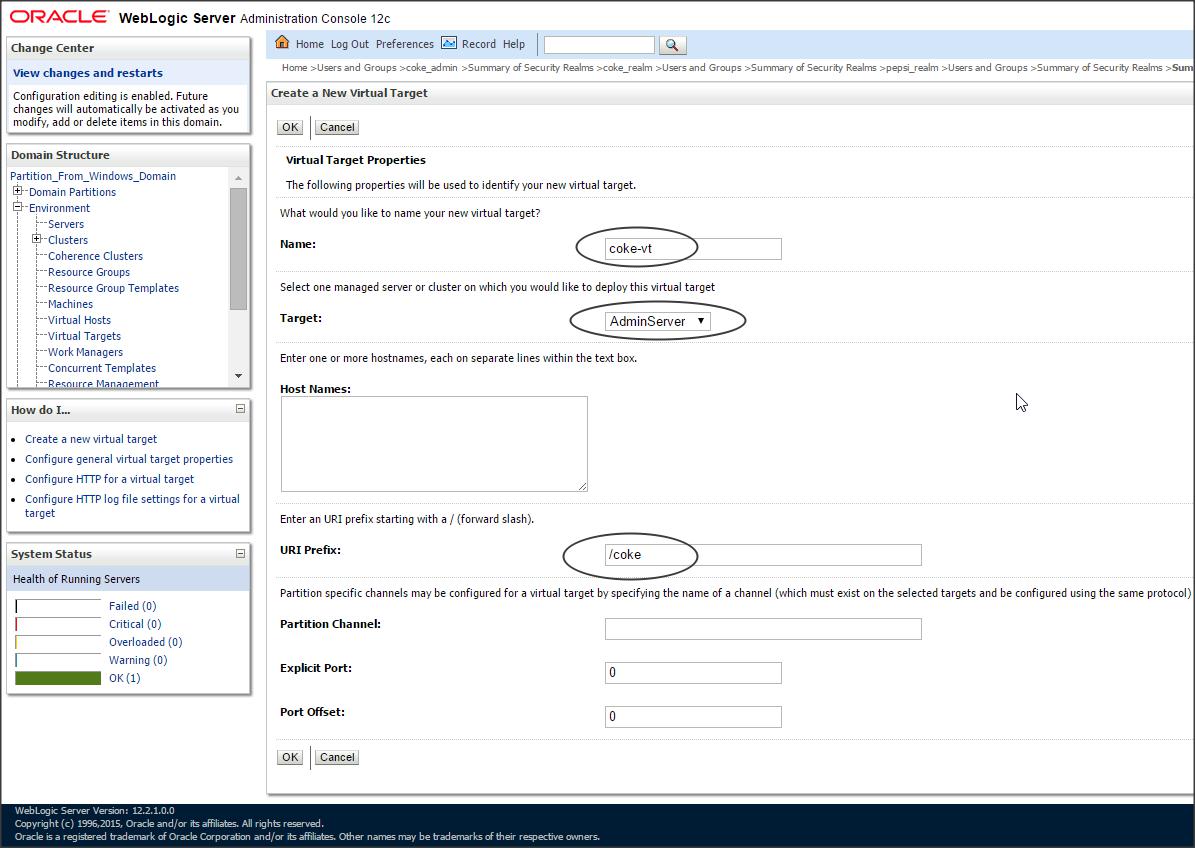

Login to console -> + Environment -> Virtual Targets -> new (say coke-vt) and target it to Weblogic Server (say Admin Server) -> specify a URI Prefix

Step 3 :

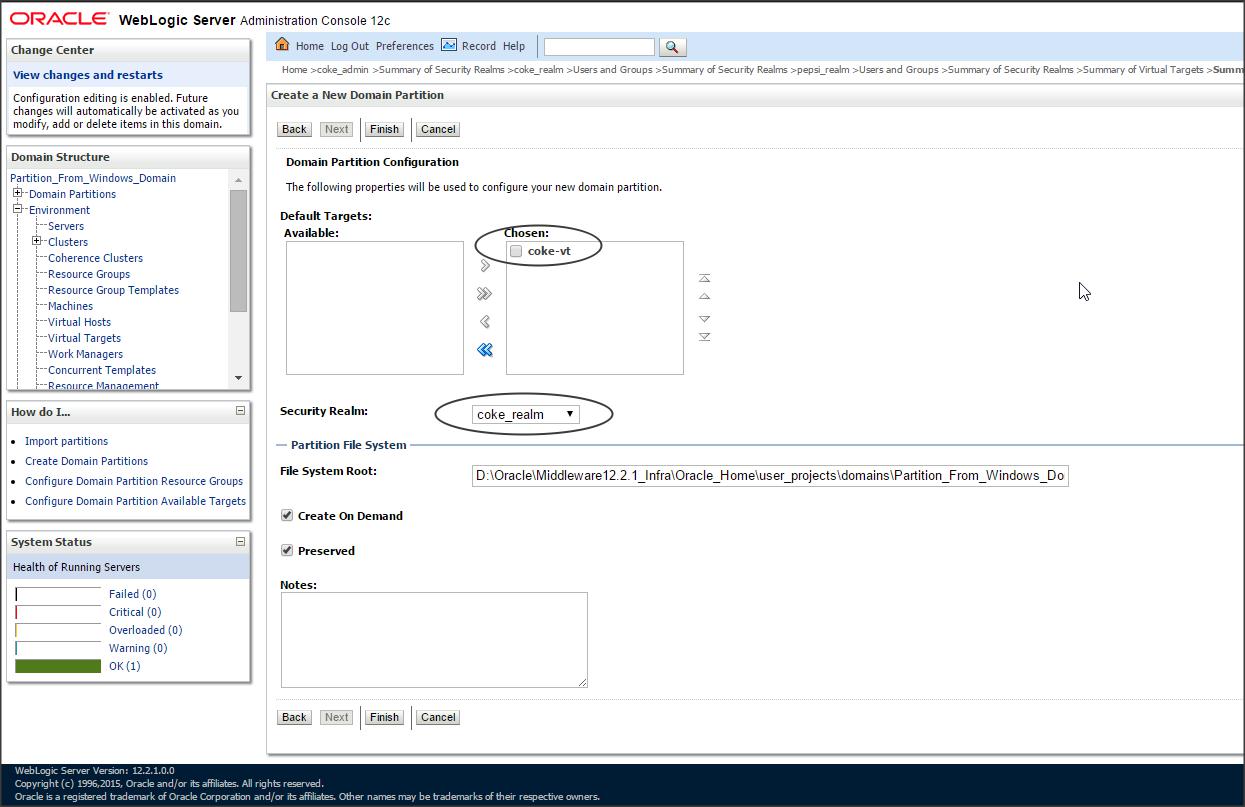

Lets create a partition now :

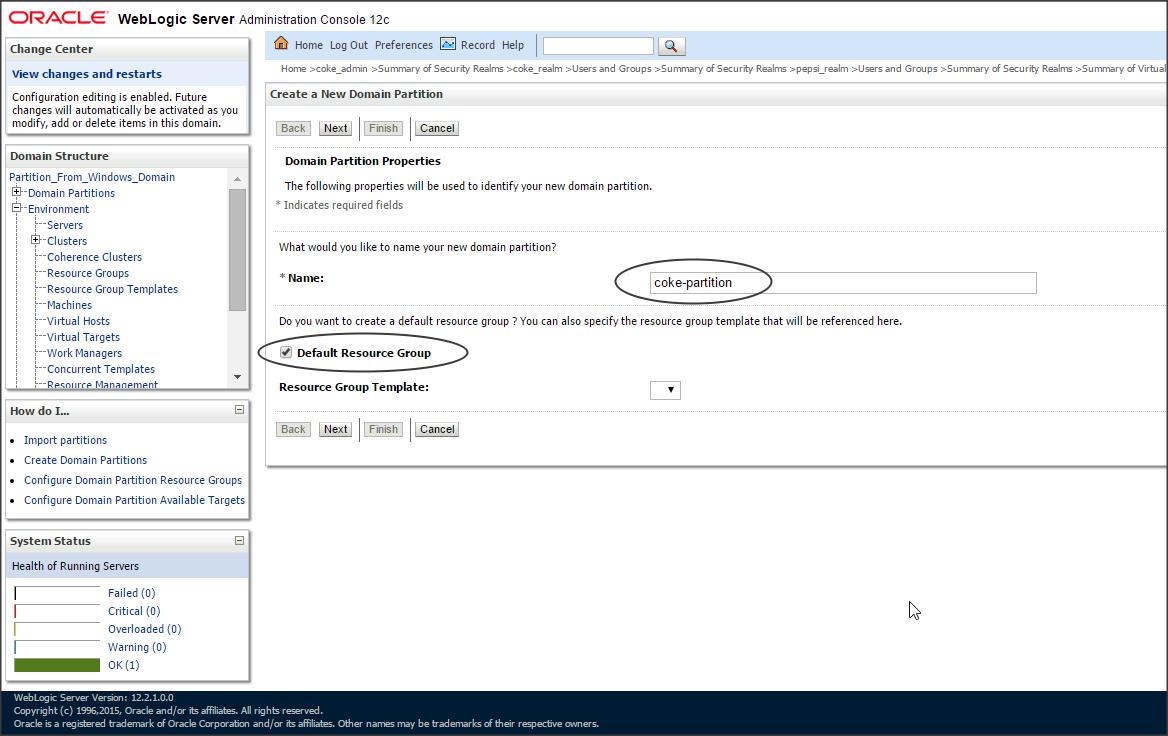

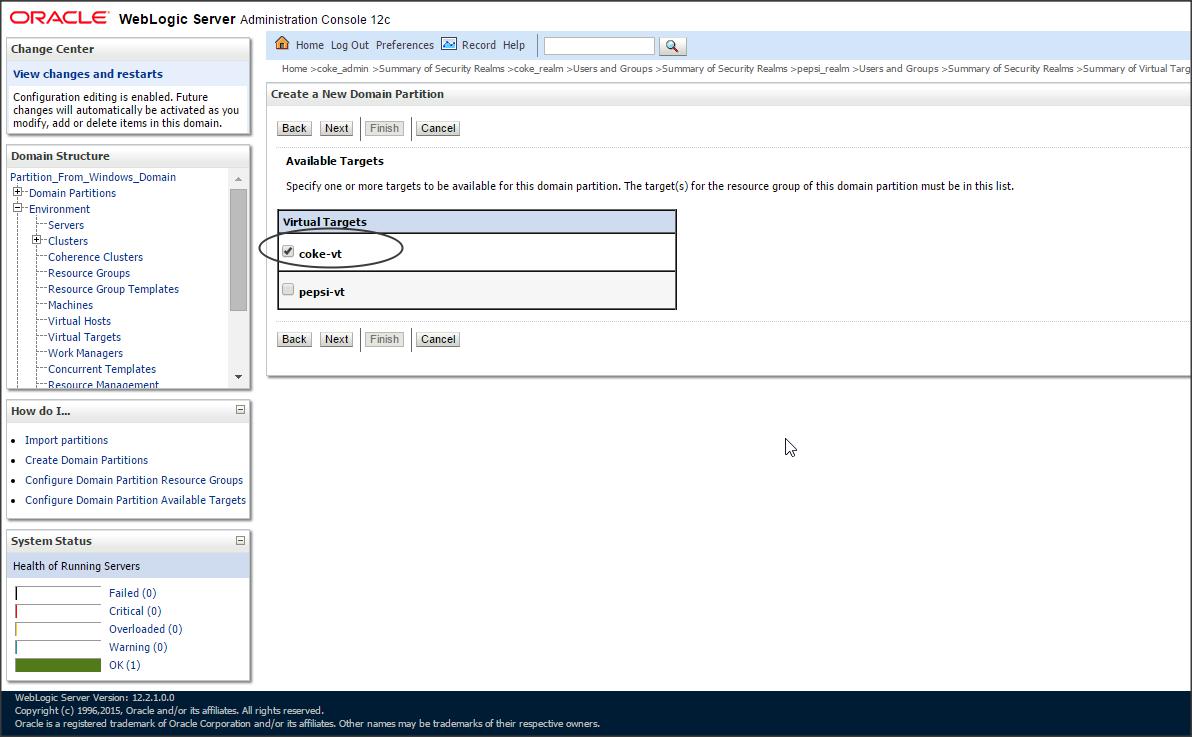

Login to console -> Domain Partitions -> new (say coke-partition)-> then target it to a Virtual target (say coke-vt) -> select the security realm for this partition from the drop down menu (say coke_realm)

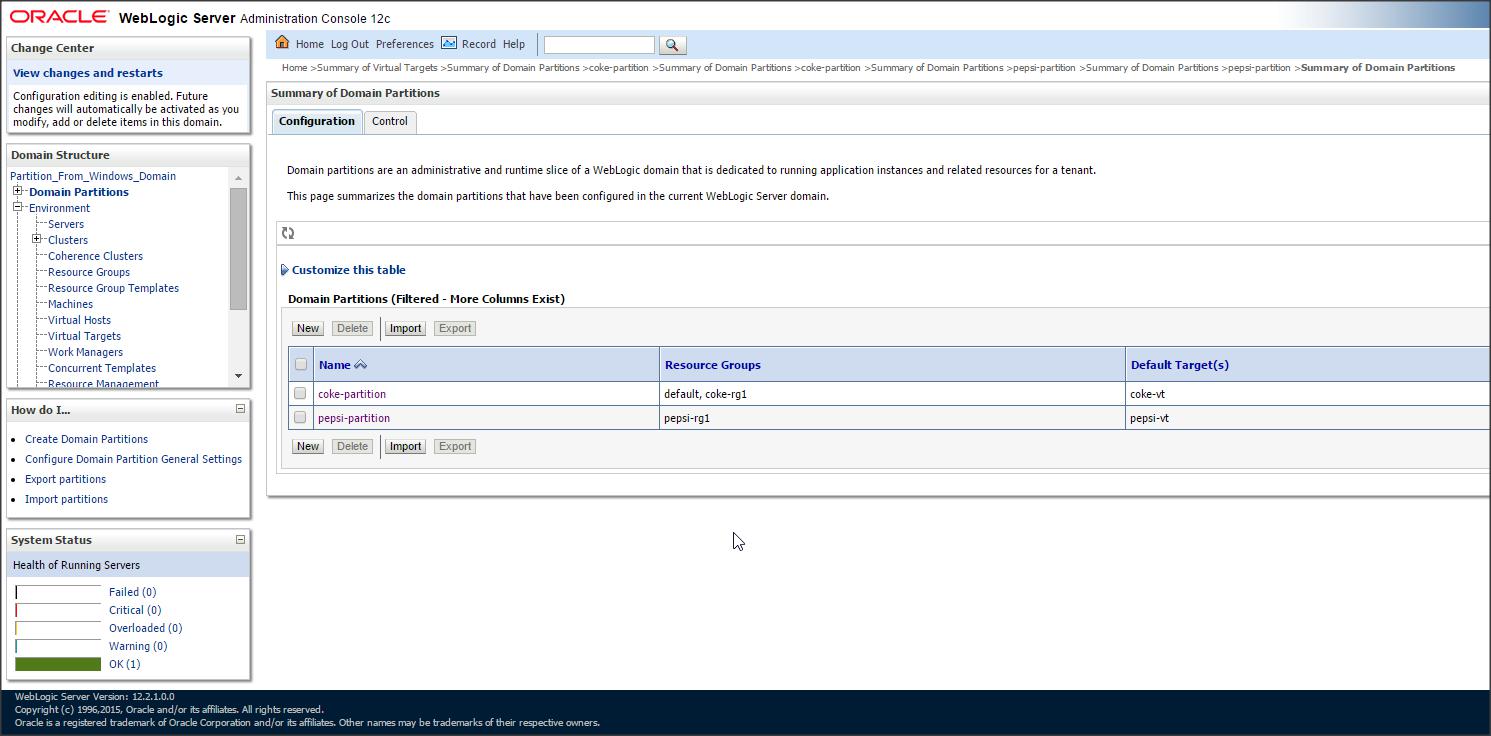

 Step 4 :

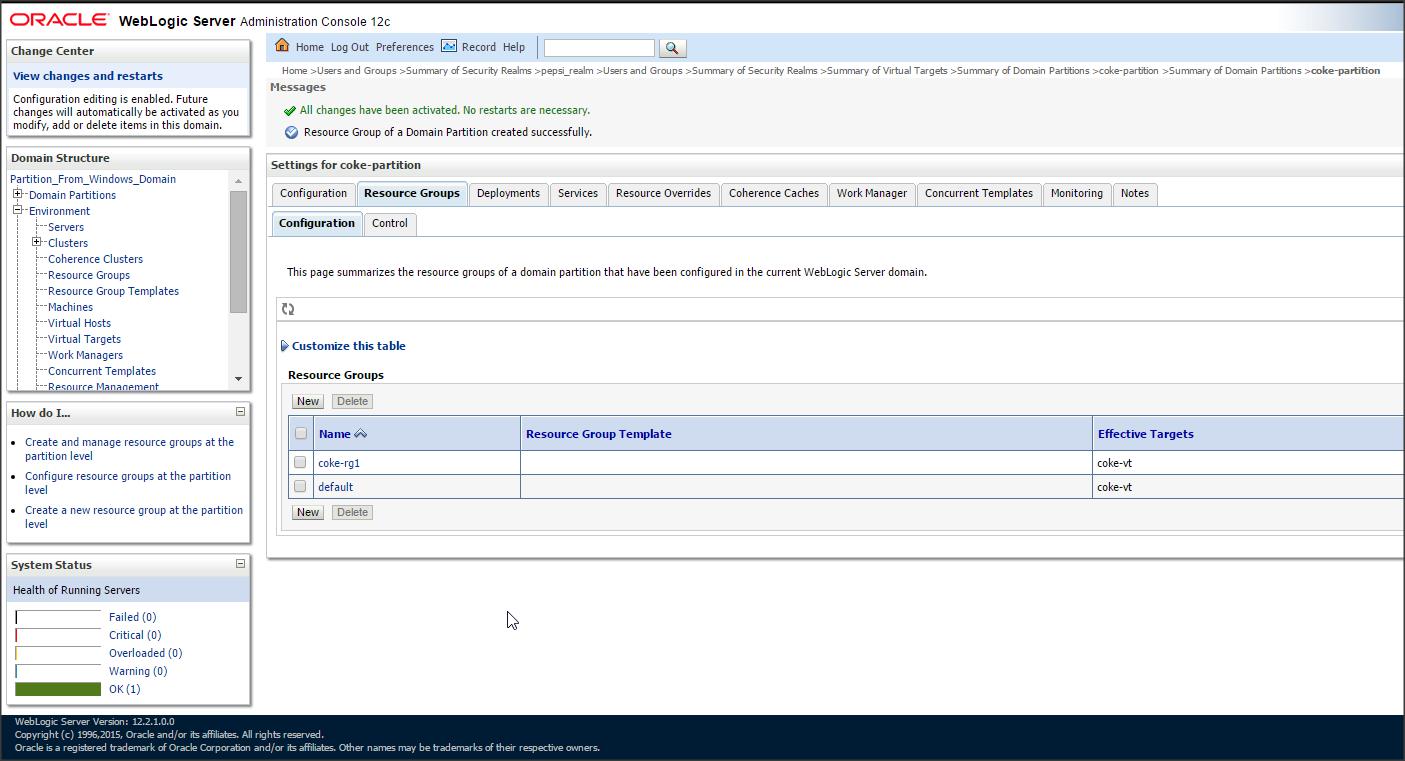

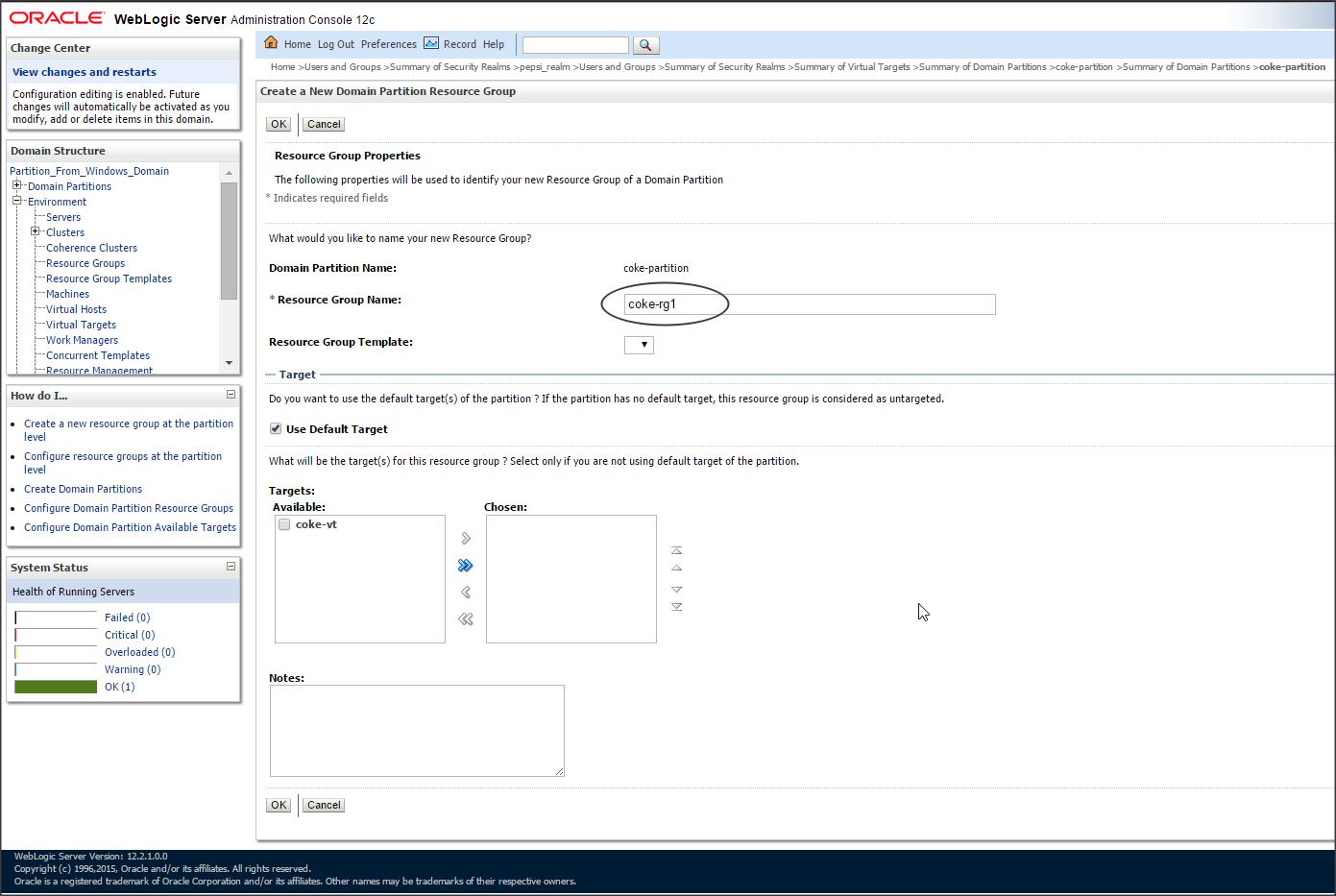

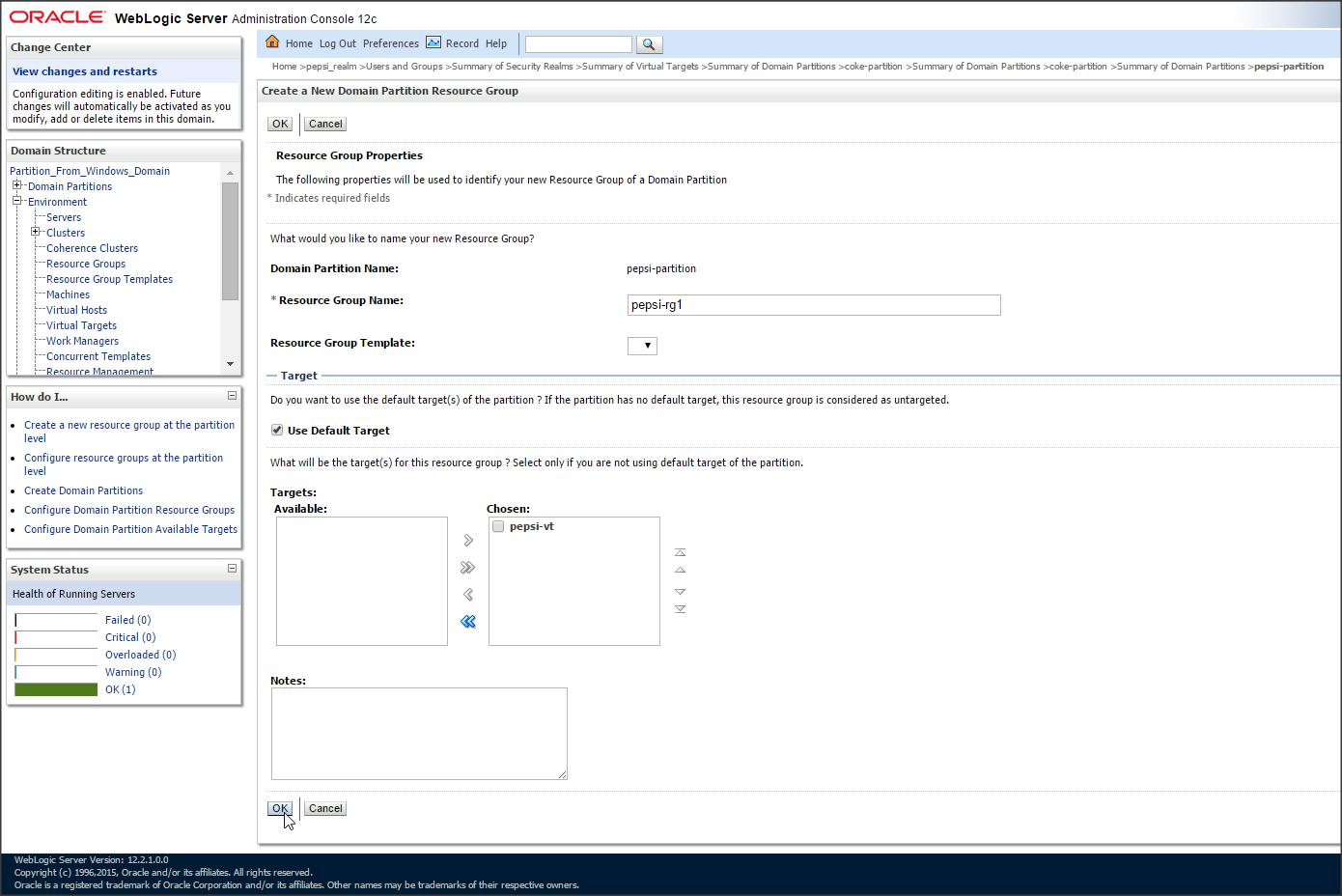

Create a Resource Group inside domain partition


 Step 5 :

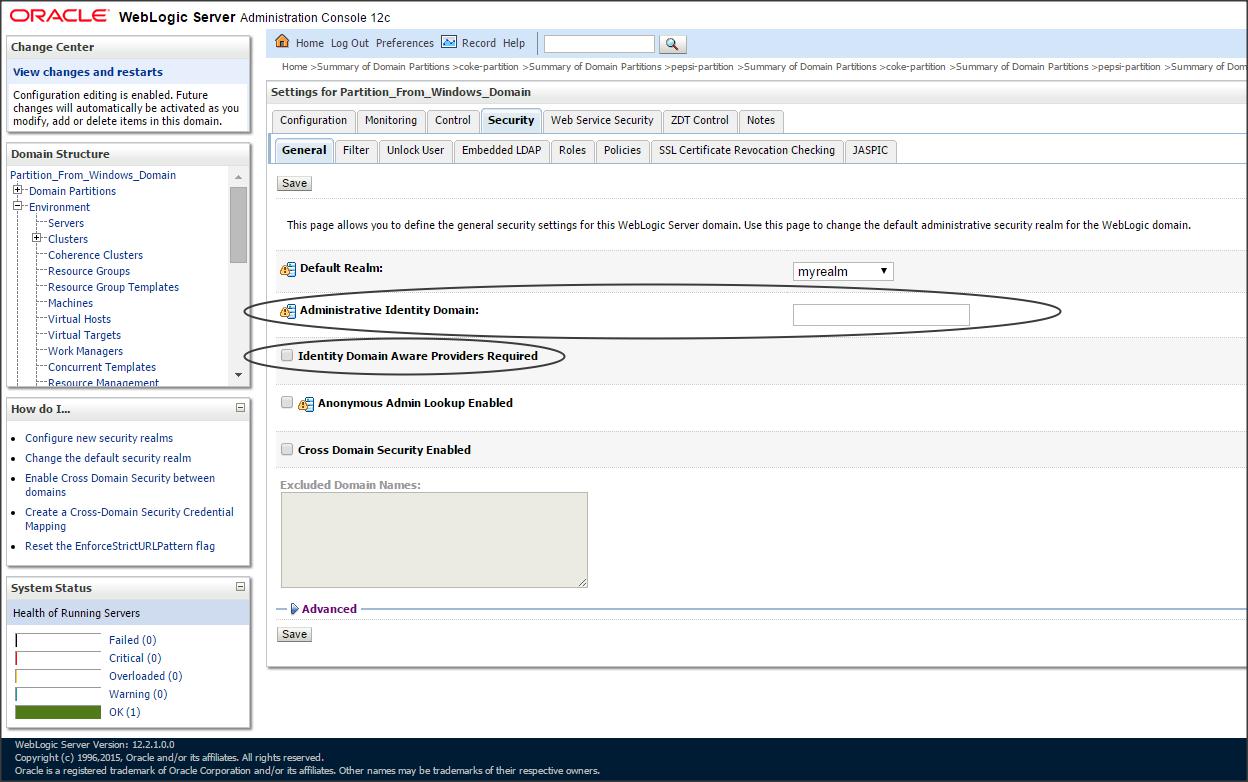

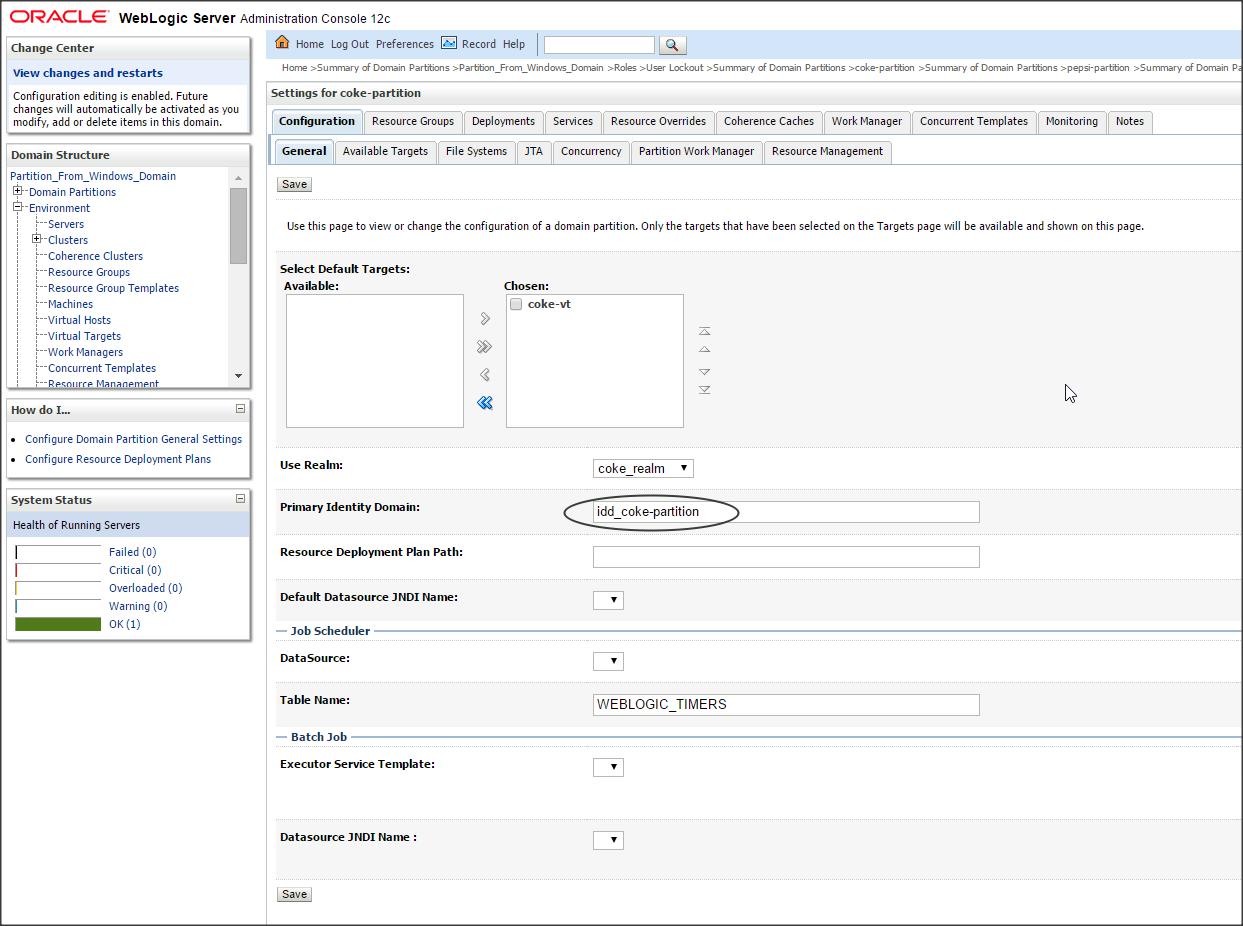

Check the Identity Domains of the partitions :

Step 6 :

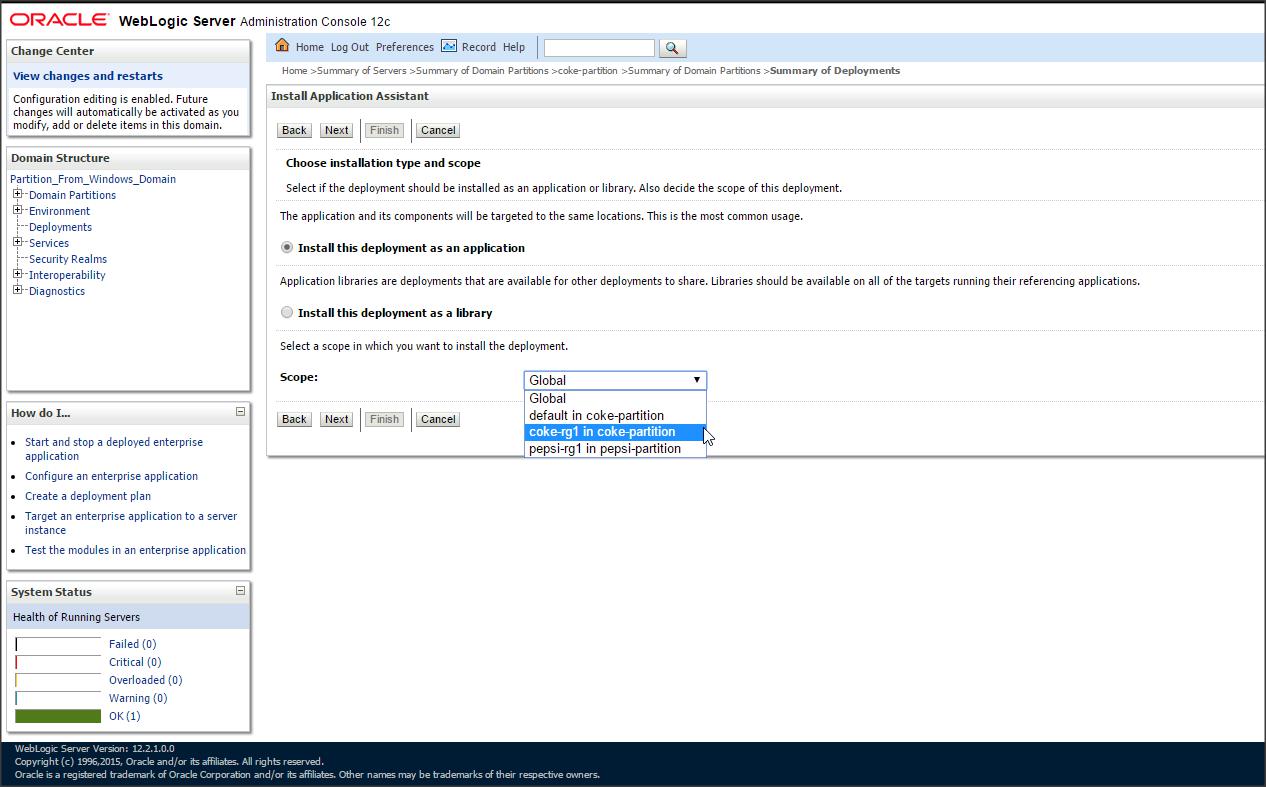

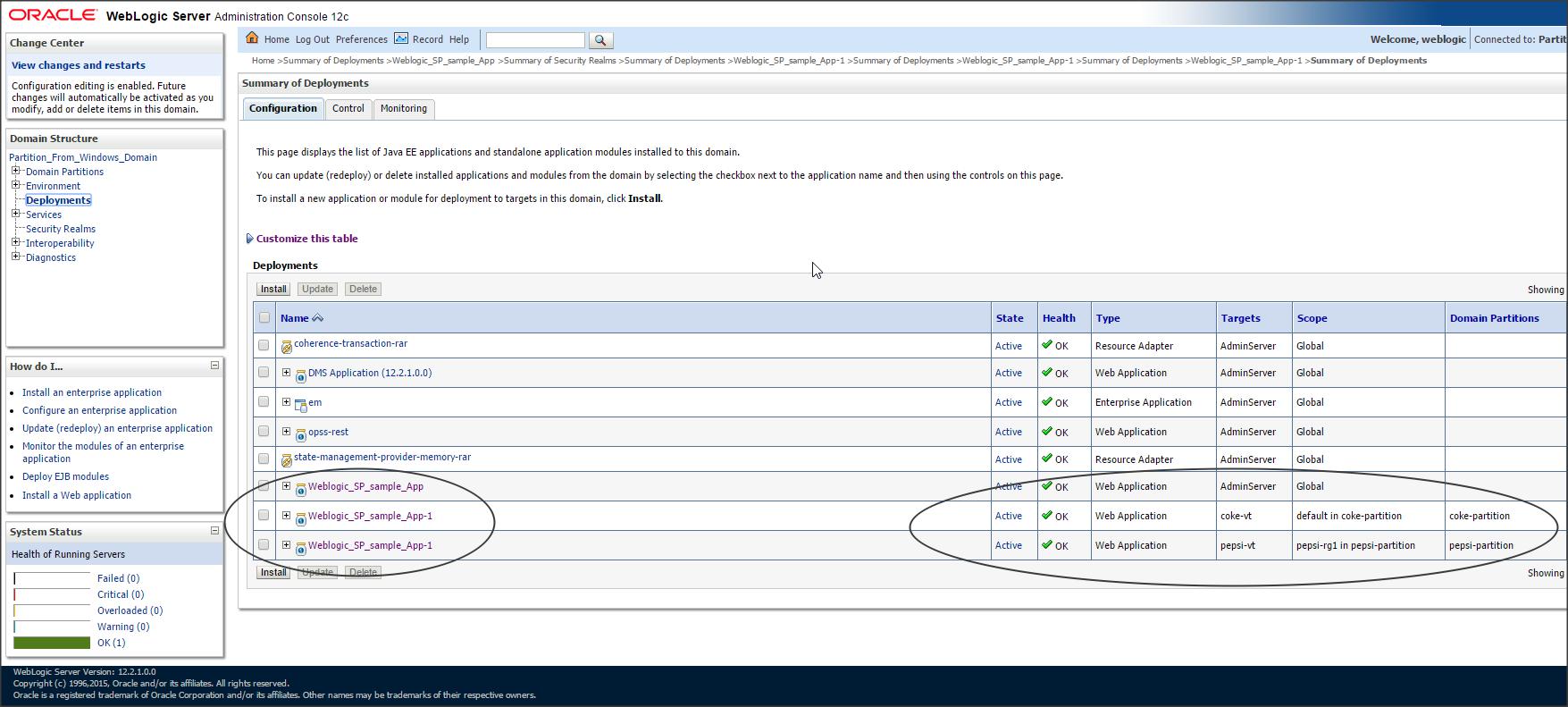

You can now deploy applications to Global scope / to a resource group of a partition

To access the application deployed to your partition use the following URL :

http://<host>:<port>/coke/Weblogic_SP_sample_App/login.jsp  ==> Try to login with the coke Admin and also test the login using weblogic user.

Perform similar tests with application deployed on pepsi-partition and global scoped deployment.
