Monday Oct 26, 2015

Oracle BI Publisher 12c released !!

Greetings !!

We now have Oracle BI Publisher 12c ( available. You will be able to get the download, documentation, release notes and certification information in BI Publisher OTN home page. The download is also available from Oracle Software Delivery Cloud. This release is part of Fusion Middleware 12c release that includes

  • Oracle WebLogic Server 12c (
  • Oracle Coherence 12c (
  • Oracle TopLink 12c (
  • Oracle Fusion Middleware Infrastructure 12c (
  • Oracle HTTP Server 12c (
  • Oracle Traffic Director 12c (
  • Oracle SOA Suite and Business Process Management 12c (
  • Oracle MapViewer 12c (
  • Oracle B2B and Healthcare 12c (
  • Oracle Service Bus 12c (
  • Oracle Stream Explorer 12c (
  • Oracle Managed File Transfer 12c (
  • Oracle Data Integrator 12c (
  • Oracle Enterprise Data Quality 12c (
  • Oracle GoldenGate Monitor and Veridata 12c (
  • Oracle JDeveloper 12c (
  • Oracle Forms and Reports 12c (
  • Oracle WebCenter Portal 12c (
  • Oracle WebCenter Content 12c (
  • Oracle WebCenter Sites 12c (
  • Oracle Business Intelligence 12c (

For BI Publisher this is primarily an infrastructure upgrade release to integrate with WebLogic Server 12c, Enterprise Manager 12c, FMW infrastructure 12c. There are still some important enhancements and new features in this release:

  1. Scheduler Job Diagnostics: This feature is primarily to help with custom report designs and for production job analysis. A report author during design time can view SQL Explain Plan and data engine logs to diagnose report performance and other issues. This will also help in diagnostics of a job in production.
  2. Improved handling of large reports online: Large reports are always recommended to be run as scheduled job. However, there are scenarios where in a few reports vary in size from one user to another. For most end users the report may be just a few pages, but for few end users the same report may run into thousands of pages. Such reports are generally designed to be viewed online and sometimes such large reports end up causing stuck thread issue on Weblogic Server. This release enhances the user experience by providing the user an ability to cancel the processing of a large report. Also, the enhanced design will no longer cause any stuck thread issue.
  3. Schedule Job Output view control: Administrators can now hide the "make output public" option from the report job schedulers (Consumer Role) to prevent public sharing of report output.

The installation of BI Publisher will be a very different experience in this release. The entire installation effort has been divided into the following steps:

  1. Prepare
    • Install Java Developers Kit 8 (JDK8)
    • Run Infrastructure installer fmw_12. This will install Web Logic Server 12c
  2. Install BI
    • Launch installation by invoking executable ./bi_platform-
  3. Configure BI
    • Run Configuration Assistant
  4. Post Installation Tasks
    • Setting up Datasources
    • Setting up Delivery Channels
    • Updating Security - LDAP, SSO, roles, users, etc.
    • Scaling out

Upgrade from the 11g environment to the 12c environment is an out-of-place migration, where you would basically migrate the Business Intelligence metadata and configuration from the Oracle 11g instance to the new 12c instance. For the migration procedure, see Migration Guide for Oracle Business Intelligence.

For rest of the details please refer to the documentation here. Happy exploring BI Publisher 12c !!

Monday Oct 19, 2015

PDF417 for E-Business Suite

A while back I wrote up a how to on 2D barcode formats. I kept things generic and covered the basics of getting the barcodes working.  Tony over in Bahrain (for we are truly international :) has had a tough time getting it working under EBS. Mostly to do with the usual bug bear of the JAVA_TOP, XX_TOP and getting class paths set up. Its finally working and Tony wanted to share a document on the 'how' to get PDF417s working under EBS.

Document available here.

Thanks for sharing Tony!

Friday Oct 09, 2015

Orphan Table Rows ... ugh!

This week, orphaned table rows and how to avoid them.

Its a bit more subtle than rows breaking across a page border and the solution is a doozy!

Im using another video to demonstrate because

  1. I don't have to type and grab screen shots, even thou I have one above
  2. Its faster and more easily understood, even in my umming and erring English.
  3. I'm hip and happening and video help is the future kids!
  4. You get to hear my Southern (England) drawl; a great sleep aid for insomniacs!

Here it is. You might want to 'fullscreen' it. Enjoy!

Wednesday Aug 26, 2015

Page Borders and Title Underlines

I have taken to recording screen grabs to help some folks out on 'how do I' scenarios. Sometimes a 3 minute video saves a couple of thousand words and several screen shots.

So, per chance you need to know:

1. How to add a page border to your output and/or

2. How to add an under line that runs across the page

Watch this!

If you need the template, sample data and output, get them here.

I'm taking requests if you have them.

Wednesday Jun 03, 2015

WebCenter Content - A new Delivery Channel in !!

Hi Everyone

One of the new features introduced in is WebCenter Content (WCC) Server as a delivery channel. Prior to this release, we could manage delivery to WCC (formerly UCM) server using webDAV as explained by Tim in his blog "BI Publisher and WebDAV... done!". However, there were few restrictions

  • No way to include standard or custom metadata. Therefore, there was no description for the documents submitted and searching these documents in WCC was not convenient.
  • WebDAV uses folders to store the document and access to these folders have to be pre-configured by WCC Administrator. User can not select security group or account at the time of scheduling.

Moreover, with WCC as delivery channel you have the ability to use idc(s), http(s) and JAX-WS protocols. Refer to the documentation on RIDC protocols for more details on these protocols.

We have now videos in BI Publisher Youtube Channel to demonstrate how BI Publisher integration with WCC works. The videos are split in two parts: Part 1 (Title: BIPublisherWCC Part1) covers an overview and explains some of the WCC concepts, while Part 2 (Title: BIPublisherWCC Part2) walks you through all the steps necessary to make the integration work.

You can find additional details in the documentation guide. Navigate to the Books link and check the Administrators Guide for setting up delivery destinations and the Data Modeling Guide for Custom Metadata & Bursting related information.

I am sure you will find this new feature very easy to configure and very useful for maintaining documents in WCC. Have a nice day !!

Monday May 25, 2015

Oracle BI Publisher is available !!!

Hi Everyone,

I am happy to announce that Oracle BI Publisher is released, although I admit that this is almost a week old news now and I am sure some of you may have already known this by now from the BI Publisher homepage in OTN or from other sources. My sincere apologies for the delay here.

Thank you Tim for helping me to get back into this blog membership and being patient to allow me put this word out. My activity in the blog has been so less in the past that I am as good as a new member here. When I tried to login last week, I was greeted with this message -

"Sorry, you do not have the privileges necessary to access the page you requested. This system is available to Oracle Employees only. Oracle Employees who would like to request a blog account should click here."

So I had to start all over and get a fresh access created. Thanks to Tim and Phil from IT support for helping me with this. I will now make sure to use this space more often and share more features, tips and tricks.

Oracle BI Publisher was GA on May 19th and you can get the download, documentation, certification matrix and release notes here at the BI Publisher home page in OTN. Here is a quick snapshot of new features in this release. The download is also available at Oracle Software Delivery Cloud site. The documentation page has also been given a fresh new structure where in the left navigation you will notice "Task" and "Books" as two menu items. The task will provide quick reference to role based activities under different sub menu items such as "View & Publish", "Design Reports" etc. The "Books" menu will take you to the complete set of books. You can select Administrator's guide, or Developer's guide, Data Modelling Guide, Report Designer's guide and User's Guide for BI Publisher here. If you are looking for any feature, and do not find information under "Tasks" then check for the same under "Books" or use the search option.

Stay tuned for more updates on new features. Wish you have a good time exploring the new features!!

Wednesday May 20, 2015

BIP scheduleReport with Parameters

I have just spent an hour or so working on getting a sample scheduleReport web service working with parameter values. There are a lot of examples out there but none I have found have the parameters being set. Our doc is a little light on details on how to set them up :) In lieu of that, here's this!

        // Set the parameter values for the report. In this example we have
        // 'dept' and 'emp' parameters. We could easily query the params dynamically
        //Handle 'dept' parameter
        ParamNameValue deptParamNameVal = new ParamNameValue();
        deptParamNameVal= new ParamNameValue();
        // Create the string array to hold the parameter value(s)
        ArrayOfXsdString deptVal = new ArrayOfXsdString();
        // For individual values or multiples, add values to the
        // string array e.g. 10,20,30
        // Asterisk used for a null value ie 'All'

        // add the array to the parameter object
        //Handle 'emp' parameter
        ParamNameValue empParamNameVal = new ParamNameValue();
        empParamNameVal= new ParamNameValue();
        ArrayOfXsdString empVal = new ArrayOfXsdString();
        // For individual values or multiples, add values to the string array
        // empVal.getItem().add("Jennifer Whalen");
        // empVal.getItem().add("Michael Hartstein");

        // Asterisk used for a null value ie 'All'

        // add parameter values to parameter array
        ArrayOfParamNameValue paramArr = new ArrayOfParamNameValue();
        //Now add array to values obj
        ParamNameValues pVals = new ParamNameValues();

 The pVals object can then be added to the report request object.


Hopefully, you can extrapolate to your code. JDev application available here, unzip and open the application.
Just the schedule report class is available here.

Thursday Feb 12, 2015

How do I ...

An email came in this morning to an internal mailing list,

We have an Essbase customer with some reporting requirements and we are evaluating BI Publisher as the potential solution. I'd like to ask for your help with any document, blog or white paper with guidelines about using BI Publisher with Essbase as the main data source.

Is there any tutorial showing how to use BI Publisher with Essbase as the main data source?

There is not one to my knowledge but trying to be helpful I came up with the following response

I'll refer to the docs ...
First set up your connection to Essbase
Then create your data model using that Essbase connection
Use the MDX query builder to create the query or write it yourself (lots of fun :)
Add parameters (optional)
Then build layouts for your Essbase query
annnnd your're done :)

Simple, right? Well simple in its format but it required me to know the basic steps to build said report and then where to find the appropriate pages in the doc for the links. Leslie saw my reply and commented on how straightforward it was and how our docs are more like reference books than 'how to's.' This got us thinking. I have noticed that the new 'cloud' docs have How do I ... sections where a drop down will then show maybe 10 tasks associated with the page Im on right now in the application.

Getting that help functionality into the BIP is going to take a while. We thought, in the mean time, we could carve out a section on the blog for just such content. Here's where you guys come in. What do you want to know how to do? Suggestions in the comment pleeeease!

Monday Feb 09, 2015

Have your say ...

Another messaging exchange last week with Leslie ...

OK, so we practised it a bit after our first convo and things got a little cheesy but hopefully you get the message.

Hit this link and you too can give some constructive feedback on the Oracle doc for BI (not just BIP.) I took the survey; its only eight questions or more if you want to share more of your input. Please take a couple of minutes to help us shape the documentation of future.

Thursday Jan 15, 2015

OAUG BIP SIG ... we're getting the band back together

 Today's post comes to you from Brent at STR Software. If you could help out, it would be greatly appreciated, read on ...

First off, if you are not familiar with the term SIG, it stands for Special Interest Group. OAUG facilitates a number of SIGs to bring users together that share common or industries concerning certain Oracle products.

Unfortunately, the BI Publisher SIG has been offline for a number of years and has not been given the attention it needs to be a useful resource for members of OAUG. Well... I'm getting the band back together and I need your help!

The SIG itself was formed to specifically focus on BI Publisher embedded in Oracle EBS, Peoplesoft and JD Edwards. I have put together a survey that is being emailed out to previous members of the SIG to get thoughts on how the SIG can be of service. That list is pretty old and YOU may not be on it, so if you are interested in participating in the SIG (or even if you are not), have a look at the link below and let me know your thoughts. Our first official meeting will be at Collaborate 15 in Las Vegas, hope to see you there!

Take the survey -> here!

Friday Dec 12, 2014

Paginated HTML is here and has been for some time ... I think!

We have a demo environment in my team and of course things get a little beaten up in there. Our go to, 'here's Publisher' report was looking really bad. Data was not returning or being rendered correctly on the five templates we have for it.
So, I spent about a half hour cleaning up the report; getting things working again; clearing out the rubbish. I noticed that one of the layouts when rendered in HTML was repeatedly showing a header down the screen. Oh, I know where to get rid of that and off I click to the report properties to fix it. But what is this I see? Is it? Can it be? Are my tired old eyes deceiving me?

Yes, Dexter, you see that right, 'View Paginated'! I nervously changed the value to 'true' and went back to the HTML output.
Holy Amaze Balls Batman, paginated HTML, the holy grail of HTML rendered reports, the Mount Everest of ... no, thats too easy, the K2 of html output ... its fan-bloody-tastic! Can you tell Im excited? I was immediately on messenger to Leslie (doc writer extraordinaire)

Obviously not quite as big a deal in the sane, real world outside of my head. 'Oh yeah, we have that now ...' Leslie is so calm and collected, however, she does like Maroon 5 but, we overlook that :)

I command you'ers to go find the property and turn it on right now and bask in the glory that is, 'paginated html.!'
I cannot stop clicking back and forth and then to the end and then all the way back to the beginning. Its fantastic!

Just look at those icons, just click em, you know you want to!

Tuesday Nov 18, 2014

Bordering Text

A tough little question appeared on one of our internal mailing lists today that piqued my interest. A customer wanted to place a border around all data fields in their BIP output. Something like this:

Naturally you think of using a table, embedding the field inside a cell and turning the cell border on. That will work but will need some finessing to get the cells to stretch or shrink depending on the width of the runtime text. Then things might get a bit squirly (technical term) if the text is wide enough to force a new line at the page edge. Anyway, it will get messy. So I took a look at the problem to see if the fields can be isolated in the page as far as the XSLFO code is concerned. If the field can be siolated in its own XSL block then we can change attribute values to get the borders to show just around the field. Sadly not.

This is an embedded field YEARPARAM in a sentence.

translates to

 <fo:inline height="0.0pt" style-name="Normal" font-size="11.0pt" style-id="s0" white-space-collapse="false"
  font-family-generic="swiss" font-family="Calibri"
  xml:space="preserve">This is an embedded field <xsl:value-of select="(.//YEARPARAM)[1]" xdofo:field-name="YEARPARAM"/> in a sentence.</fo:inline>

If we change the border on tis, it will apply to the complete sentence. not just the field.
So how could I isolate that field. Well we could actually do anything to the field. embolden, italicize, etc ... I settled on changing the background color (its easy to change it back with a single attribute call.) Using the highlighter tool on the Home tab in Word I change the field to have a yellow background. I now have:

 This gives me the following code.

<fo:block linefeed-treatment="preserve" text-align="start" widows="2" end-indent="5.4pt" orphans="2"
 start-indent="5.4pt" height="0.0pt" padding-top="0.0pt" padding-bottom="10.0pt" xdofo:xliff-note="YEARPARAM" xdofo:line-spacing="multiple:13.8pt">
 <fo:inline height="0.0pt" style-name="Normal" font-size="11.0pt" style-id="s0" white-space-collapse="false"
  font-family-generic="swiss" font-family="Calibri" xml:space="preserve">This is an embedded field </fo:inline>
  <fo:inline height="0.0pt" style-name="Normal" font-size="11.0pt" style-id="s0" white-space-collapse="false"
   font-family-generic="swiss" font-family="Calibri" background-color="#ffff00">
    <xsl:attribute name="background-color">white</xsl:attribute> <xsl:value-of select="(.//YEARPARAM)[1]" xdofo:field-name="YEARPARAM"/>
 <fo:inline height="0.0pt" style-name="Normal" font-size="11.0pt" style-id="s0" white-space-collapse="false"
  font-family-generic="swiss" font-family="Calibri" xml:space="preserve"> in a sentence.</fo:inline>

Now we have the field isolated we can easily set other attributes that will only be applied to the field and nothing else. I added the following to my YEARPARAM field:

<?attribute@inline:background-color;'white'?> >>> turn the background back to white
<?attribute@inline:border-color;'black'?> >>> turn on all borders and make black
<?attribute@inline:border-width;'0.5pt'?> >>> make the border 0.5 point wide
<?YEARPARAM?> >>> my original field

The @inline tells the BIP XSL engine to only apply the attribute values to the immediate 'inline' code block i.e. the field. Collapse all of this code into a single line in the field.
When I run the template now, I see the following:


Its a little convoluted but if you ignore the geeky code explanation and just highlight/copy'n'paste, its pretty straightforward.

Thursday Oct 02, 2014

Multi Sheet Excel Output

Im on a roll with posts. This blog can be rebuilt ...

I received a question today from Camilo in Colombia asking how to achieve the following.

‘What are my options to deliver excel files with multiple sheets? I know we can split 1 report in multiple sheets in with the BIP Advanced Options, but what if I want to have 1 report / sheet? Where each report in each sheet has a independent data model ….’

Well, its not going to be easy if you have to have completely separate data models for each sheet. That would require generating multiple Excel outputs and then merging them, somehow.

However, if you can live with a single data model with multiple data sets i.e. queries that connect to separate data sources. Something like this:

Then we can help. Each query is returning its own data set but they will all be presented together in a single data set that BIP can then render. Our data structure in the XML output would be:


Three distinct data sets within the same data output.

To get each to sit on a separate sheet within the Excel output is pretty simple. It depends on how much native Excel functionality you want.

Using an RTF template you just create the layouts for each data set on a page(s) separated by a page break (Ctrl-Enter.) At runtime, BIP will place each output onto a separate sheet in the workbook. If you want to name each sheet you can use the <?spreadsheet-sheet-name: xpath-expression?> command. More info here. That’s as sophisticated as it gets with the RTF templates. No calcs, no formulas, etc. Just put the output on a sheet, bam!

Using an Excel template you can get more sophisticated with the layout.

This time thou, you create the layout for each data model on separate sheets. In my example, sheet 1 holds the department data, sheet 2, the employee data and so on. Some conditional formatting has snuck in there.

I have zipped up the sample files here.


Thursday Sep 25, 2014

Database Links

Yeah, its been a while, moving on ...

I got a question a week back asking about how BI Publisher could handle dblinks. The customer currently has db links from DB1 to DB2 and uses them in their queries. Could BIP handle the syntax and pass it on to the database in its SQL or could it handle the link another way?

select e1.emp_name
, e1.emp_id
from emps e1
, emps@db2 e2
where e1.manager_id =

Well, there is the obvious way to create the join in BIP. Just get rid of the db link alttogether and create two separate database connections (db1 and db2). Write query A against db1 and query B against db2. Then just create a join between the two queries, simple.

 But, what if you wanted to use the dblink? Well, BIP would choke on the @db2 you would have in the sql. Some silly security rules that, no, you can not turn off if you want to. But there are ways around it, the choking, not the security. Create an alias at the database level for the emp@db2, that way BIP can parse the resulting query. Lets assume I create an alias in the db for my db linked table as 'managers'. Now my query becomes:

select e1.emp_name
, e1.emp_id
from emps e1
, managers e2
where e1.manager_id =

 BIP will not choke, it will just pass the query through and the db can handle the linking for it.

Thats it, thats all I got on db links. See you in 6 months :)

Wednesday Mar 05, 2014

Internal Links

Another great question today, this time, from friend and colleague, Jerry the master house re-fitter. I think we are competing on who can completely rip and replace their entire house in the shortest time on their own. Every conversation we have starts with 'so what are you working on?' He's in the midst of a kitchen re-fit, Im finishing off odds and ends before I re-build our stair well and start work on my hidden man cave under said stairs. Anyhoo, his question!

Can you create a PDF document that shows a summary on the first page and provides links to more detailed sections further down in the document?

Why yes you can Jerry. Something like this? Click on the department names in the first table and the return to top links in the detail sections. Pretty neat huh? Dynamic internal links based on the data, in this case the department names.

Its not that hard to do either. Here's the template, RTF only right now.

The important fields in this case are the ones in red, heres their contents.


<fo:block id="doctop" />

Just think of it as an anchor to the top of the page called doctop

Back to Top

<fo:basic-link internal-destination="doctop" text-decoration="underline">Back to Top</fo:basic-link>

Just a live link 'Back to Top' if you will, that takes the user to the doc top location i.e. to the top of the page.


<fo:block id="{DEPARTMENT_NAME}"/>

Just like the TopLink above, this just creates an anchor in the document. The neat thing here is that we dynamically name it the actual value of the DEPARTMENT_NAME. Note that this link is inside the for-each:G_DEPT loop so the {DEPARTMENT_NAME} is evaluated each time the loop iterates. The curly braces force the engine to fetch the DEPARTMENT_NAME value before creating the anchor.


<fo:basic-link  internal-destination="{DEPARTMENT_NAME}" ><?DEPARTMENT_NAME?></fo:basic-link>

This is the link for the user to be able to navigate to the detail for that department. It does not use a regular MSWord URL, we have to create a field in the template to hold the department name value and apply the link. Note, no text decoration this time i.e. no underline.

You can add a dynamic link on to anything in the summary section. You just need to remember to keep link 'names' as unique as needed for source and destination. You can combine multiple data values into the link name using the concat function.

Template and data available here. Tested with 10 and 11g, will work with all BIP flavors.

Friday Feb 28, 2014

Waterfall Charts

Great question came through the ether from Holger on waterfall charts last night.

"I know that Answers supports waterfall charts and BI Publisher does not.
Do you have a different solution approach for waterfall charts with BI Publisher (perhaps stacked bars with white areas)?
Maybe you have already implemented something similar in the past and you can send me an example."

I didnt have one to hand, but I do now. Little known fact, the Publisher chart engine is based on the Oracle Reports chart engine. Therefore, this document came straight to mind. Its awesome for chart tips and tricks. Will you have to get your hands dirty in the chart code? Yep. Will you get the chart you want with a little effort? Yep. Now, I know, I know, in this day and age, you should get waterfalls with no effort but then you'd be bored right?

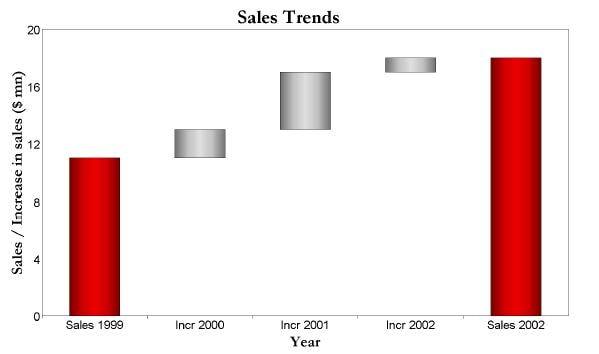

First things first, for the uninitiated, what is a waterfall chart? From some kind person at Wikipedia, "The waterfall chart is normally used for understanding how an initial value is affected by a series of intermediate positive or negative values. Usually the initial and the final values are represented by whole columns, while the intermediate values are denoted by floating columns. The columns are color-coded for distinguishing between positive and negative values."

We'll get back to that last sentence later, for now lets get the basic chart working.

Checking out the Oracle Report charting doc, search for 'floating' their term for 'waterfall' and it will get you to the section on building a 'floating column chart' or in more modern parlance, a waterfall chart. If you have already got your feet wet in the dark arts world of Publisher chart XML, get on with it and get your waterfall working.

If not, read on.

When I first starting looking at this chart, I decided to ignore the 'negative values' in the definition above. Being a glass half full kind of guy I dont see negatives right :)

Without them its a pretty simple job of rendering a stacked bar chart with 4 series for the colors. One for the starting value, one for the ending value, one for the diffs (steps) and one for the base values. The base values color could be set to white but that obscures any tick lines in the chart. Better to use the transparency option from the Oracle Reports doc.

<Series id="0" borderTransparent="true" transparent="true"/>

Pretty simple, even the data structure is reasonably easy to get working. But, the negative values was nagging at me and Holger, who I pointed at the Oracle Reports doc had come back and could not get negative values to show correctly. So I took another look. What a pain in the butt!

In the chart above (thats my first BIP waterfall maybe the first ever BIP waterfall.) I have lime green, start and finish bars; red for negative and green for positive values. Look a little closer at the hidden bar values where we transition from red to green, ah man, royal pain in the butt! Not because of anything tough in the chart definition, thats pretty straightforward. I just need the following columns START, BASE, DOWN, UP and FINISH.

UP 0
BASE 180
UP 0
BASE 150
UP 0

 Bar 1 - Start Value
 Bar 2 - PROD1
 Bar 3 - PROD2

and so on. The start, up, down and finish values are reasonably easy to get. The real trick is calculating that hidden BASE value correctly for that transition from -ve >> + ve and vice versa. Hitting Google, I found the key to that calculation in a great page on building a waterfall chart in Excel from the folks at Contextures.  Excel is great at referencing previous cell values to create complex calculations and I guess I could have fudged this article and used an Excel sheet as my data source. I could even have used an Excel template against my database table to create the data for the chart and fed the resulting Excel output back into the report as the data source for the chart. But, I digress, that would be tres cool thou, gotta look at that.
On that page is the formula to get the hidden base bar values and I adapted that into some sql to get the same result.

Lets assume I have the following data in a table:

PROD1 -20
PROD2 -30
PROD3 50
PROD4 60

The sales values are versus the same period last year i.e. a delta value.  I have a starting value of 200 total sales, lets assume this is pulled from another table.
I have spent the majority of my time on generating the data, the actual chart definition is pretty straight forward. Getting that BASE value has been most tricksy!

I need to generate the following for each column:







150 30 0
0 150 0 50 0
0 200
0 60 0
0 0 0 0 260

Ignoring the START and END values for a second. Here's the query for the PRODx columns:

, UP
,  0 AS STRT

The inner query is breaking the UP and DOWN values into their own columns based on the SALES value. The LAG function is the cool bit to fetch the UP value in the previous row. That column is the key to getting the BASE values correctly.

The outer query just has a calculation for the BASE_VAL.


The SUM..OVER allows me to iterate over the rows to get the calculation I need ie starting value (200) + the running sum of LAG_UP - DOWN. Remember the LAG_UP value is fetching the value from the previous row.
Is there a neater way to do this? Im most sure there is, I could probably eliminate the inner query with a little effort but for the purposes of this post, its quite handy to be able to break things down.

For the start and end values I used more queries and then just UNIONed the three together. Once note on that union; the sorting. For the chart to work, I need START, PRODx, FINISH, in that order. The easiest way to get that was to add a SORT_KEY value to each query and then sort by it. So my total query for the chart was:

, 200 STRT
, 0 UP
, 0 DOWN
, UP
, 200 + (SUM(LAG_UP - DOWN)
,  0 AS STRT
, 0 STRT
, 0 UP
, 0 DOWN
GROUP BY 1,2,3,4,6

A lot of effort for a dinky chart but now its done once, doing it again will be easier. Of course no one will want just a single chart in their report, there will be other data, tables, charts, etc. I think if I was doing this in anger I would just break out this query as a separate item in the data model ie a query just for the chart. It will make life much simpler.
Another option that I considered was to build a sub template in XSL to generate the XML tree to support the chart and assign that to a variable. Im sure it can be done with a little effort, I'll save it for another time.

On the last leg, we have the data; now to build the chart. This is actually the easy bit. Sadly I have found an issue in the online template builder that precludes using the chart builder in those templates. However, RTF templates to the rescue!

Insert a chart and in the dialog set up the data like this (click the image to see it full scale.)

Its just a vertical stacked bar with the BASE_VAL color set to white.You can still see the 'hidden' bars and they are over writing the tick lines but if you are happy with it, leave it as is. You can double click the chart and the dialog box can read it no problem. If however, you want those 'hidden' bars truly hidden then click on the Advanced tab of the chart dialog and replace:

<Series id="1" color="#FFFFFF" />


<Series id="1" borderTransparent="true" transparent="true" />

and the bars will become completely transparent. You can do the #D and gradient thang if you want and play with colors and themes. You'll then be done with your waterfall masterpiece!

Alot of work? Not really, more than out of the box for sure but hopefully, I have given you enough to decipher the data needs and how to do it at least with an Oracle db. If you need all my files, including table definition, sample XML, BIP DM, Report and templates, you can get them here.

Monday Feb 24, 2014

Wildcard Filtering continued

I wrote up a method for using wildcard filtering in your layouts a while back here. I spotted a followup question on that blog post last week and thought I would try and address it using another wildcard method.

I want to use the bi publisher to look for several conditions using a wild card. For example if I was sql it would look like this:

if name in ('%Wst','%Grt')

How can I utilize bi publisher to look for the same conditions.

This, in XPATH speak is an OR condition and we can treat it as such. In the last article I used the 'starts-with' function, its a little limiting, there is a better one, 'contains'. This is a much more powerful function that allows you to look for any string within another string. Its case insensitive so you do not need to do upper or lowering of the string you are searching to get the desired results.
Here it is in action:

For the clerks filter I use :


and to find all clerks and managers, I use:

<?for-each-group:G_1[contains(JOB_TITLE,'Clerk') or contains(JOB_TITLE,'Manager')];./JOB_TITLE?>

Note that Im using re-grouping here, you can use the same XPATH with a regular for-each. Also note the lower case 'or' in the second expression. You can also use an 'and' too.

This works in 10 and 11g flavors of BIP. Sample files available here.

Tuesday Feb 11, 2014

Filtered Charts

A customer question this week regarding filtering a chart. They have a report with a bunch of criteria with monetary values but, rather than show all of the criteria in a pie chart, they just want to show a few. For example:

 This ...
 rather than this

 There are a couple of ways to tackle this:

1. Filter the chart data in the chart definition. Using an XPATH expression you can filter out all of the criteria you do not want to see. Open the chart definition and update the definition. You will need to update the RowCount, RowLabels and DataValues attributes in the chart definition. Adding in the following XPATH expression:

    [DEPARTMENT_NAME='Accounting' or DEPARTMENT_NAME='Marketing' or DEPARTMENT_NAME='Executive']

so the DataValues value becomes:

    <DataValues><xsl:for-each-group select=".//G_1[DEPARTMENT_NAME='Accounting' or
                                                     DEPARTMENT_NAME='Marketing' or
                                                        DEPARTMENT_NAME='Executive']" ...

2. Create a variable in the template to hold just the values you want to chart.

    <?variable: filterDepts; /DATA_DS/LIST_G_1/G_1[DEPARTMENT_NAME='Accounting' or
                                                     DEPARTMENT_NAME='Marketing' or

Then update the chart definition with the variable for the same three attributes above, the RowCount, RowLabels and DataValues. For example:

    <DataValues><xsl:for-each-group select="$filterDepts" ...

These both work admirably, but they both require some manual updating of the chart definition which can get fiddly and a pain to maintain. I'm also just filtering for three departments, when you get up to 5 or 6 then the XPATH starts to become a pain to maintain. Option 2 alleviates this somewhat because you only need to define the filter once to create the filtered variable.
A better option may be ...

3. Force the effort down into the data layer. Create another query in the report that just pulls the data for the chart.

LIST_G2/G_2 holds the data for the chart. Then all you need do is create a vanilla chart on that particular section of the data.

Yes, there is some overhead to re-fetch the data but this is going to be about the same if not less than the extra processing required in the template with options 1 and 2. This has another advantage, you can parametrize the criteria for the user. You can create a parameter to allow the user to select, in my case, the department(s) they want to chart.

Its simple enough to create the multi-select parameter and modify the query to filter based on the values chosen by the user.

Sample report (including data model and layout template here) just un-archive into your catalog.
RTF Template plus sample data available here.

Monday Feb 10, 2014

Alternate Tray Printing

Since we introduced support for check printing PCL escape sequences in i.e. being able to set the micr font or change the print cartridge to the magnetic ink for that string. I have wanted to test out other PCL commands, particularly, changing print trays. Say you have letter headed paper or pre-printed or colored paper in tray 2 but only want to use it for the first page or specific or for a separator page, the rest can come out of plain ol Tray 1 with its copier paper.

I have had a couple of inquiries recently and so, I finally took some time to test out the theory. I should add here, that the dev team thought it would work but were not 100%. The feature was built for the check printing requirements alone so they could not support any other commands. I was hopeful thou!
In short, it works!

I can generate a document and print it with embedded PCL commands to change from Tray 1 (&l4H) to Tray 2 (&l1H ) - yep, makes no sense to me either. I got the codes from here, useful site with a host of other possibilities to test.

For the test, I just created a department-employee listing that broke the page when the department changed. Just inside the first grouping loop I included the PCL string to set Tray 1.

<pcl><control><esc/>&l4H </control> </pcl>

Note, this has to be in clear text, you can not use a formfield.
I then created a dummy insert page using a template and called it from just within the closing department group field (InsertPAGE field.) At the beginning of the dummy page I included the PCL string to get the paper from Tray 2:

<pcl><control><esc/>&l1H</control> </pcl>

When you run this to PDF you will see the PCL string. I played with this and hid it using a white font and it worked great, assuming you have white paper :)

When you set up the printer in the BIP admin console, you need to ensure you have picked the 'PDF to PCL Filter' for the printer.

If you dont want to have PCL enabled all the time, you can have multiple definitions for the same printer with/with out the PCL filter. Users just need to pick the appropriate printer instance. Using this filter ensures that those PCL strings will be preserved into the final PCL that gets sent to the printer.

Example files here. Official documentation on the PCL string here.

Happy Printing!

Monday Feb 03, 2014

Memory Guard

Happy New ... err .. Chinese Year! Yeah, its been a while, its also been danged busy and we're only in February, just! A question came up on one of our internal mailing lists concerning out of memory errors. Pieter, support guru extraordinaire jumped on it with reference to a support note covering the relatively new 'BI Publisher Memory Guard'. Sounds grand eh?

As many a BIP user knows, at BIP's heart lives an XSLT engine. XSLT engines are notoriously memory hungry. Oracle's wee beastie has come a long way in terms of taming its appetite for bits and bytes since we started using it. BIP allows you to take advantage of this 'scalable mode.' Its a check box on the data model which essentially says 'XSLT engine, stop stuffing your face with memory doughnuts and get on with the salad and chicken train for this job' i.e. it gets a limited memory stack within which to work and makes use of disk, if needed, think Windows' 'virtual memory'.

Now that switch is all well and good, for a known big report that you would typically mark as 'schedule only.' You do not want users sitting in front of their screen waiting for a 10,000 page document to appear, right? How about those reports that are borderline 'big' or you have a potentially big report but expect users to filter the heck out of it and they choose not to? It would be nice to be able to set some limits on reports in case a user kicks off a monster donut binge session. Enter 'BI Publisher Memory Guard'!

It essentially lets you set those limits on memory and report size so that users can not run a report that brings the server to its knees. More information on the support web site, search for 'BI Publisher Memory Guard a New Feature to Prevent out-of-memory Errors (Doc ID 1599935.1)' or you can get Leslie's white paper covering the same here.


Follow bipublisher on Twitter Find Us on Facebook BI Publisher Youtube ChannelDiscussion Forum

Join our BI Publisher community to get the most and keep updated with the latest news, How-to, Solutions! Share your feedback and let us hear your voice @bipublisher on Twitter, on our official Facebook page, and Youtube!


« December 2015
