HCM Data Loader (HDL) Keys

Prasanna Borse
Center of Excellence at Oracle

In this article we will discuss various key types supported by Oracle HCM Data loader a.k.a. HDL. Whether you are planning to implement coexistence with ongoing data sync, one time conversion or ongoing integrations you must select the right key type to identify records uniquely. If you select a wrong key type then it may result in huge amount of rework down the line. So please pay special attention to various key types and see what makes most sense in your situation, I do recommend using the system keys where possible.

Supported Key Types:

HCM Data Loader (HDL) supports 4 different types of keys as listed below (in the order of key resolution sequence)

  1. GUID – Oracle Fusion Global Unique ID
  2. Oracle Fusion Surrogate ID
  3. Source Keys
  4. User Keys

These key types are explained below:

Oracle Fusion GUID
Integration Key Generated by Fusion

  • Generated in Oracle Fusion when a record is created
  • Hexadecimal value
  • Unique across all objects
  • Held in Integration Key Map

Oracle Fusion Surrogate ID
Fusion Generated Unique ID

  • Generated in Oracle Fusion when the record is created
  • Numeric value
  • Unique only for the object type
  • Held on the object

Source Keys
Source System Key Information

  • Two values combined:
    • SourceSystemOwner
    • SourceSystemID
  • Held in Integration Key Map



User Keys
User Readable and Generated Keys

  • Natural values
  • One or many attributes
  • Sometimes alternatives
  • Sometimes updateable
  • Held on the object definition




Key Type

Create

Update

Held on Object

Type

Generated Automatically

GUID

No

Yes

No

Hexadecimal

Yes

Surrogate ID

No

Yes (see note #1)

Yes

Numeric

Yes

Source Key

Yes

Yes

No

Alphanumeric

Conditionally (see note #2)

User Key

Yes

Yes (see note #3)

Yes

Alphanumeric

No

Notes:-

1.    You can use surrogate IDs when updating objects, but the IDs may not be readily available to Oracle HCM Cloud users.
2.    Default source keys are generated only if you don't supply a source key when creating an object.
3.    You can't use user keys alone when updating some objects because their values are subject to change.
4.    Keys that aren't held on the object exist in the Integration Key Map table.

Integration Key Map table

Keys that aren’t held on the object are stored in the HDL integration key map table - HRC_INTEGRATION_KEY_MAP. You should be able to use BIP to fire up a SQL statement and view the contents of this table. e.g.

select OBJECT_NAME, SOURCE_SYSTEM_ID, SOURCE_SYSTEM_OWNER, SURROGATE_ID, RAWTOHEX(GUID) guid from fusion.HRC_INTEGRATION_KEY_MAP WHERE SOURCE_SYSTEM_OWNER ='STUDENT1‘

Business Object

Fusion GUID

Source Key

Surrage ID

User Key

Location

25DD4078E961A23BE053A697480AFB92

STUDENT1_LOC1

 300000001572671

 (Set code and Location Code) COMMON, HQ1

  • Fusion GUID: System generated GUID
  • Source Key:  Source System Owner is the reference to source application like PS or EBS, Source System Key is the actual key\id provided in the Location.dat file.
  • Surrogate ID: System generated. In this case it is the primary key from locations record. e.g. select * from PER_LOCATION_DETAILS_F_VL  where location_code = 'STUDENT1 Location1‘   (Result Location ID = 300000001572671)

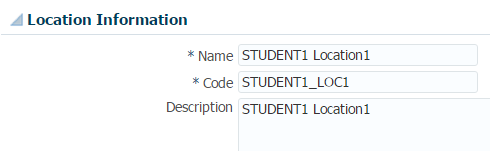

  • User Key:- Best way to get this info is the Business Object Documentation from MOS or other option is UI as shown below. Online page should highlight user keys with *



Supplying Keys in a HDL File

CREATE:

One can supply system keys or user keys (or both) while creating new objects. You can’t supply surrogate id or GUID because those fields are auto generated if the data load is successful.



Creating an Object Using Source Keys:

METADATA|Job|JobCode|EffectiveStartDate|EffectiveEndDate|Name|SetCode|SourceSystemOwner|SourceSystemId

MERGE|Job|SE|2010/01/01|4712/12/31|Software Engineer|COMMON|EBS-UK|12349



Creating an Object Using a User Key:

METADATA|Job|JobCode|EffectiveStartDate|EffectiveEndDate|Name|SetCode

MERGE|Job|SE|2010/01/01|4712/12/31|Software Engineer|COMMON



Update:

One can supply any of the 4 key types while doing updates.

Updating an Object Using Source Keys:

METADATA|Job|EffectiveStartDate|EffectiveEndDate|Name|SourceSystemOwner|SourceSystemId

MERGE|Job|2010/01/01|4712/12/31|Software Engineer - Java|EBS-UK|12349



Updating an Object Using a User Key:

METADATA|Job|JobCode|EffectiveStartDate|EffectiveEndDate|Name|SetCode

MERGE|Job|SE|2010/01/01|4712/12/31|Software Engineer - Java|COMMON



Updating an Object Using the Fusion GUID:

METADATA|Job|GUID|EffectiveStartDate|EffectiveEndDate|Name

MERGE|Job|2342UJHFI2323|2010/01/01|4712/12/31|Software Engineer - Java



Updating an Object Using the Fusion Surrogate ID:

METADATA|Job|JobId|EffectiveStartDate|EffectiveEndDate|Name

MERGE|Job|13413|2010/01/01|4712/12/31|Software Engineer - Java



Specifying Foreign Keys

Using the Fusion Surrogate ID as a Foreign Key:

METADATA|Assignment|JobId|EffectiveStartDate|EffectiveEndDate|AssignmentNumber|SourceSystemId|SourceSystemOwner

MERGE|Assignment|13413|2010/01/01|4712/12/31|5232|EBS-UK|234234



Using the User Key as a Foreign Key:

METADATA|Assignment|JobCode|SetCode|EffectiveStartDate|EffectiveEndDate|AssignmentNumber|SourceSystemId|SourceSystemOwner

MERGE|Assignment|SE|COMMON|2010/01/01|4712/12/31|5232|EBS-UK|234234



Using the Fusion GUID as a Foreign Key:  Supply the value using hint ()

METADATA|Assignment|JobId(GUID)|EffectiveStartDate|EffectiveEndDate|AssignmentNumber|SourceSystemId|SourceSystemOwner

MERGE|Assignment|2342UJHFI2323|2010/01/01|4712/12/31|5232|EBS-UK|234234



Using the Source Key as a Foreign Key: Supply the value using hint ()

METADATA|Assignment|JobId(SourceSystemId)|EffectiveStartDate|EffectiveEndDate|AssignmentNumber|SourceSystemId|SourceSystemOwner

MERGE|Assignment|13143|2010/01/01|4712/12/31|5232|EBS-UK|234234



System Integration Considerations:

  • What not to do?
    • Include effective date or hire date as part of the unique key\source key
    • Include first name or last name as part of unique key\source key for person name
  • Bottom line: Please do not design keys which can be easily changed in the source application.
