Step Up to Modern Cloud Development

Build and Deploy a Golang Application Using Oracle Developer Cloud

Abhinav Shroff
Principal Product Manager

Golang recently became a trending programming language in the developer community. This blog will help you develop, build, and deploy your first Golang-based REST application using Docker and Kubernetes on Oracle Developer Cloud.

Before getting our first Golang application up and running, let’s examine Golang a little.

What is Golang?

Golang, or Go for short, is an open source programming language that is a statically-typed, compiled all-purpose programming language. It is fast and supports concurrency and cross-platform compilation. To learn more about Go, visit the following link:

https://golang.org/

Let’s get set and Go

To develop, build, and deploy a Golang-based application, you’ll need to create the following files on your machine:

  • main.go - Contains the Go application code and the listener
  • Dockerfile - Builds the Docker image for the Go application code
  • gorest.yml – A YAML file that deploys the Docker image of the Go application on Oracle Container Engine for Kubernetes

Here are the code snippets for the files mentioned above.

main.go

This file imports the required packages and defines the handler() function for the request, which is called by the main() function, where the http listener port is defined. As the name itself suggests, the errorHandler() function comes into play when an error occurs.

package main
import (
    "fmt"
    "log"
    "net/http"
    "os"
)
func handler(w http.ResponseWriter, r *http.Request) {
    fmt.Fprintf(w, "Hello %s!", r.URL.Path[1:])
    fmt.Println("RESTfulServ. on:8093, Controller:",r.URL.Path[1:])
}
func main() {
    http.HandleFunc("/", handler)
    fmt.Println("Starting Restful services...")
    fmt.Println("Using port:8093")
    err := http.ListenAndServe(":8093", nil)
    log.Print(err)
    errorHandler(err)
}
func errorHandler(err error){
if err!=nil {
    fmt.Println(err)
    os.Exit(1)
}
}

Dockerfile

This Dockerfile pulls the latest Go Docker image from DockerHub, creates an app folder in the container, and then adds all the application files on the build machine(from Git repository cloning) to the app folder in the container. Next, it makes the app directory the working directory and runs the go build command to build the Go code and execute the main file.



FROM golang:latest
RUN mkdir /app
ADD . /app/
WORKDIR /app
RUN go build -o main .
CMD ["/app/main"]



gorest.yml

The script shown below defines the Kubernetes service and deployment, including the respective names, ports, and Docker image that will be downloaded from the DockerHub registry and deployed on the Kubernetes cluster. In the script, we defined the service and deployment as gorest-se, the port as 8093, and the container image as <DockerHub username>/gorest:1.0

kind: Service
apiVersion: v1
metadata:
  name: gorest-se
  labels:
    app: gorest-se
spec:
  type: NodePort
  selector:
    app: gorest-se
  ports:
  - port: 8093
    targetPort: 8093
    name: http
---
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: gorest-se
spec:
  replicas: 1
  template:
    metadata:
      labels:
        app: gorest-se
        version: v1
    spec:
      containers:
      - name: gorest-se
        image:  abhinavshroff/gorest:1.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8093
---



Create a Git repository in the Oracle Developer Cloud Project

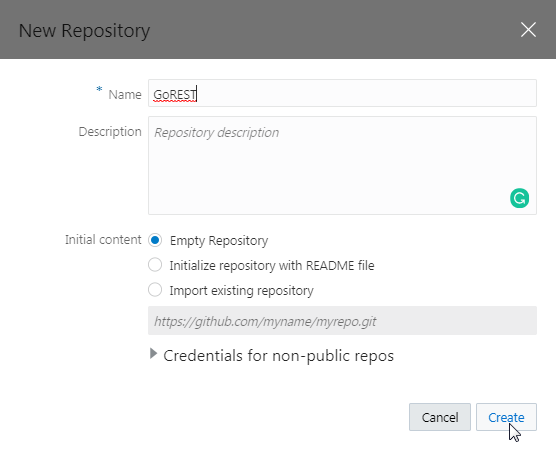

To create a Git repository in the Developer Cloud project, navigate to the Project Home page and then click the +Create Repository button, found on the right-hand side of the page. In the New Repository dialog, enter GoREST for the repository Name and select Empty Repository for the Initial Content option, as shown. Then, click the Create button.

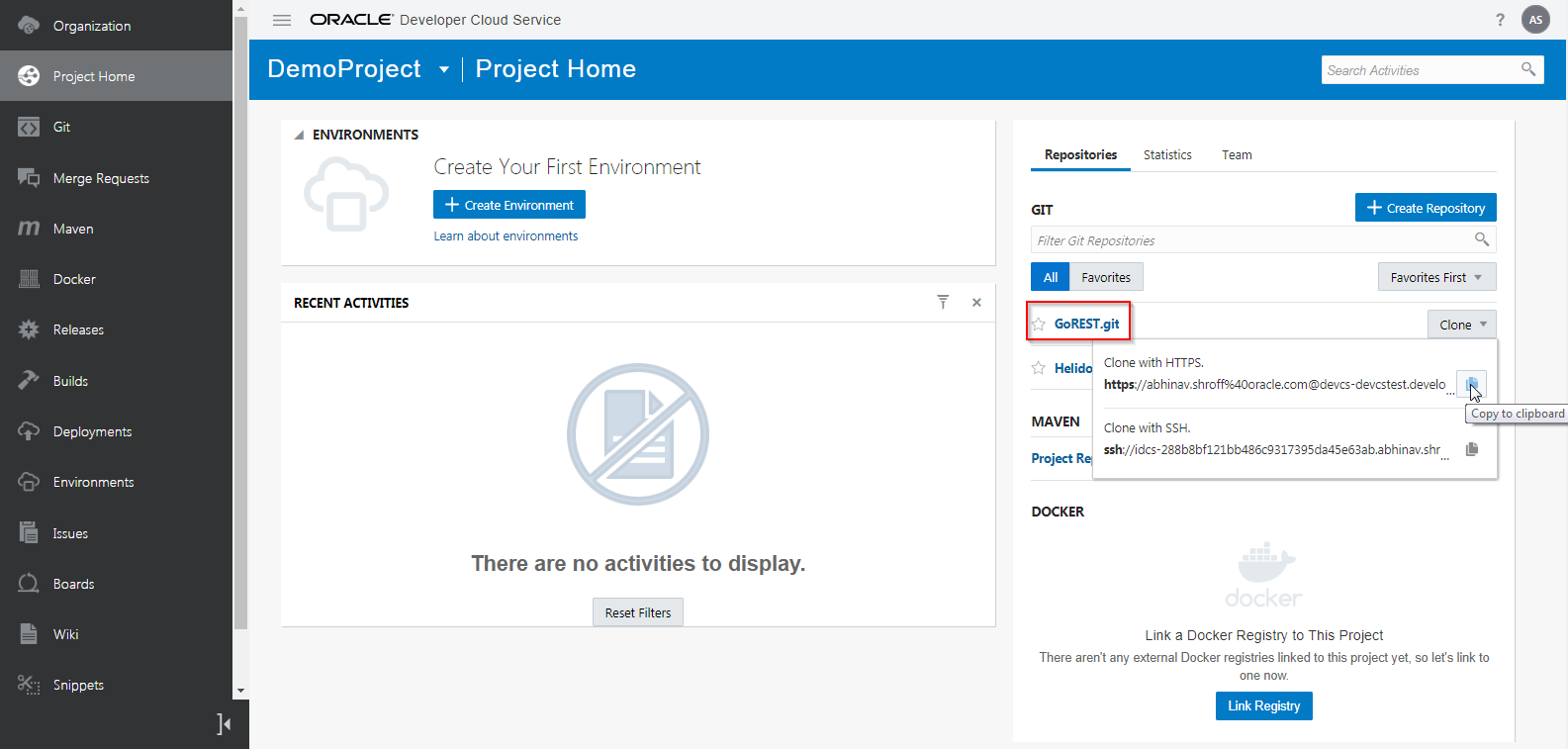

You should now see the GoREST.git repository created in the Repositories tab on the Project Home page. Click the Clone dropdown and then click the copy icon, as shown in the screen shot, to copy the Git repository HTTPS URL. Keep this URL handy.



Push the code to the Git Repository

Now, in your command prompt window, navigate to the GoREST application folder and execute the following Git commands to push the application code to the Git repository you created.

Note: You need to have gitcli installed on your development machine to execute Git commands. Also, you’ll be using the Git URL that you just copied from the Repositories tab, as previously mentioned.

git init

git add --all

git commit -m "First commit"

git remote add origin <git repository url>

git push origin master

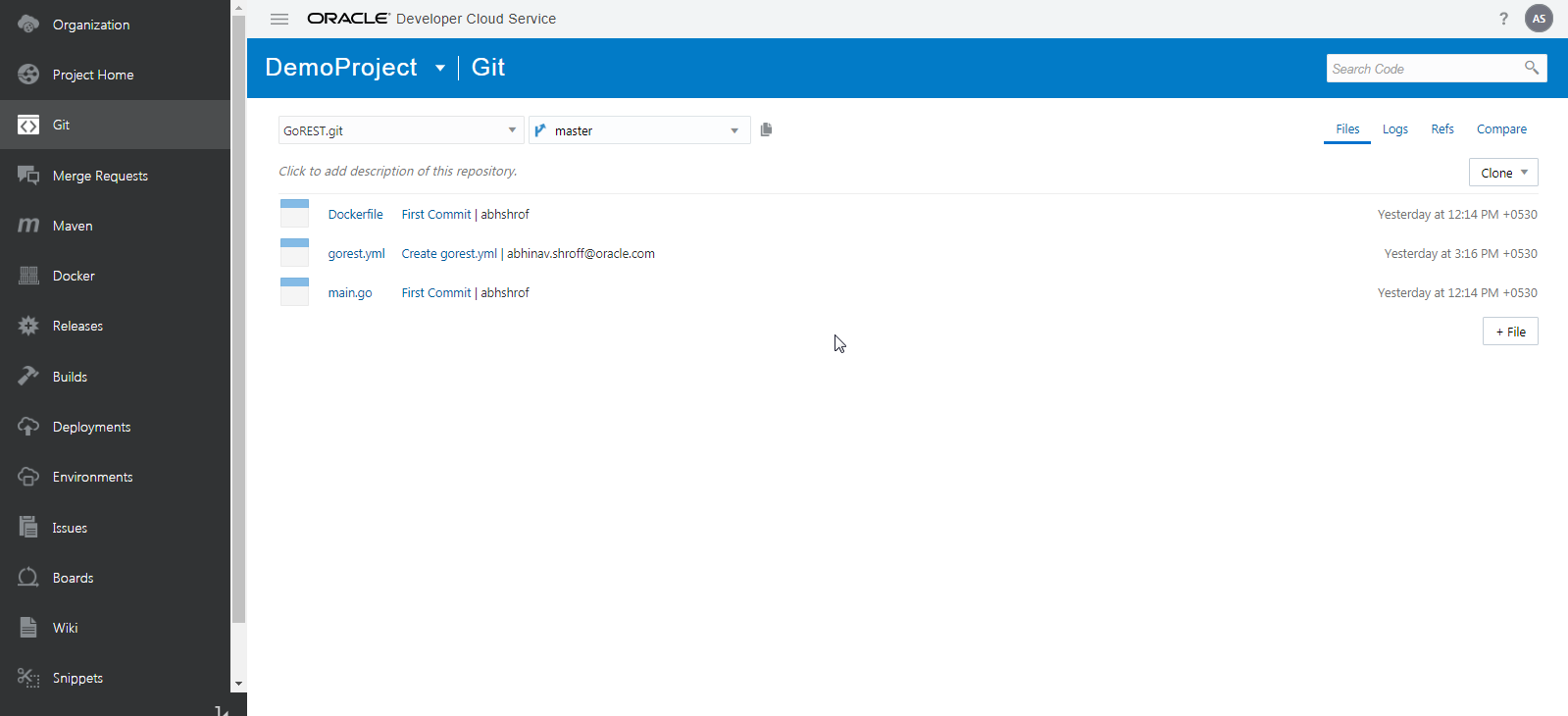

Your GoREST.git repository should have the structure shown below.





Configure the Build Job

In Developer Cloud, select Builds in the left navigation bar to display the Builds page. Then click the +Create Job button.

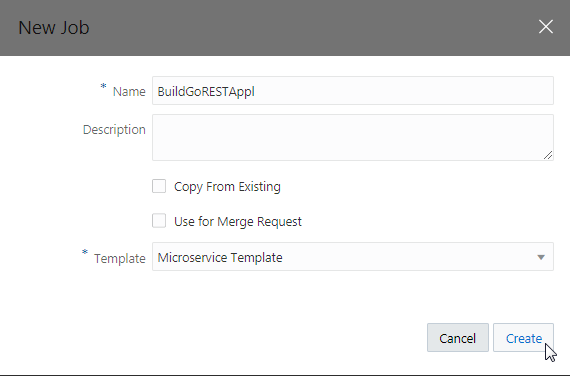

In the New Job dialog, enter BuildGoRESTAppl for the Name and select a Template that has the Docker runtime. Then click the Create button. This build job will build the Docker image for the Go REST application code in the Git repository and push it to the DockerHub registry.

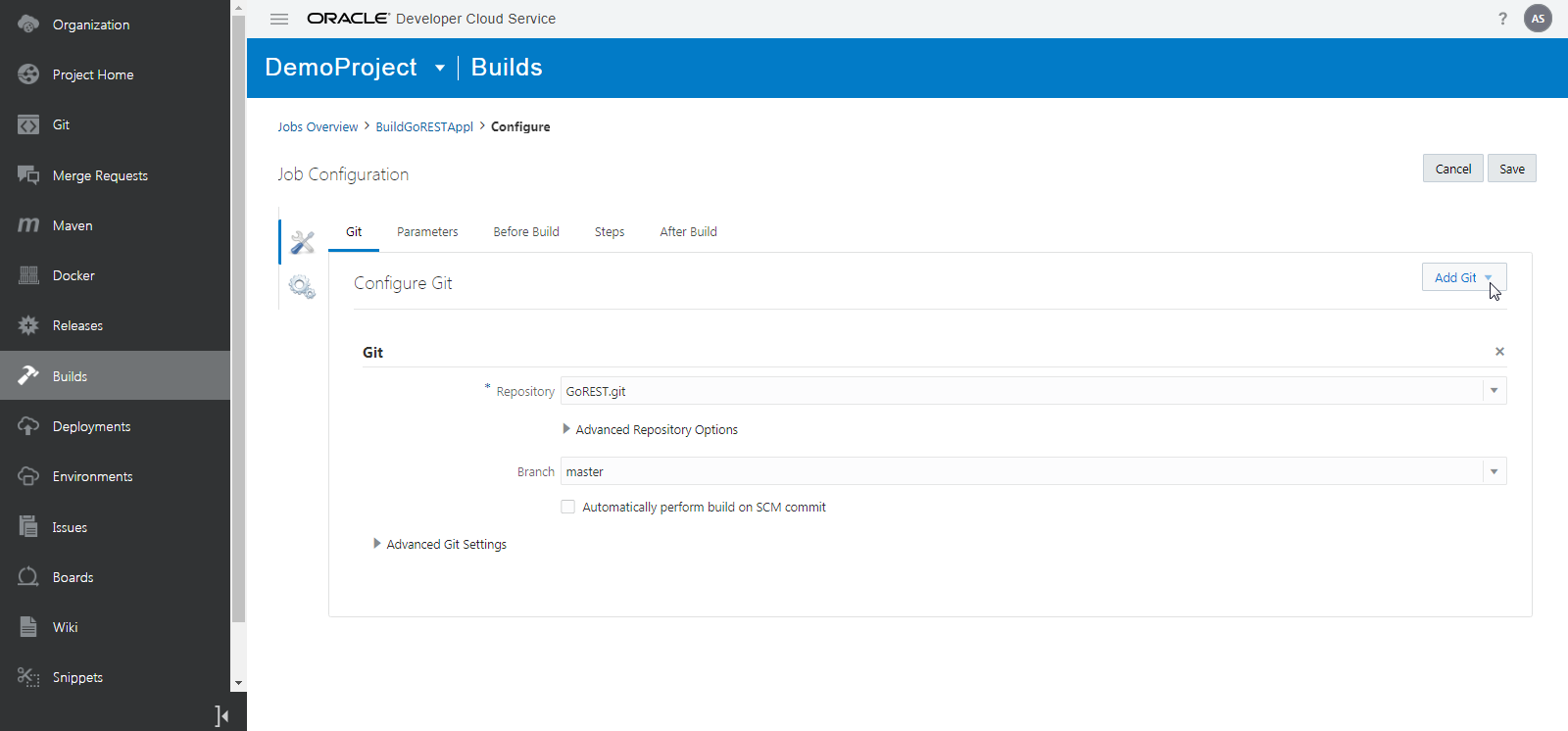

In the Git tab, select Git from the Add Git dropdown, select GoREST.git as the Git repository and, for the branch, select master.

In the Steps tab, use the Add Step dropdown to add Docker login, Docker build, and Docker push steps.

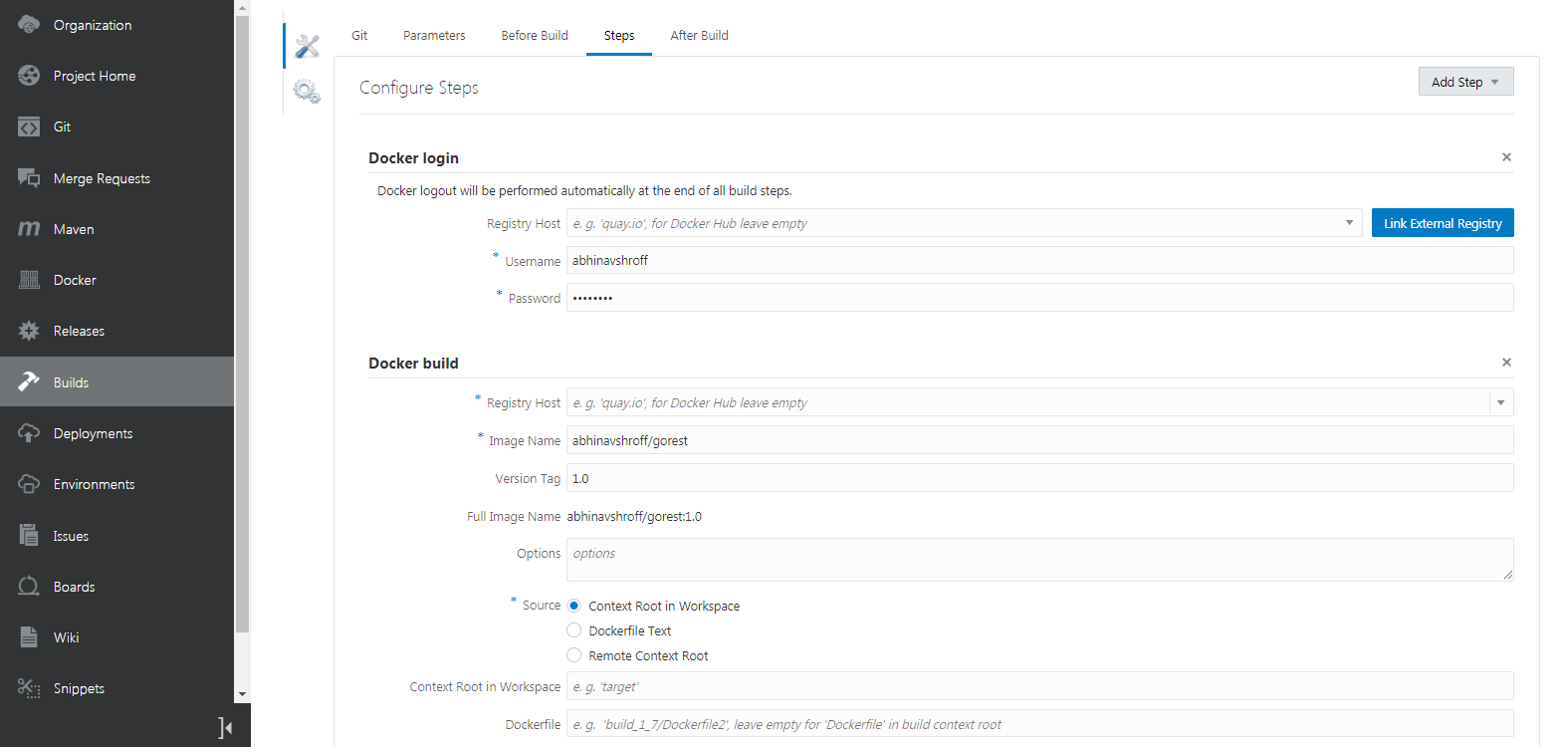

In the Docker login step, provide your DockerHub Username and Password. Leave the Registry Host empty, since we’re using DockerHub as the registry.

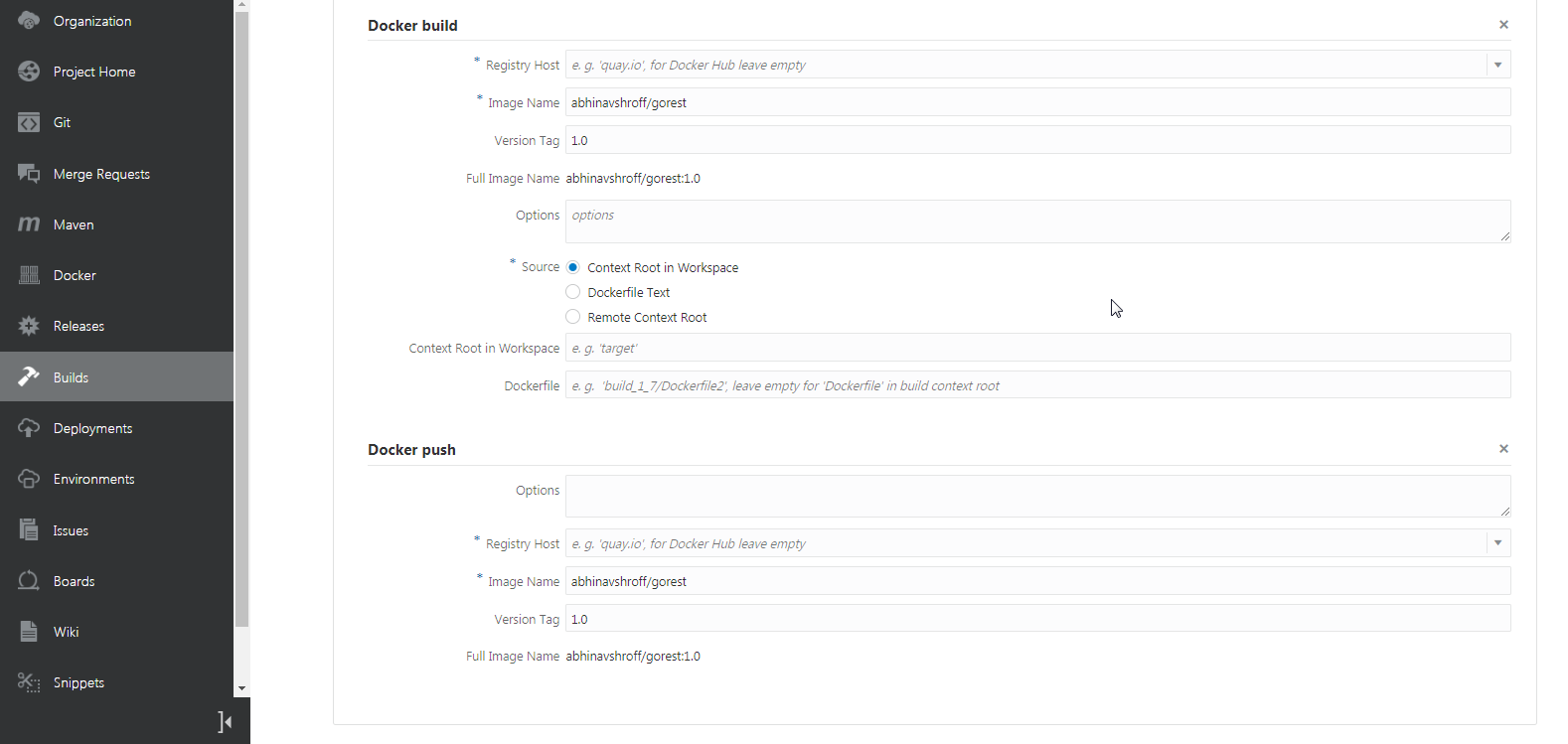

In the Docker build step, enter <DockerHub Username>/gorest for the Image Name and 1.0 for the Version Tag. The full image name shown is <DockerHub Username>/gorest:1.0

In the Docker push step, enter <DockerHub Username>/gorest for the Image Name and 1.0 for the Version Tag. Then click the Save button.

To create another build job for deployment, navigate to the Builds page and click the +Create Job button.

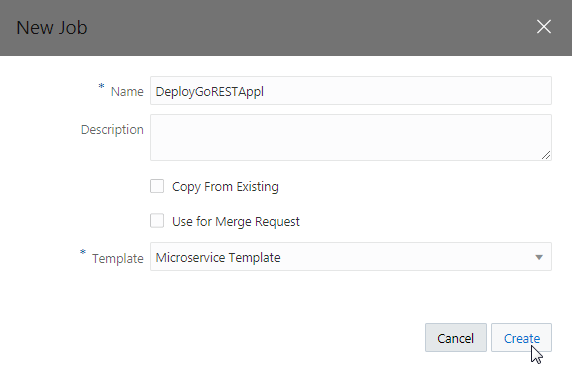

In the New Job dialog enter DeployGoRESTAppl for the Name, select the template with Kubectl, then click the Create button. This build job will deploy the Docker image built by the BuildGoRESTAppl build job to the Kubernetes cluster.

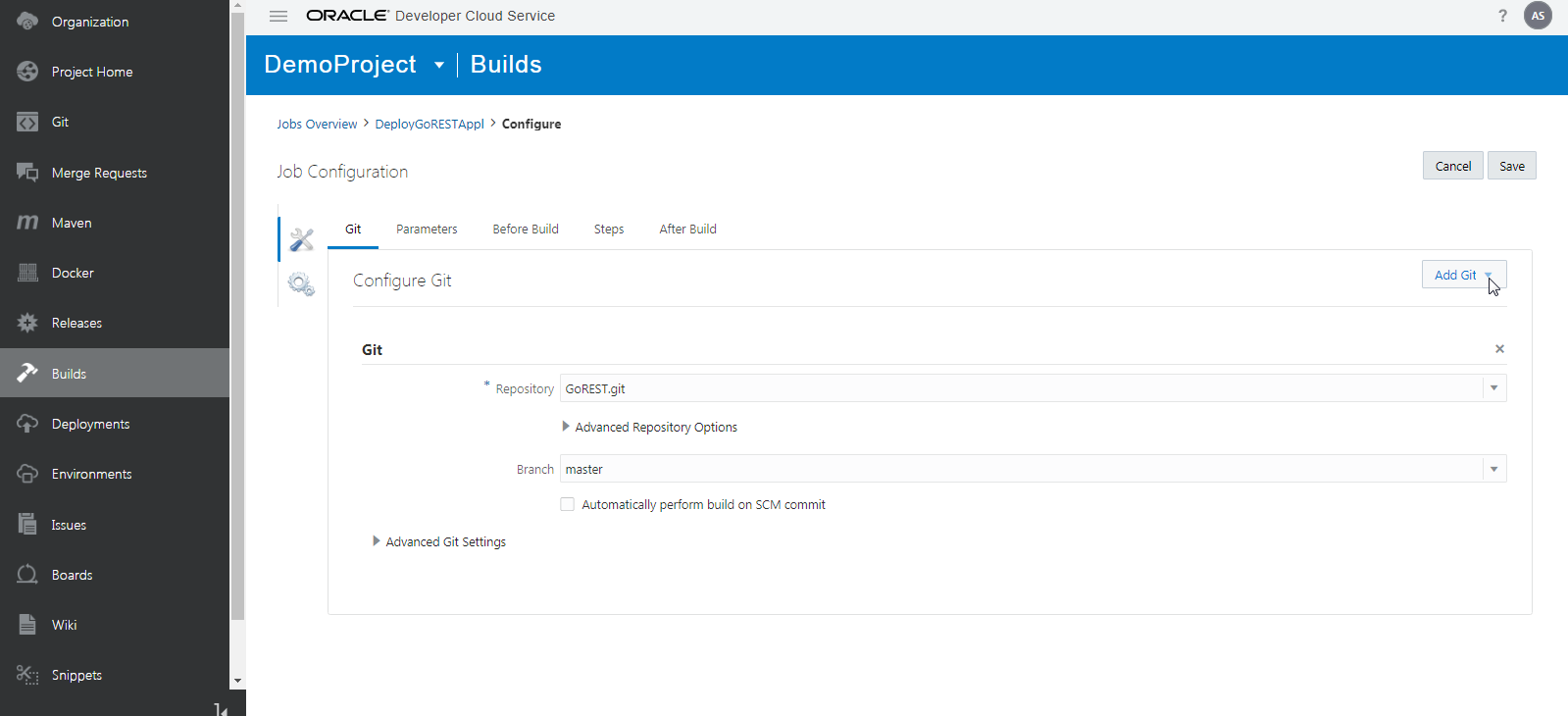

The first thing you’ll do to configure the DeployGoRESTAppl build job is to specify the repository where the code is found and select the branch where you’ll be working on the files.  To do this, in the Git tab, add Git from the dropdown, select GoREST.git as the Git repository and, for the branch, select master.

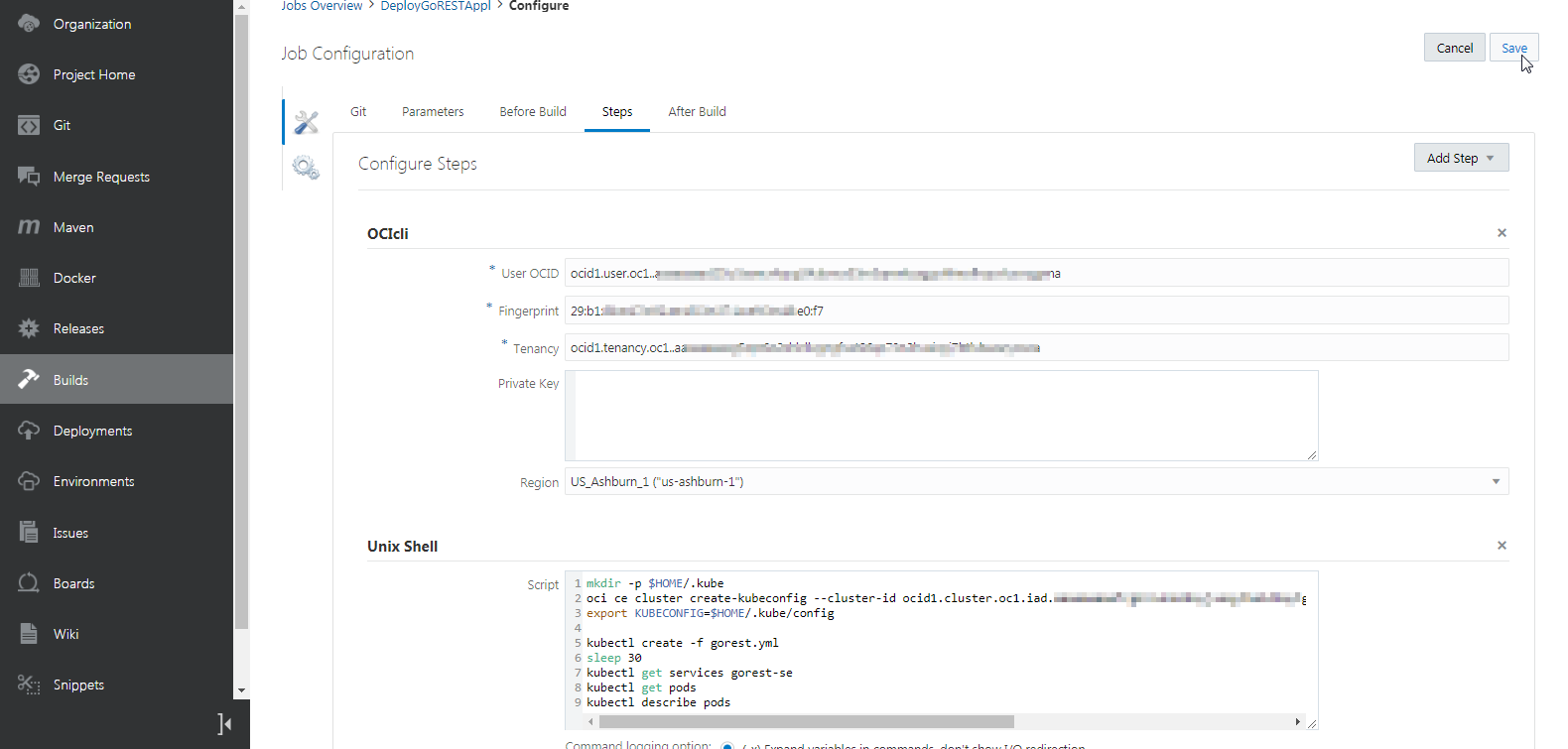

In the Steps tab, select OCIcli from the Add Step dropdown. Take a look at this blog link to see how and where to get the values for the OCIcli configuration. Then, select Unix Shell from the Add Step dropdown and, in the Unix Shell build step, enter the following script.



mkdir -p $HOME/.kube
oci ce cluster create-kubeconfig --cluster-id  --file $HOME/.kube/config --region us-ashburn-1
export KUBECONFIG=$HOME/.kube/config

kubectl create -f gorest.yml
sleep 30
kubectl get services gorest-se
kubectl get pods
kubectl describe pods



When you’re done, click the Save button.



Create the Build Pipeline

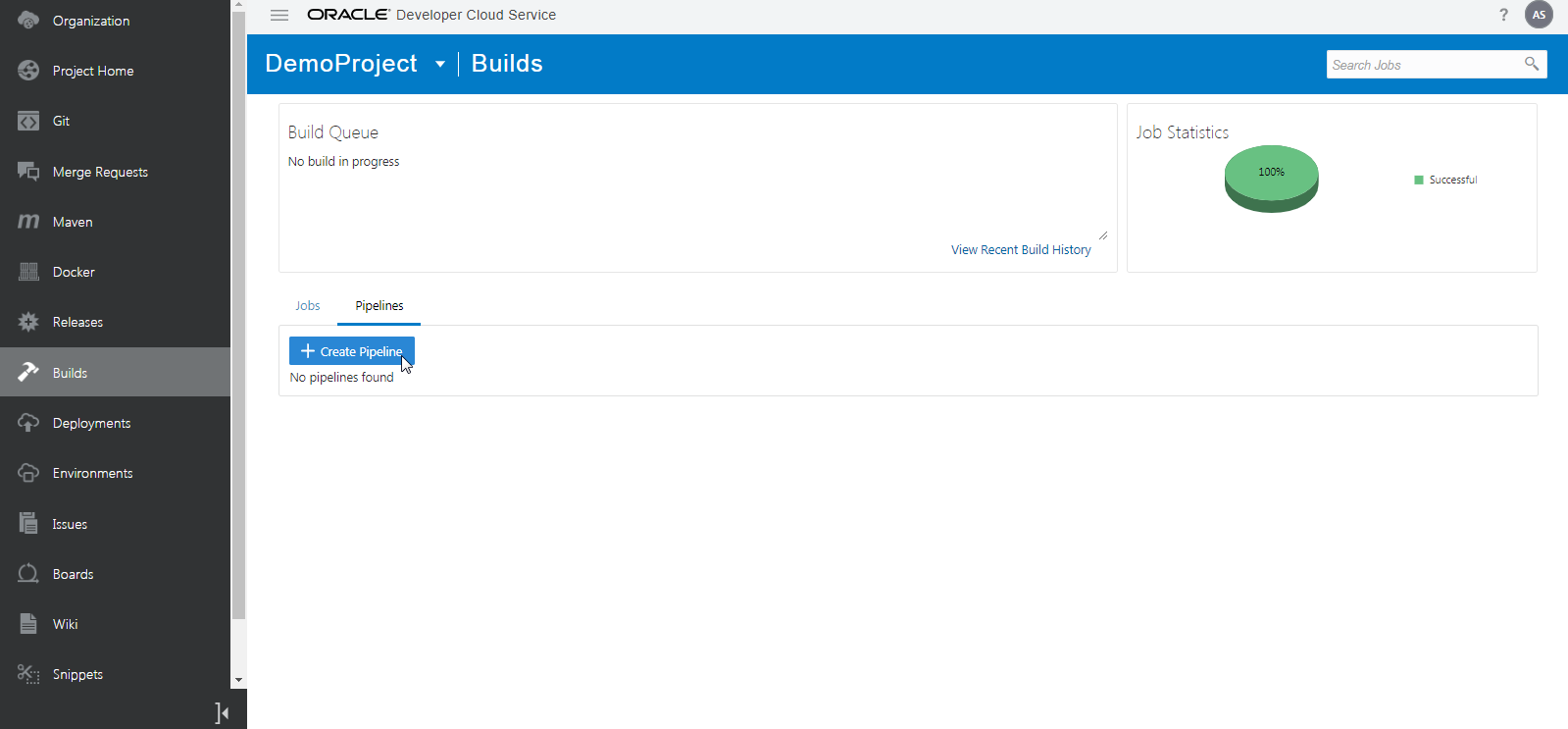

Navigate to the Pipelines tab in the Builds page. Then click the +Create Pipeline button.

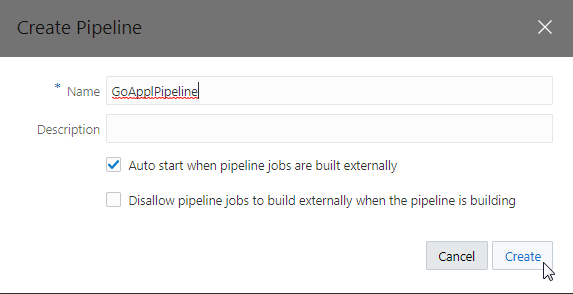

In the Create Pipeline dialog, you can enter the Name as GoApplPipeline. Then click the Create button.

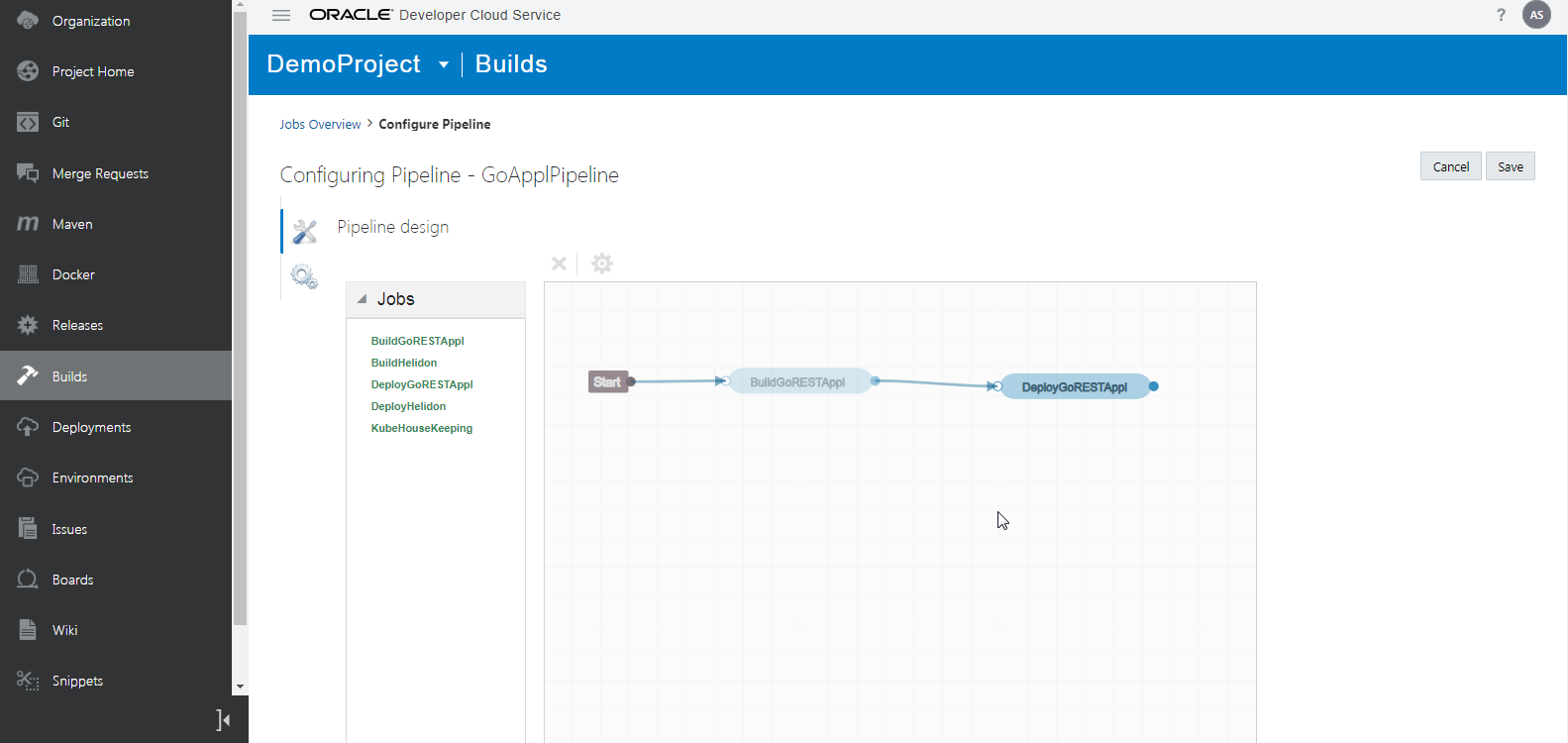

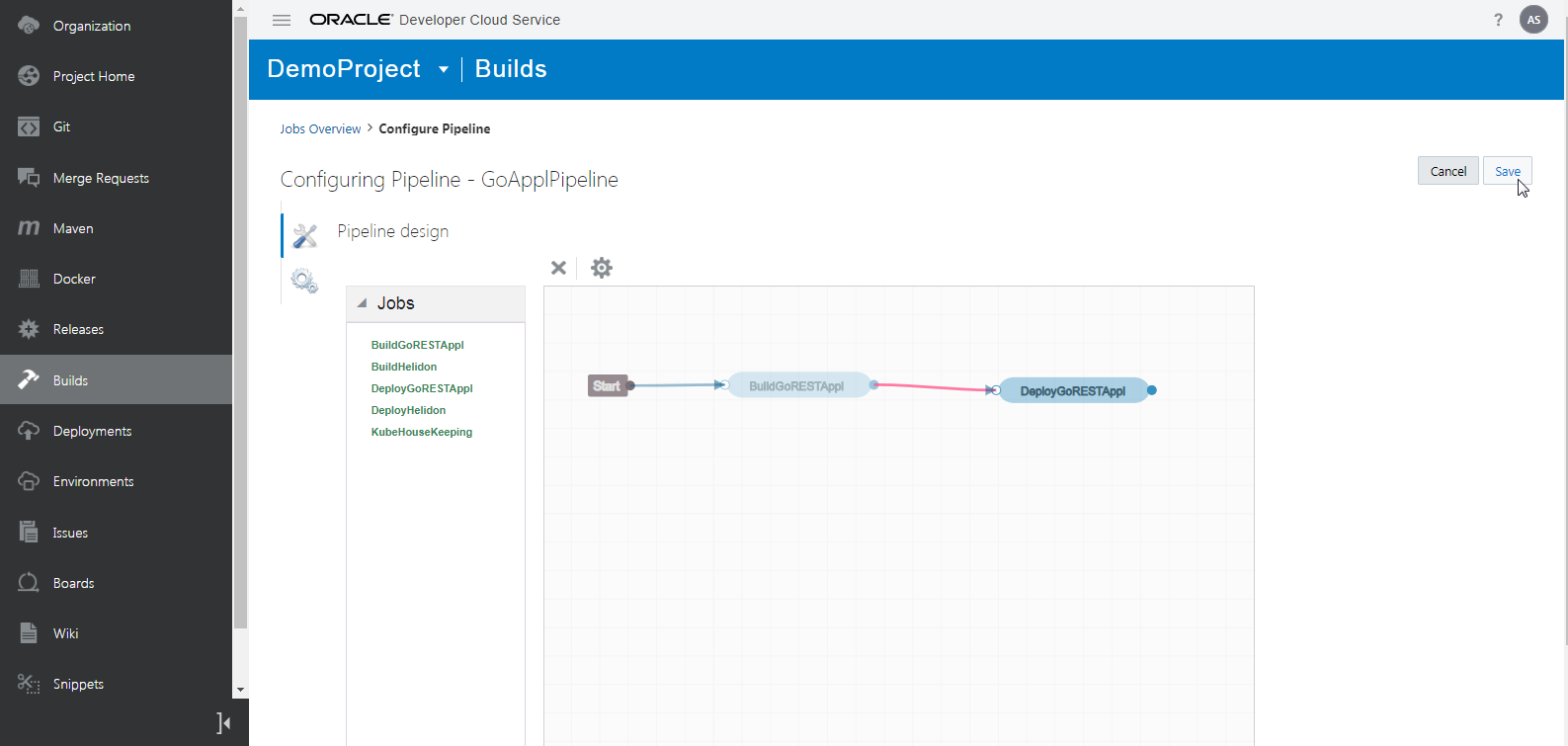

Drag and drop the BuildGoRESTAppl and DeployGoRESTAppl build jobs and then connect them.

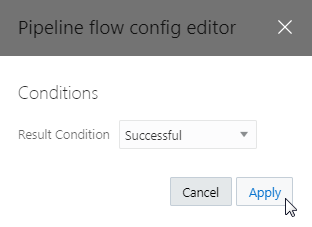

Double click the link that connects the build jobs and select Successful as the Result Condition. Then click the Apply button.



Then click on the Save button.

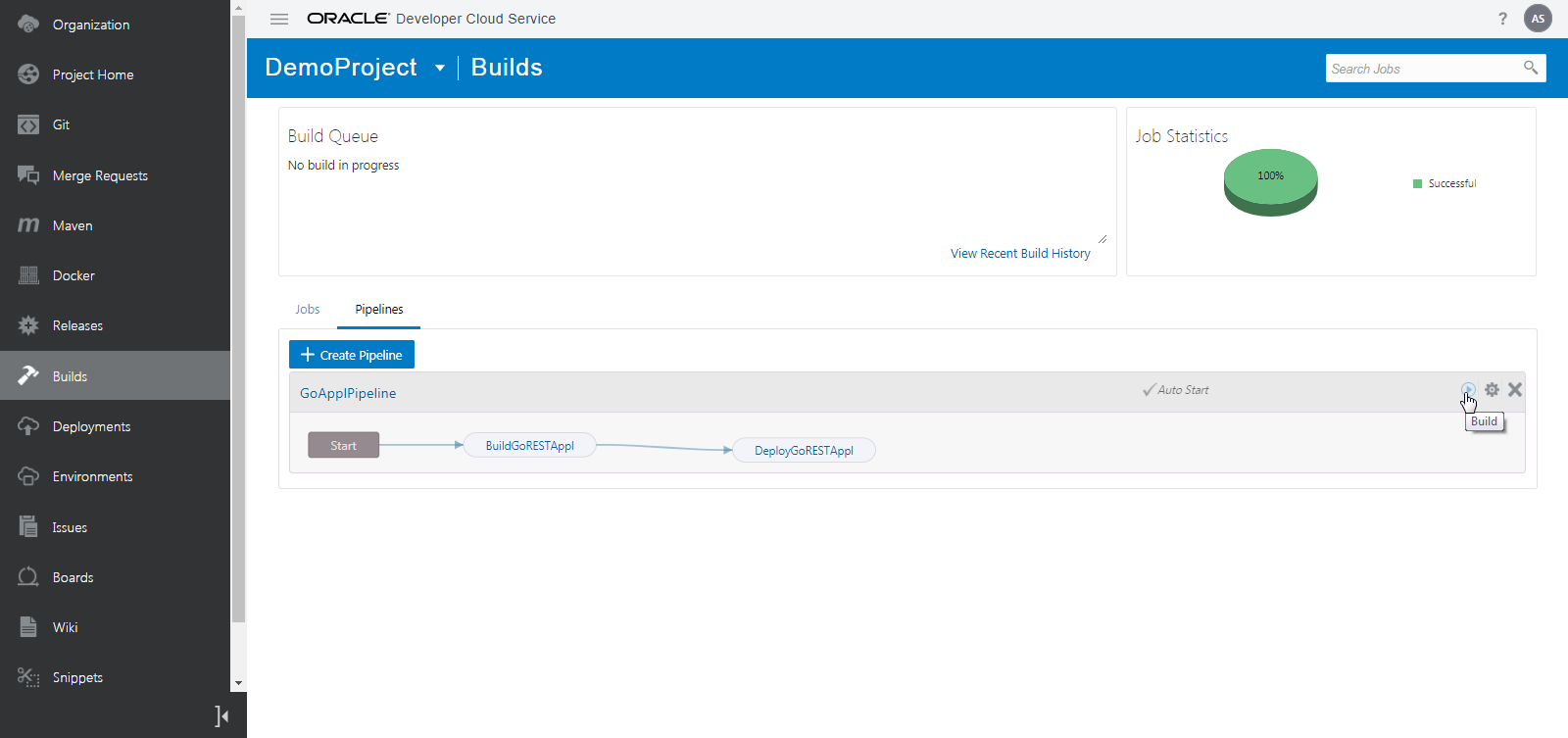

Click the Build button, as shown, to run the build pipeline. The BuildGoRESTAppl build job will be executed first and, if it is successful, then the DeployGoRESTAppl build job that deploys the container on the Kubernetes cluster on Oracle Cloud will be executed next.

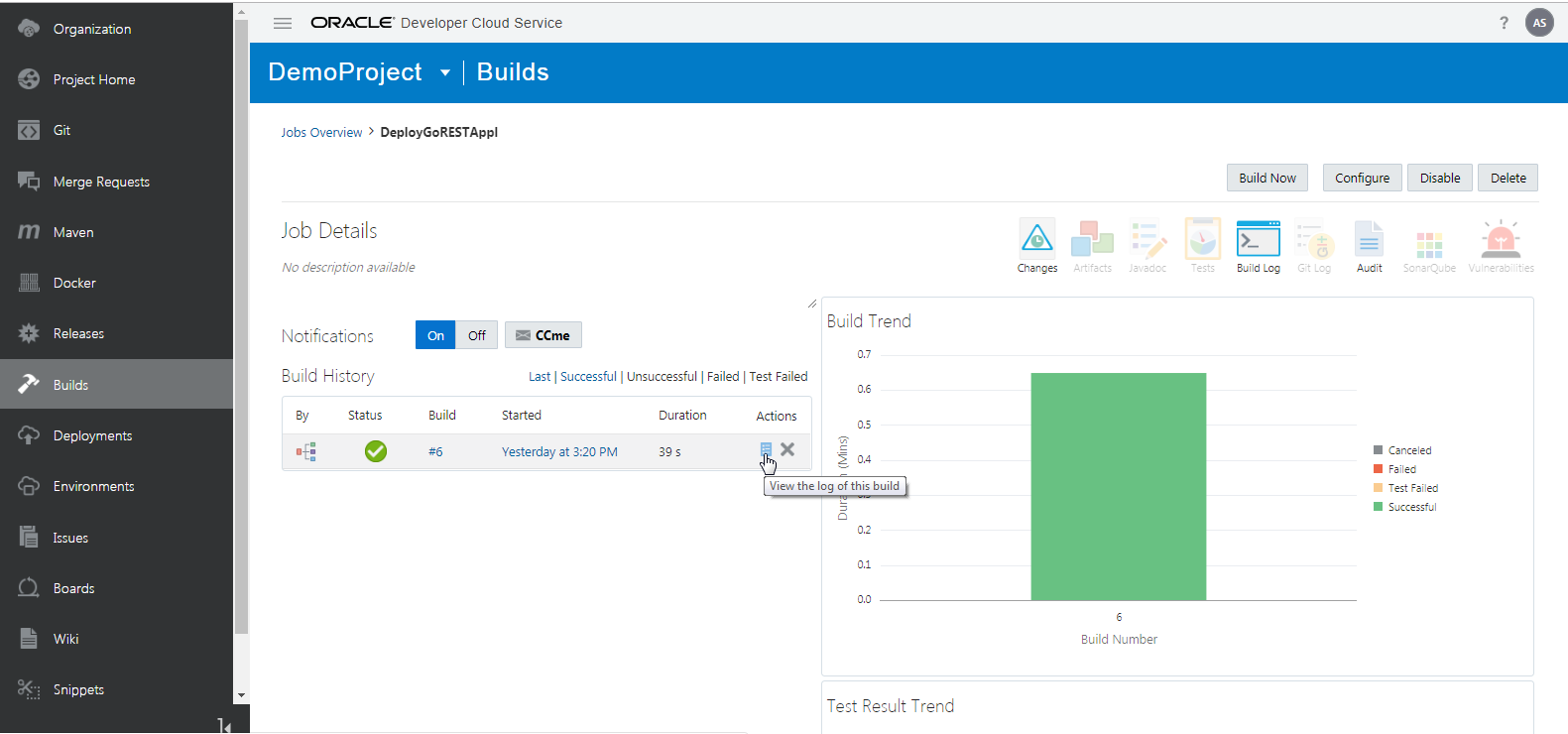

After the jobs in the build pipeline finish executing, navigate to the Jobs tab and click the link for the DeployGoRESTAppl build job.  Then click the Build Log icon for the executed build.

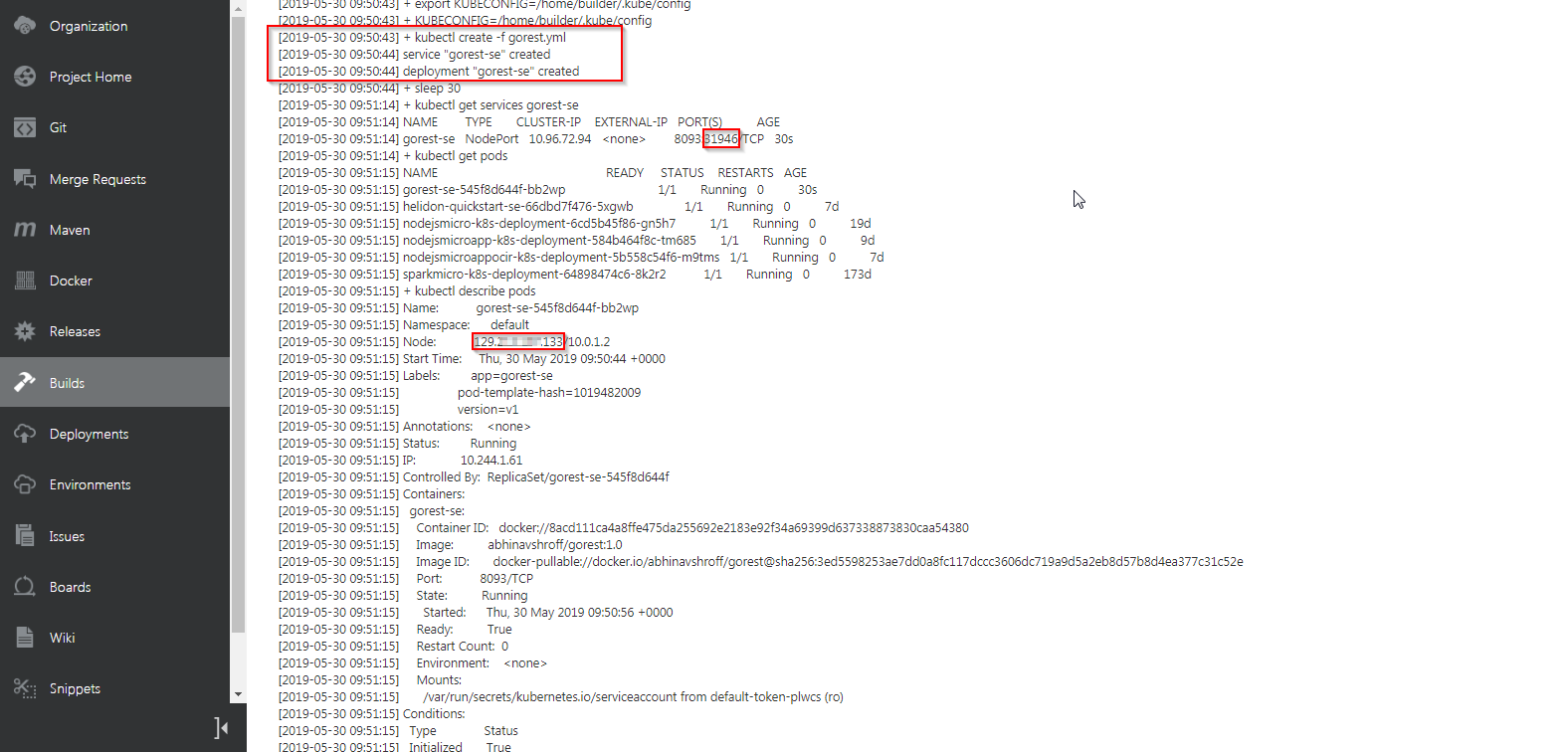

You should see messages that the service and deployment were successfully created.  Search the log for the gorest-se service and deployment that were created on the Kubernetes cluster, and find the public IP address and port to access the microservice, as shown below.



Enter the IP address and port that you retrieved from the log, into the browser using the format shown in the following URL:

http://<retrieved IP address>:<retrieved port>/<your name>

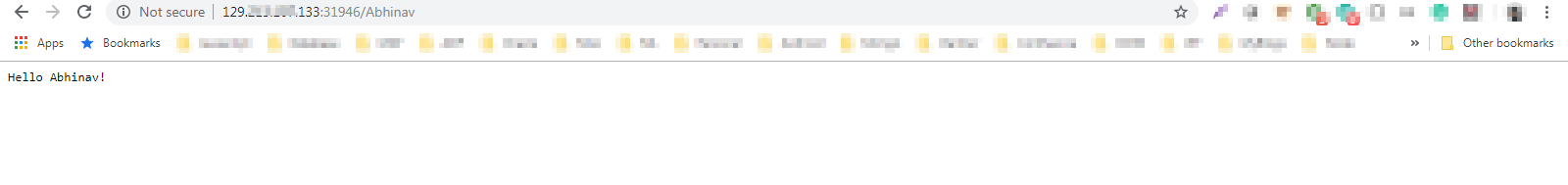

You should see the “Hello <your name>!” message in your browser.



So, you’ve seen how Oracle Developer Cloud can help you manage the complete DevOps lifecycle for your Golang-based REST applications and how out-of-the-box support for Build and Deploy to Oracle Container Engine for Kubernetes makes it easier.

To learn more about other new features in Oracle Developer Cloud, take a look at the What's New in Oracle Developer Cloud Service document and explore the links it provides to our product documentation. If you have any questions, you can reach us on the Developer Cloud Slack channel or in the online forum.

Happy Coding!

**The views expressed in this post are my own and do not necessarily reflect the views of Oracle
