Analyzing our Big Data Lite movie app clickstream data

Since last year's OpenWorld I have posted quite a few articles on our new 12c pattern matching feature:

 To date most of my online demos and tutorials have used a very simple data set consisting of a single table with 60 rows of fictitious trade data. Over the last few months I have been searching around for a slightly bigger and more challenging data set to use. Fortunately, our BIg Data PMs (led by Marty Gubar) have put together a very rich big data schema as part of their recently launched Big Data Virtual Machine that you can download from our OTN web page, see here: http://www.oracle.com/technetwork/database/bigdata-appliance/oracle-bigdatalite-2104726.html.

The data set is based around an online customer movie application. Here is a little background…

Movieplex on otn

Oracle MoviePlex Demo Application

Oracle MoviePlex is a fictitious on-line movie streaming company. Customers log into Oracle MoviePlex where they are presented with a targeted list of movies based on their past viewing behavior. Because of this personalized experience and reliable and fast performance, customers spend a lot of money with the company and it has become extremely profitable.

As the users watch movies, search for their favorite actors, rate their movies the system records all the clicks in a log file. The contents of that log file looks like this:

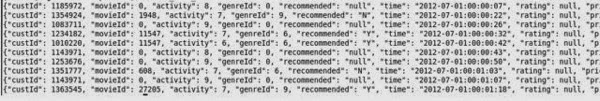

Avro file

In its raw state this information is not very helpful. It needs a lot of processing to convert the various data points into usable information. In many cases companies have been turning to Hadoop and its related Java-based programming language MapReduce to process and convert these types of files into usable information.  Most business users will want to summarise this information by customer and/or movie and then merge this information with other data sets. So how can we make access to and analysis of this type of data much easier? As part of this post I am going to compare the Hadoop-Java-MapReduce approach with an alternative approach using 12c SQL. My objective is not to determine which is solution is the best because each approach has its own camp of supporters. Once we have reviewed the two solutions I will put everything into context and make some recommendations…..so let's bring on the code!

Sessionization using Java

Accessing the Avro file

At the moment In the context of Big Data, everything seem to revolve around Hadoop, MapReduce and Java. It is quite natural for a big data developer to extend their basic map reduce processing to include more complicated requirements. In the case of our movie demo there is a lot of processing that needs to be done using the native features of Hadoop to collect and process the weblog file being generated by our application. There is an excellent video prepared by Marty Gubar (Director of Product Management for Big Data) which explains this process. This is part four of a six-part series that explains the movieplex demo: Part 4. Turn Clicks into Value - Flume & Hive. The movie demo lasts about 5 mins and you can watch here: https://www.youtube.com/watch?v=IwrjJUoUwXY.

The steps shown in the movie explain how to access the avro file and then how to clean the data to provide some interesting additional metrics.

Calculating the sessionization data

 Creating the sessionization analysis is a little more complicated. In fact, it requires 370 lines of Java code.  Here is the Java code we created for doing the sessionization analysis (the code window is scrollable so you can review the very long code sample):

The actual logic for the sessionization analysis is about 100 lines of code as shown here (at s before, the code window is scrollable so you can review the very long code sample):

As you can see from the code listing this requires a strong knowledge of Java and with 370 lines of code, if we decide to change the details of the pattern that we are searching for it is going to be a lengthy process to make the required changes. Making anything changes  to the code to reflect changing business requirements is definitely going to be beyond the skills of your average business analyst and/or data scientists and this might negatively impact the level of project agility.

Making life easier and richer with SQL

My personal view is that sessionization analysis is quite a sophisticated requirement and is best achieved using SQL because the requirements and parameters for the analysis will naturally evolve over time as new questions are triggered by existing answers. Therefore, you need an agile approach to analytics that can deal with constant changing requirements during the data discovery phase.

Accessing the Avro file

First step is to create a DIRECTORY object to access the raw data file:

CREATE DIRECTORY session_file_dir AS '/home/oracle/applog';
GRANT READ, WRTIE ON DIRECTORY session_file_dir to pmuser;

Next I created an external table over the data file. Notice that in the avro file, each key column  has an identifier and a value.

{"custId":1077225"movieId":100"genreId":8"time":"2011-07-30:22:55:32""recommended":"N""activity":6}

The objective for this external table was to keep the processing as simple as possible:

CREATE TABLE RAW_SESSION_DATA
(
  CUST_ID VARCHAR2(20)
, MOVIE_ID VARCHAR2(20)
, GENRE_ID VARCHAR2(20)
, SESSION_DATE VARCHAR2(50)
, RECOMMENDED_ID VARCHAR2(20)
, ACTIVITY_ID VARCHAR2(20)
, RATING_ID VARCHAR2(20)
)
ORGANIZATION EXTERNAL
(
 TYPE ORACLE_LOADER
 DEFAULT DIRECTORY SESSION_FILE_DIR
 ACCESS PARAMETERS
 (RECORDS DELIMITED BY NEWLINE
 NOBADFILE
 NODISCARDFILE
 NOLOGFILE
 FIELDS TERMINATED BY ','
 OPTIONALLY ENCLOSED BY "'"
 MISSING FIELD VALUES ARE NULL)
 LOCATION (SESSION_FILE_DIR: 'movieapp_30months.log')
)
REJECT LIMIT 1;
ALTER TABLE RAW_SESSION_DATA
PROJECT COLUMN REFERENCED;

Cleaning the data

Now the next stage is to clean the data and remove the column identifiers such as custId, movieId, genreId etc. To do this processing I simply used the SQL SUBSTR() function. At the same time I decided to breakout the activity ID column to create unique columns for each type of activity. This approach is useful if you are going to be using the data as part of a data mining project because in many cases it useful to uniquely identify specific attributes. In many cases you will want to create a fact table from this process but in this case I have created a view while I do some basic prototyping:

CREATE OR REPLACE VIEW VW_SESSION_DATA AS SELECT
  SUBSTR(CUST_ID,11) AS CUST_ID
, CASE SUBSTR(MOVIE_ID,11) WHEN 'null' THEN null ELSE SUBSTR(MOVIE_ID,11) END AS MOVIE_ID
, CASE SUBSTR(GENRE_ID,11) WHEN 'null' THEN null ELSE SUBSTR(GENRE_ID,11) END AS GENRE_ID
, TO_DATE(SUBSTR(SESSION_DATE, 9,19), 'YYYY-MM-DD HH24:MI:SS') AS SESS_DATE
, CASE SUBSTR(RECOMMENDED_ID,15) WHEN 'null' THEN null ELSE SUBSTR(RECOMMENDED_ID,16,1) END AS REC_ID
, CASE SUBSTR(ACTIVITY_ID,12) WHEN 'null' THEN null ELSE SUBSTR(ACTIVITY_ID,12,1) END as ACTIVITY_ID
, CASE SUBSTR(RATING_ID,9) WHEN 'null' THEN null ELSE SUBSTR(RATING_ID,10,1) END as RATING_ID
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '1' THEN 'Y' END as act_rate
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '2' THEN 'Y' END as act_complete
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '3' THEN 'Y' END as act_pause
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '4' THEN 'Y' END as act_start
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '5' THEN 'Y' END as act_browse
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '6' THEN 'Y' END as act_list
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '7' THEN 'Y' END as act_search
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '8' THEN 'Y' END as act_login
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '9' THEN 'Y' END as act_logout
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '10' THEN 'Y' END as act_incomplete
, case SUBSTR(ACTIVITY_ID,12,1) WHEN '11' THEN 'Y' END as act_purchase
FROM RAW_SESSION_DATA;

Running a query against this view generates our basic data set that we can then feed into our MATCH_RECOGNIZE clause to create the sessionization result set.

Sessionization

 Is there a better, simpler way to deal with the avro file? Well yes there is. As part of the Database 12c release programme we will be adding in-database support for JSON data. This will allow us to take the raw avro file and access stand query it directly from within the database without the need to go through the complicated cleaning process! At the moment we have not made any collateral (PPTs etc) on this feature publicly available so I can't provide you with any supporting links that will give you more information. However, once this feature is released I will revisit this little demo to explore how the new JSON feature can be used along side SQL pattern matching.

Calculating the sessionization data

The code to calculate the sessionization information is as follows:

SELECT *
FROM vwsession_data
MATCH_RECOGNIZE
 (PARTITION BY cust_id ORDER BY sess_date
  MEASURES match_number() session_id,
    COUNT(*) no_of_events,
    FIRST(sess_date) start_date,
    TO_CHAR(FIRST(sess_date), 'hh24:mi:ss') start_time,
    LAST(sess_date) end_date,
    TO_CHAR(LAST(sess_date), 'hh24:mi:ss') end_time,
    TO_CHAR(ROUND(TO_NUMBER(LAST(sess_date) - FIRST(sess_date)) * 1440), '999,999') duration,
    LAST(activity_id) last_act_id,
    COUNT(act_rate) act_rate,
    COUNT(act_complete) act_complete,
    COUNT(act_pause) act_pause,
    COUNT(act_start) act_start,
    COUNT(act_browse) act_browse,
    COUNT(t(act_list) act_list,
    COUNT(act_search) act_search,
    COUNT(act_login) act_login,
    COUNT(act_logout) act_logout,
    COUNT(act_incomplete) act_incomplete,
    COUNT(act_purchase) act_purchase
 ONE ROW PER MATCH
 PATTERN (strt s+)
 DEFINE
    s as (round(to_number(sess_date - prev(sess_date)) * 1440) <= 5)
 );

This statement uses many of the MATCH_RECOGNIZE features that I have discussed in previous posts. In this specific example I have decided to set the duration between events within a session as 5 minutes. That means if the user does nothing for about  5 minutes then I will assume that a new session has started even if the user has not logged out.

Beyond the basic sessionization model there is another interesting pattern that we can search for within our data set. If a user starts watching a movie then we might not get another event being logged for over two hours. Therefore, we could look for instances where the time between events is less than 150 minutes (assuming most movies last around 2 hours) and there is at least one (or more) "start" event is logged and at least  one (or more) "complete"  event is logged,

PATTERN (strt s* f+ c+)
 DEFINE
 f as act_start = 'Y',
 c as act_complete = 'Y',
 s as (round(to_number(sess_date - prev(sess_date))*1440) <= 150)

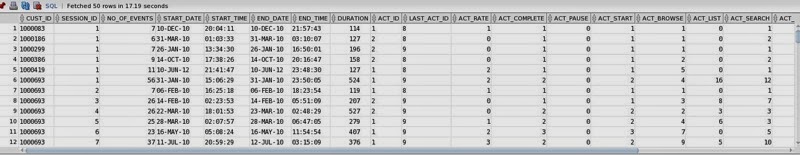

The output from this query is shown below:

Start Complete Data Full

Looking at the results what really jumps out is the level of interaction on the site before, during and after the user has watched a movie. Many of the records that are returned show users searching our movie database, going to their lists of favourite movies and rating the movies they have just watched. All this implies that if we can get customers to begin watching a movie there is a huge knock-on effect in terms of how long they remain on the site and the number of "events" they create while on the site. This is the sort of information that is useful to marketing and campaign management teams.

A different view: Calculating the sessionization data for each movie

While developing the above analysis I began to wonder about analysing the data not from a customer perspective but from the point of view of each movie. This would allow me to look at the session activity over time for each movie and understand the usage patterns across movies and genres. For example, are there certain movies or types of movies that are more or less likely to be rated. Is the process of watching a movie the same across all movies in terms of the events that are registered during a session? There are all sorts of new avenues of analysis that could be created from looking at the data in this way.

So how easy would it be to change the focus of the analysis to movies? Well the code took me approximately 30 seconds to write - actually cut & paste from the customer sessionization example, switch the customer id for the movie id and finally removed a few fields. Here is the new code:

SELECT *
FROM SESSION_DATA td
MATCH_RECOGNIZE
 (PARTITION BY movie_id ORDER BY sess_date
  MEASURES COUNT(*) no_of_events,
     FIRST(sess_date) start_date,
     TO_CHAR(first(sess_date), 'hh24:mi:ss') start_time,
     LAST(sess_date) end_date,
     TO_CHAR(LAST(sess_date), 'hh24:mi:ss') end_time,
     TO_CHAR(ROUND(TO_NUMBER(LAST(sess_date) - FIRST(sess_date)) * 1440), '999,999') duration,
     MIN(activity_id) act_id,
     MAX(activity_id) last_act_id,
     COUNT(act_rate) act_rate,
     COUNT(act_complete) act_complete,
     COUNT(act_pause) act_pause,
     COUNT(act_start) act_start,
     COUNT(act_browse) act_browse,
     COUNT(act_list) act_list,
     COUNT(act_search) act_search,
     COUNT(act_login) act_login,
     COUNT(act_logout) act_logout,
     COUNT(act_incomplete) act_incomplete,
     COUNT(act_purchase) act_purchase
 ONE ROW PER MATCH
 PATTERN (strt s*)
 DEFINE
     s as (ROUND(TO_NUMBER(sess_date - PREV(sess_date))*1440) <= 120)
 ) MR;

The speed at which you can create these additional/alternative result sets is really great!  It is now relatively easy to continue this discovery process by analysing the information by movie genre or any of the other related attributes.

Summary

The main take-away from this post is that (hopefully) I shown how easy it is to use SQL for sessionization analysis.  Firstly in terms of creating the framework to support the normal "sessionization" transformation process: taking the source log file, extracting the data points and then grouping the information by user. The great news is that processing of the source file will be greatly simplified when the JSON feature is released because it will be possible to query the log file in a much simpler way to extract the required data points. Secondly, SQL provides a much simpler and easier way to support the evolutionary of the discovery process. Changing the focus from customer analysis to movie analysis is both quick and easy. I am not convinced that a Java-based approach to data discovery can offer the same level of simplicity and agility but I will let you be the judge of that last statement….

Tuesday Apr 15, 2014

OpenWorld call for Papers closes today!

 Just a gentle reminder - if you have not submitted a paper for this year's OpenWorld conference then there is still just enough time because the deadline is Today (Tuesday, April 15) at 11:59pm PDT. The call for papers website is here http://www.oracle.com/openworld/call-for-papers/index.html and this provides all the details of how and what to submit.

I have been working with a number of customers on some really exciting papers so I know this year's conference is going to be really interesting for data warehousing and analytics. I would encourage everyone to submit a paper, especially if you have never done this before. Right now both data warehousing and analytics are among the hottest topics in IT and I am sure all of you have some great stories that you could share with your industry peers who will be attending the conference. It is a great opportunity to present to your peers and also learn from them by attending their data warehouse/analytics sessions during this week long conference. And of course you get a week of glorious Californian sunshine and the chance to spend time in one of the World's most beautiful waterfront cities.

If you would like any help submitting a proposal then feel free to email during today and I will do my best to provide answers and/or guidance. My email address is keith.laker@oracle.com.

Have a great day and get those papers entered into our OpenWorld system right now!

Monday Mar 24, 2014

Built-in sorting optimizations to support analytical SQL

One of the proof points that I often make for using analytical SQL over more sophisticated SQL-based methods is that we have included specific optimizations within the database engine to support our analytical functions. In this blog post I am going to briefly talk about how the database optimizes the number of sorts that occur when using analytical SQL.

Sort Optimization 1: Ordering Groups

Many of analytical functions include PARTITION BY and/or an ORDER BY clause both of which by definition implies that an ordering process is going to be required. As each function can have its own PARTITION BY-ORDER BY clause this can create situations where lot of different sorts are needed. For example, if we have a SQL statement that included the following:

Rank() Over (Partition by (x) Order by (w))
Sum(a) Over (Partition by (w,x) Order by (z))
Ntile() Over (Partition by (x) Order by (y))
Sum(b) Over (Partition by (x,y) Order by (z))

this could involve four different sort processes to take into account the use of both PARTITION BY and ORDER BY clauses across the four functions. Performing four separate sort processes on a data set could add a tremendous overhead (depending on the size of the data set). Therefore, we have taken two specific steps to optimize the sorting process.

The first step is create the notion of "Ordering Groups". This optimizations looks for ways to group together sets of analytic functions which can be evaluated with a single sort. The objective is to construct a minimal set of ordering groups which in turn minimizes the number of sorts. In the example above we would create two ordering groups as follows:

Screen Shot 2014 03 13 at 13 39 37

This allows us to reduce the original list of sorts down from 4 to just 2.

Sort Optimization 2: Eliminating Sorts

We can further reduce the number sorts that need to be performed by carefully scheduling the execution so that:

  • Ordering groups with sorts corresponding to that in the GROUP BY execute first (immediately after the GROUP BY)
  • Ordering groups with sorts corresponding to that in the ORDER BY execute last (immediately before the ORDER BY)

In addition, we can also eliminate sorts when an index or join method (sort-merge) makes sorting unnecessary.

Optimization 3 : RANK Predicates

Where a SQL statement includes RANK() functions there are additional optimizations that kick-in. Instead of sorting all the data, adding the RANK and then applying the predicate, the RANK predicate is evaluated as part of the sort process. The net result is that fewer records are actually sorted, resulting in more efficient execution.

Summary

Overall, these three optimizations ensure that as few sorts as possible are performed when you include SQL analytical functions as part of your SQL statements.

Thursday Feb 06, 2014

Sessionization analysis with 12c SQL pattern matching is super fast

Over the past six months I have posted a number of articles about SQL pattern matching, as shown here:

Most of these have been related to explaining the basic concepts and along with some specific use cases.

In this post I want to review some of the internal performance tests that we have run during the development of this feature. In part 3 of the series of podcasts I covered a number of use cases for SQL pattern matching such as: stock market analysis, tracking governance-compliance, call service quality and sessionization. The most popular scenarios is likely to be the analysis of sessionization data as this is currently a hot topic when we start considering machine-data and in more general data terms, big data.

To help us create a meaningful test data set we used decided to use the TPC-H schema because it contained approximately seven years of data which equated to approximately 1TB of data. One of the objectives of our performance tests was to compare and contrast the performance and scalability of code using the 12c MATCH_RECOGNIZE clause with code using 11g window functions.

Analysis of Sessionization Data

To make things easy to understand I have divided our sessionization workflow into a number of steps.
Part 1 - For the purposes of this specific use case we defined a session as a sequence of one or more events with the same partition key where the gap between the timestamps is less than 10 seconds - obviously the figure for the gap is completely arbitrary and could be set to any number as required. The 1TB of source data looked like this:

Session_Id User
1 Mary
2 Sam
3 Richard
11 Mary
12 Sam
13 Richard
22 Sam
23 Mary
23 Richard
32 Sam
33 Richard
34 Mary
43 Richard
43 Sam
44 Mary
47 Sam
48 Sam
53 Mary
54 Richard
59 Sam
60 Sam
63 Mary
63 Richard
68 Sam


The following sections compare the use of 11g window functions vs. 12c MATCH_RECOGNIZE clause.
Part 2- To create the first part of the sessionization workflow we took the original source data and used the USER_ID as the PARTITION BY key and the timestamp for the ORDER BY clause. The objective for this first step is to detect the various sessions and assign a surrogate session id to each session within each partition (USER_ID).
This creates an output result set that delivers a simplified sessionization data set as shown here:

NewImage

The 12c SQL to create the initial result set is as follows:

SELECT user_id, session_id start_time, no_of_events, duration
FROM Events MATCH_RECOGNIZE
 (PARTITION BY User_ID ORDER BY Time_Stamp
  MEASURES match_number() session_id,
           count(*) as no_of_events,
           first(time_stamp) start_time,
           last(time_stamp) - first(time_stamp) duration
  ONE ROW PER MATCH
  PATTERN (b s*)
  DEFINE
       s as (s.Time_Stamp - prev(s.Time_Stamp) <= 10)
 )
;

as a comparison here is how to achieve the above using 11g analytical window functions

CREATE VIEW Sessionized_Events as
SELECT Time_Stamp, User_ID,
 Sum(Session_Increment) over (partition by User_ID order by Time_Stampasc) Session_ID
FROM ( SELECT Time_Stamp, User_ID,
 CASE WHEN (Time_Stamp - Lag(Time_Stamp) over (partition by User_ID order by Time_Stampasc)) < 10
 THEN 0 ELSE 1 END Session_Increment
 FROM Events);
SELECT User_ID, Min(Time_Stamp) Start_Time,
 Count(*) No_Of_Events, Max(Time_Stamp) -Min(Time_Stamp) Duration
FROM Sessionized_Events
GROUP BY User_ID, Session_ID;


As you can see the 11g approach using window functions ( SUM() OVER(PARTITION BY…) ) is a little more complex to understand but it produces the same output - i.e. our initial sessionized data set.


Part 3 - However, to get business value from this derived data set we need to do some additional processing.  Typically, with this kind of analysis the business value within the data emerges only after aggregation, which in this case needs to by session. We need to reduce the data set to a single tuple, or row, per session along with some derived attributes, such as:

  • Within-partition Session_ID
  • Number of events in a session
  • Total duration

To do this with Database 12c we can use the MATCH_RECOGNIZE clause to determine how many events are captured within each session. There are actually two ways to do this: 1) we can compare the current record to the previous record, i.e. peek backwards or 2)  we can compare the current record to the next record, i.e. peek forwards.
Here is code based on using the PREV() function to compare the current record against the previous record:

select count(*)
from ( select /* mr_sessionize_prev */ *
 from
 ( select o_pbykey,
session_id,
 start_time,
 no_of_events,
 duration
 from orders_v MATCH_RECOGNIZE
 (
  PARTITION BY o_pbykey
  ORDER BY O_custkey, O_Orderdate
  MEASURES match_number() session_id, count(*) as no_of_events,
           first(o_orderdate) start_time,
           last(o_orderdate) - first(o_orderdate) duration
  PATTERN (b s*)
  DEFINE s as (s.O_Orderdate - prev(O_Orderdate) <= 100)
 )
 )
 where No_Of_Events >= 20
);

Here is code based on using the NEXT() function to compare the current record against the next record:

select count(*)
from ( select /* mr_sessionize_prev */ *
 from
 ( select o_pbykey, session_id, start_time, no_of_events, duration
 from orders_v MATCH_RECOGNIZE
 (
PARTITION BY o_pbykey
ORDER BY O_custkey, O_Orderdate
MEASURES match_number() session_id, count(*) as no_of_events,
         first(o_orderdate) start_time,
         last(o_orderdate) - first(o_orderdate) duration
PATTERN (s* e)
DEFINE s as (next(s.O_Orderdate) - s.O_Orderdate <= 100)
 )
 )
 where No_Of_Events >= 20

Finally we can compare the 12c MATCH_RECOGNIZE code to the 11g code which uses  window functions (which in my opinion is a lot more complex):

select count(*)
from (
 select /* wf */ *
 from (select O_pbykey,
              Session_ID,
              min(O_Orderdate) Start_Time,
              count(*) No_Of_Events,
             (max(O_Orderdate) - Min(O_Orderdate)) Duration
        from (select O_Orderdate,
O_Custkey, o_pbykey,
                     sum(Session_Increment)
                     over(partition by o_pbykey order by O_custkey, O_Orderdate) Session_ID
               from ( select O_Custkey,
                             O_Orderdate,
                             O_pbykey,
                             case when (O_Orderdate –
                             Lag(O_Orderdate)
                                 over(partition by o_pbykey
                                      order by O_custkey, O_Orderdate)) <= 100 -- Threshold
                             then 0 else 1 end Session_Increment
                      from orders_v
                    )
            )
       group by o_pbykey, Session_ID
    )
 where No_Of_Events >= 20


The final output generated by both sets of code (11g using window functions and 12c using MATCH_RECOGNIZE clause ) would look something like this:
border-style: initial; border-width: 0px; display: block; margin-left: auto; margin-right: auto;" title="NewImage.png" src="http://lh6.ggpht.com/-HDaEnake_3o/UrL_AViG4iI/AAAAAAAAA20/WyCX1sPjRVk/NewImage.png?imgmax=800" alt="NewImage" width="598" height="275" border="0">

Part 4 - The performance results for these three approaches (11g window functions vs. MATCH_RECOGNIZE using PREV() vs. MATCH_RECOGNIZE using NEXT() )are shown below. Please note that on the graph the X-axis shows the number of partitions within each test-run and the Y-axis shows the time taken to run each test. There are three key points to note from this graph:
The first is that, in general the 12c MATCH_RECOGNIZE code is between 1.5x and 1.9x faster compared to using window functions, which is good news if you are looking for a reason to upgrade to Database 12c.

MR Performance Results

Secondly, it is clear from the X-axis that as the number of partitions increases the MATCH_RECOGNIZE clause offers excellent scalability and continues to deliver excellent performance. So it performs well and scales well as your data volumes increase.

However, it is important to remember that the 11g window function code shows similar attributes of excellent scalability and excellent performance. If you are using 11g at the moment and you have not considered using Oracle Database to run your sessionization analysis then it is definitely worth pulling that transformation code back inside the database and using window functions to run those sessionization transformations. If you need a reason to upgrade to Database 12c then MATCH_RECOGNIZE does offer significant performance benefits if you are doing pattern matching operations either inside the Oracle Database 11g or using an external processing engine.

Lastly, when you are designing your own MATCH_RECONGIZE implementations and you are using the NEXT() or PREV() functions it is worth investigating if using the alternate function offers any significant performance benefits. Obviously, much will depend on the nature of the comparison you are trying to formulate but it is an interesting area and we would welcome feedback on this specific point based on your own data sets.

In general, if you are using the MATCH_RECOGNIZE clause then I would love to hear about your use case and experiences in developing your code. You can contact me directly either via this blog or via email (keith.laker@oracle.com).
Have fun with MATCH_RECOGNIZE….

Wednesday Feb 05, 2014

OTN Virtual Developer Day Database 12c content now available on-demand

Thank you to everyone who attended the SQL pattern matching session during yesterday's OTN Virtual Developer Day event. We had a great crowd of people join our live workshop session. I hope everyone enjoyed using the amazing platform which the OTN team put together to host the event.

The great news is that all the content from the event is now available for download and you can watch the all on-demand videos from the four tracks (Big Data DBA, Big Data Developer, Database DBA and Database Developer).

The link to fantastic OTN VDD platform is here: https://oracle.6connex.com/portal/database2014/login?langR=en_US&mcc=aceinvite and this is what the landing pad page looks like:

OTNVDD Me

This page will give you access to the keynote session by Tom Kyte and Jonathan Lewis which covered the landscape of Oracle DB technology evolution and adoption.  The content looks at what's next for Oracle Database 12c looking at the high value technologies and techniques that are driving greater database efficiencies and innovation.

You will be able to access the videos, slides from each presentation and a huge range of technical hands-on labs covering big data and database technologies, including my SQL Pattern Matching workshop. If you want to download the the Virtualbox image for the Database tracks it is available here: http://www.oracle.com/technetwork/database/enterprise-edition/databaseappdev-vm-161299.html (this contains everything you need to run my SQL Pattern Matching workshop).

While you doing the workshop, if you have any questions then please feel free to email me - keith.laker@oracle.com.

Enjoy.

Friday Jan 17, 2014

StubHub's Data Scientists reap benefits of integrated approach….

We have released yet another great video customer video, this time with Stubhub.

Many customers are still pulling data out of their data warehouse and shipping it to specialised processing engines so they can mine their data, run spatial analytics and/or built multi-dimensional cubes. The problem with this approach, as the team at Stubhub points out, is that typically when you move the data to these specialised engines you have to work with a subset of the data that is sitting in your data warehouse. When you work with a subset of data you immediately start to impose compromises on your analytical workflows. If you can't work with all your data then you can't be sure that your analytical model is as good as it could be and that could mean losing customers or missing out on additional revenue.

The other problem comes from everyone using their own favourite tool to do their analysis: how do you share your discoveries, how do you develop a high level of corporate-wide analytical skills?

Stubhub asked Oracle to help them resolve these two key problems...

[Read More]

Thursday Dec 19, 2013

SQL Analytics Part 2- Key Concepts

This post continues on from my first post on analytical SQL "introduction to SQL for reporting and analysis" which looked at the reasons why it makes sense to use analytical SQL in your data warehouse and operational projects.  In this post we are going to examine the key processing concepts behind analytical SQL.

One of the main advantages of Oracle's SQL analytics is that the key concepts are shared across all functions - in effect we have created a unified SQL framework for delivering analytics. These concepts build on existing SQL features to provide developers and business users with a framework that is both flexible and powerful in terms of its ability to support sophisticated calculations. There are four key concepts that you need to understand when implementing features and functions relating to SQL analytics:

  1. Process order
  2. Result-set Partitions
  3. Windows
  4. Current Row

Let's look at each of these topics in more detail.

1) Processing order.

The execution workflow for SQl statements containing analytical SQL is relatively simple:  first all the HAVING, GROUP BY and JOIN predicates are processed. The output from this step is then passed to the analytical functions so all the calculations can be applied. This typically involves the use of window functions which are applied based on the partitions that have been defined with analytic functions applied to each row in each partition. Finally the ORDER BY clause is processed to provide control over the final output. It is useful to keep this workflow in your mind when you are building your analytical SQL because it will help you understand the inputs flowing into your analytical functions and the resulting output.

2) Result-set partitions

Oracle's analytic functions allow the input data set to be divided into groups of rows which are referred to as "partitions". It is important to note that in this context the term "partition" is completely unrelated to the table partition feature.

These analytical partitions are created after the groups defined with GROUP BY clauses and are can be used by any analytical aggregate functions such as sums and averages. The partitions can be based on any column that is part of the the input data  set and individual partitions can be any size. It is quite possible to create a single partition contain all the rows from the initial query result set or create a small number of very large partitions or a large number of very small partitions where each partition just contains a few rows.

3) Windows

For each row in a partition it is possible to define a window over the data which determines the range of rows used to perform the calculations for the current row (the next section will explain the concept of the "current row")/ The size of a window can be based on either a physical number of rows or a logical interval, which is typically time-based. The window has a starting row and an ending row and depending on how the window is defined it may move at only one end or, in some cases, both ends.

Physical windows

For example a cumulative sum function would have its starting row fixed at the first row in the partition and the ending row would then slide from the starting row all the way to the last row of the partition to create a running total over the rows in the partition.

SELECT Qtrs
, Months
, Channels
, Revenue
, SUM(Revenue) OVER (PARTITION BY Qtrs) AS Qtr_Sales
, SUM(Revenue) OVER () AS Total_Sales
FROM sales_table


Window Fixed 1

Logical windows

f the data set contains a date column then it is possible to use logical windows by taking advantage of Oracle’s built-in time awareness.  A good example of window where the start row changes is the calculation of a moving average. In this case both the starting and end points slide so that a constant physical or logical range is maintained during the processing. The example below creates a four-period moving average and the images show the current-row, which is identified by the arrow, and the moving window, which is marked as the pink area :

Window 1 Window 2
Window 3 Window 4
Window 5 Window 6

The concept of a "window" is very powerful and provides a lot of flexibility in terms of being able to interact with the data. A window can be set as large as all the rows in a partition. At the other extreme it could be just a single row. Users may specify a window containing a constant number of rows, or a window containing all rows where a column value is in a specified numeric range. Windows may also be defined to hold all rows where a date value falls within a certain time period, such as the prior month.

When using window functions, the current row is included during calculations, so you should only specify (n-1) when you are dealing with n items - see the next section for more information….

4) Current Row

Each calculation performed with an analytic function is based on a current row within a partition. The current row serves as the reference point and during processing it begins at the starting row, moves throw the following rows until the end row of the window is reached. For instance, a centered moving average calculation could be defined with a window that holds the current row, the six preceding rows, and the following six rows. In the example below the calculation of a running total would be the result of the current row plus the values from the preceding two rows. At the end of the window the running total will be reset. The example shown below creates running totals within a result set showing the total sales for each channel within a product category within year:

SELECT calendar_year
, prod_category_desc
, channel_desc
, country_name
, sales
, units
, SUM(sales) OVER (PARTITION BY calendar_year, prod_category_desc, channel_desc order by country_name) sales_tot_cat_by_channel
FROM . . .

SQL A Current Row

Summary

This post has outlined the four main processing concepts behind analytical SQL. The next series of posts will provide an overview of the key analytical features and functions that use these concepts. In the next blog post we will review the analytical SQL features and techniques that are linked to enhanced reporting which includes: windowing, lag-lead, reporting aggregate functions, pivoting operations and data densification for reporting and time series calculations. Although these topics will be presented in terms of data warehousing, they are actually applicable to any activity needing analysis and reporting.

If you have any questions or comments about analytical SQL then feel free to contact me via this blog.

Technorati Tags: , , , ,

Wednesday Nov 27, 2013

Read-All-About-It: new weekly Oracle Data Warehousing newspaper

Thanks to Brendan Tierney for bringing this excellent online automated news service to my attention….

For a long time I have been wondering how to pull together all the articles from my favourite Twitter feeds, Facebook pages and blogs. Well thanks to Brendan I have discovered a service called Paper.li. This weekend I spent some time setting up feeds from all my favourite sources related to data warehousing, big data. Exadata and other related Oracle technologies. The result is the "#Oracle DW-Big Data Weekly Roundup" which is designed to "keep you up to date on all the weekly sql analytics, data warehousing and big data news from # Oracle". The newspaper is refreshed every Sunday night so that it is ready for Monday morning to read over breakfast. It is the perfect way to start the working week….



Newspaper


if you want to subscribe to this weekly newspaper then go here: http://paper.li/OracleBigData/1384259272 and click on the red SUBSCRIBE link in the top right region of the screen. To give you some guidance on the where all this content is coming from, I am pulling articles from the following sources:

  • Oracle Twitter accounts
    • OracleBigData
    • Oracle Database
    • SQLMaria (Optimizer)
    • CharlieDataMine (Advanced Analytics)
    • NoSQL Database
    • SQL Developer
    • Hardware team
    • BI technology
    • Profit Online Magazine
    • Mark Hornick (R Enterprise)
    • Oracle University
  • Oracle Blogs
    • Data Warehousing
    • Data Mining
    • R
  • Oracle Facebook pages
    • Data Warehousing and Big Data page

Looking for feedback on how useful this is to people as we have so many ways to communicate with you it is good to know what works and what does not work.
If you want to subscribe to Brendan's data mining/analytics newsletter it is here: http://paper.li/brendantierney/1364568794.

Now I am off to investigate creating the same thing on Flipboard for all you iPad/iPhone and Android users…..hope to have an update for you on this very soon so stay tuned!

Thursday Nov 14, 2013

Data Scientist Boot camp (Skills and Training)

As almost everyone is interested in data science, take the boot camp to get ahead of the curve. Leverage this free Data Science Boot camp from Oracle Academy to learn some of the following things:

  • Introduction: Providing Data-Driven Answers to Business Questions
  • Lesson 1: Acquiring and Transforming Big Data
  • Lesson 2: Finding Value in Shopping Baskets
  • Lesson 3: Unsupervised Learning for Clustering
  • Lesson 4: Supervised Learning for Classification and Prediction
  • Lesson 5: Classical Statistics in a Big Data World
  • Lesson 6: Building and Exploring Graphs

You will also find the code samples that go with the training and you can get of to a running start.


Friday Nov 01, 2013

SQL analytical mash-ups deliver real-time WOW! for big data

One of the overlooked capabilities of SQL as an analysis engine, because we all just take it for granted, is that you can mix and match analytical features to create some amazing mash-ups. As we move into the exciting world of big data these mash-ups can really deliver those "wow, I never knew that" moments.

While Java is an incredibly flexible and powerful framework for managing big data there are some significant challenges in using Java and MapReduce to drive your analysis to create these "wow" discoveries. One of these "wow" moments was demonstrated at this year's OpenWorld during Andy Mendelsohn's general keynote session.

Here is the scenario - we are looking for fraudulent activities in our big data stream and in this case we identifying potentially fraudulent activities by looking for specific patterns. We using geospatial tagging of each transaction so we can create a real-time fraud-map for our business users.

OOW PM  2

Where we start to move towards a "wow" moment is to extend this basic use of spatial and pattern matching, as shown in the above dashboard screen, to incorporate spatial analytics within the SQL pattern matching clause. This will allow us to compute the distance between transactions. Apologies for the quality of this screenshot….hopefully below you see where we have extended our SQL pattern matching clause to use location of each transaction and to calculate the distance between each transaction:

OOW PM  4

This allows us to compare the time of the last transaction with the time of the current transaction and see if the distance between the two points is possible given the time frame. Obviously if I buy something in Florida from my favourite bike store (may be a new carbon saddle for my Trek) and then 5 minutes later the system sees my credit card details being used in Arizona there is high probability that this transaction in Arizona is actually fraudulent (I am fast on my Trek but not that fast!) and we can flag this up in real-time on our dashboard:

OOW PM  3

In this post I have used the term "real-time" a couple of times and this is an important point and one of the key reasons why SQL really is the only language to use if you want to analyse  big data. One of the most important questions that comes up in every big data project is: how do we do analysis? Many enlightened customers are now realising that using Java-MapReduce to deliver analysis does not result in "wow" moments. These "wow" moments only come with SQL because it is offers a much richer environment, it is simpler to use and it is faster - which makes it possible to deliver real-time "Wow!". Below is a slide from Andy's session showing the results of a comparison of Java-MapReduce vs. SQL pattern matching to deliver our "wow" moment during our live demo.

OOW PM  1

 You can watch our analytical mash-up "Wow" demo that compares the power of 12c SQL pattern matching + spatial analytics vs. Java-MapReduce  here:

OOW PM  5

You can get more information about SQL Pattern Matching on our SQL Analytics home page on OTN, see here http://www.oracle.com/technetwork/database/bi-datawarehousing/sql-analytics-index-1984365.html

You can get more information about our spatial analytics here: http://www.oracle.com/technetwork/database-options/spatialandgraph/overview/index.html

If you would like to watch the full Database 12c OOW presentation see here: http://medianetwork.oracle.com/video/player/2686974264001


Wednesday Oct 30, 2013

Oracle Magazine: Getting started with SQL Analytics

I am currently working on a series of podcasts covering the broad categories of our SQL analytical functions and features and while I was doing some research I came across of series of four articles in the Oracle Magazine.

This series of article is written by Melanie Caffrey who is a senior development manager at Oracle. She is a coauthor of Expert PL/SQL Practices for Oracle Developers and DBAs (Apress, 2011) and Expert Oracle Practices: Oracle Database Administration from the Oak Table (Apress, 2010).

The four articles are under the banner "Technology: SQL 101" and parts 9, 10, 11 and 12 cover SQL analytics. Here are the links to the four articles:

The articles cover topics such as GROUP BY, SUM, AVG, HAVING, window functions, RANK, FIRST, LAST, LAG, LEAD etc.

The great news is that  you can try out the examples in this series. All you need is access to an Oracle Database instance. All the schemas, data sets and SQL statements that you will need can be downloaded from a link included in the January article.

 I hope you find this series of articles useful.

Wednesday Jul 17, 2013

Oracle: Big Data at Work

There is a lot of hype around big data, but here at Oracle we try to help customers implement big data solutions to solve real business problems. For those of you interested in understanding more about how you can put big data to work at your organization, consider joining these events:

San Jose | August 5 - 6
Marriott San Jose
301 S Market St, San Jose, California 95113
Event Registration Page
Chicago | August 7 - 8
The Westin Michigan Avenue
909 N Michigan Ave, Chicago, IL 60611

New York | August 12 - 13
Marriott Marquis Times Square
1535 Broadway, New York, NY 10036
Event Registration Page

Enjoy!

Wednesday Feb 20, 2013

Looking for tools to solve your big data problems?

Look no further, Infosys today announced its Infosys BigDataEdge developer platform to drive value from your big data stack.

By empowering business users to rapidly develop insights from vast amounts of structured and unstructured data, better business decisions can be made in near real-time. With Infosys BigDataEdge, enterprises can reduce the time taken to extract information by up to 40 percent and generate insights up to eight times faster.

Read More.

Wednesday Jan 30, 2013

Parallel R: Quick Ways Model More

Introduction

I am less and less often mistaken for a pirate when I mention the R language.  While I miss the excuse to wear an eyepatch, I'm glad more people are beginning to explore a statistical language I've been touting for years.  When it comes to plotting or running complex statistics in a single line of code, R is a great tool to have.  That said, there are plenty of pitfalls for the casual or new user: syntax, learning to write vectorized code, or even just knowing which "apply" function you really should choose.

  I want to explore a slightly less-often considered aspect of R development: parallelism.  Out of the box, R can seem very limited to someone used to working on compute clusters or even a multicore server.  However, there are a few tricks we can leverage to get the most out of R on everything from a personal workstation to a Hadoop cluster.

 R is Single-Threaded

The R interpreter is -- and likely always will be -- single-threaded.  This means loading data frames is done in a single thread.  So is building your linear model, or generating that pretty surface plot.  Even on my laptop, that's a lot of threads to not use for modeling.  No matter how much my web browser might covet those cycles, I'd like to use them for work.

Rather than a complex multithreaded re-implementation, the R interpreter offers a number of ways to allow users to selectively apply parallelism.  Some of these approaches leverage MPI libraries and mirror that message passing approach.  Others allow a more implicit parallelism via "foreach" or "apply" constructs. We'll just focus on a pair of strategies using the parallelism that's been included in R since it's 2.14.1 version: the parallel library.

 Setting The Stage for Parallel Execution

We're going to need to load a few libraries into our R session before we can execute anything outside of our single-thread.  We'll use the doParallel and foreach because they allow us to focus on what to parallelize rather than how to coordinate our threads.

> data(iris)
library(parallel)
library(iterators)
library(doParallel)
library(foreach)

Knowing that calculations in R will be single-threaded, we want to use the parallel package to operate on logical subsets of the data simultaneously.  For example, I loaded a set of data about Iris which contains a number of different species.  One way I might want to parallelize is to fit the same each species simultaneously.  For that, I'm going to have to split the data by species:

> species.split <- split(iris, iris$Species)

 This gives us a list we can iterate over -- or parallelize.  From here on out, it's simply a question of deciding what resources we want to leverage: local CPUs or remote hosts.

FORKs and SOCKs

We're going to use the makeCluster function to bind together a set of computational resources.  But first we need to decide: do we want to use only local CPUs, or is it necessary to open up socket connections to other machines distribute our workload?  In the former case we'll use makeCluster to create what's called a FORK cluster (in that it uses UNIX's fork call to create slaves).  In the latter, we'll create a SOCK cluster by opening up sockets to a list of remote hosts and starting slave processes on them.

Here's a FORK cluster which uses all my cores:

> cl <- makeCluster(detectCores())
registerDoParallel(cl)

And here's a SOCK cluster across three nodes (password-less SSH is required)

> hostlist <- c("10.0.0.1", "10.0.0.2", "10.0.0.3")
cl <- makeCluster(hostlist)
registerDoParallel(cl)

In each case, I call registerDoParallel to bind this cluster to the %dopar% operator.  This is the operator which will let us easily iterate in parallel.

Running in Parallel

Once we've got something to iterate over and a cluster with which to do it, modeling in parallel becomes straightforward.  Suppose I want to fit a model of sepal length as a linear combination of petal characteristics.  In that case, the code is simply:

> species.models <- foreach(i=species.split) %dopar% {
m<-lm(i$Sepal.Length ~ i$Petal.Width*i$Petal.Length);
return(m)
}

But I'm not just restricted to fitting linear models on my little cluster.  I can run k-means clustering for several different k simultaneously using basically the same block:

> species.clusters<- foreach(i=2:5) %dopar% {
km <- kmeans(iris, i);
return(km)
}

When I'm done with my block, I can just call stopCluster(cl) to ensure my processes terminate and I'm not hogging resources.

Using Hadoop

Finally, there will be situations in which I need to deploy in parallel against much larger datasets -- specifically, datasets stored in HDFS.  Both Hive and Pig will let me run an R script as part of a streaming process.  In Hive, the TRANSFORM operator will send data to an R Script.  In Pig, you can use theSTREAM operator to send a whole bag to an R script.  However, you can't stream from within Pig'sFOREACH blocks, so I occasionally use a UDF which invokes R scripts for me.

Regardless of the method you choose to send HDFS data to an R process, it's important to make sure your R script can consume data streaming from standard input.  I find the most expedient way of doing this via the file function.  A typical script might start:

#! /usr/bin/env Rscript
#Connection to STDIN for reading a data frame
con <- file(description="stdin")
my.data.frame <- read.table(con, header=FALSE, sep=",")

Summary

We've covered several ways to push R beyond the the bounds of its single-threaded core.  There are forking and socket mechanisms for spreading our work around, not to mention tricks for leveraging the power of Hadoop Streaming.  In each case, however, one thing stands out: we must be smart as modelers and understand what can and should be done in parallel.

[Read More]

Monday Jan 28, 2013

First Oracle BIWA Data Scientists Certified

For those who attended the BIWA Summit a few weeks ago, you would have seen the data scientist certification. BIWA just listed the first batch of data scientists it certified:

Instructor Level Certificate  - Brendan Tierney

Oracle Data Scientist Certificate
Don Ferguson, CherryRoad Technologies
Jorge Anicama, IBM (GBS)
Tim Vlamis, Vlamis Software Solutions
Vijayalakshmi Muthukrishnan, Motorola
Sicheng Liu, Deloitte Consulting
Avik Bhattacharya, Printpack Inc.
Ari Kaplan, Ariball
Paul Mitchell, Oracle

Associate Level
Suresh Anand, Sashatech LLC

Participation Certificate
Ahmed Kopap
Ekine Akuiyibo
Khader Mohiuddin

More on the program, see here: http://oraclebiwasig.blogspot.com/2013/01/oracle-data-scientist-at-biwa-summit.html


About

The data warehouse insider is written by the Oracle product management team and sheds lights on all thing data warehousing and big data.

Search

Archives
« April 2014
SunMonTueWedThuFriSat

2
4
5
6
7
8
9
10
11
12
13
14
16
18
19
20
21
23
24
25
26
27
28
29
30


Today
