Using Oracle Cloud Infrastructure with Ansible Tower and AWX

Nabeel Al-Saber
Principal Cloud Engineer

Red Hat Ansible Tower and AWX can centralize and control your IT infrastructure with a visual dashboard, role-based access control, job scheduling, integrated notifications, and graphical inventory management. Its task engine is built on Ansible. AWX is the open source community project and the upstream project for Tower.

Oracle Cloud Infrastructure (OCI) supports installing AWX quickly on Oracle Compute instance using the Resource Manager service. My colleague Jason Rothstein from the Oracle Managed Cloud services team contributed the AWX installation solution.

Ansible AWX makes it easy to run and manage your Oracle Cloud Infrastructure using the Ansible Modules Collection. This collection was released in 2020 and highlighted in Latest Updates on Oracle Ansible Modules and Comparison with Terraform. It supports all OCI services, and it has an inventory plugin that you can use to query the Compute instances and the database instances.

This blog explains how to set up and use the OCI modules and the inventory plugin with Ansible Tower.

Prepare your project

To use an inventory plugin from a collection in Ansible Tower, we need to source it from a project. A project within Ansible Tower is the integration of a source control repository, such as a Git repository. In Ansible Tower, projects pull Ansible playbooks, variables, and inventories.

The contents of my source control repository are simple:

├── collections
│   └── requirements.yml
└── inventory.oci.yml
└── install_python_sdk.yml

The inventory.oci.yml file contains the following details for the inventory plugin:

$ cat inventory.oci.yml
plugin: oracle.oci.oci
regions: all
fetch_db_hosts: true

For more options, you can refer to the dynamic inventory documentation. No details of the OCI instance that we want to connect to or any credentials are defined here. Those details are configured within Ansible Tower later.

You need the collections or requirements.yml file so that Ansible Tower can download the collection and, therefore, the inventory plugin. Otherwise, we have to manually install and maintain the collection on all of our Ansible Tower nodes.

Create a requirements file at collections or requirements.yml that looks like the following string:

$ cat collections/requirements.yml
collections:
  - name: oracle.oci

The OCI collection depends on the OCI Python SDK to run. To install the SDK, you have the following options:

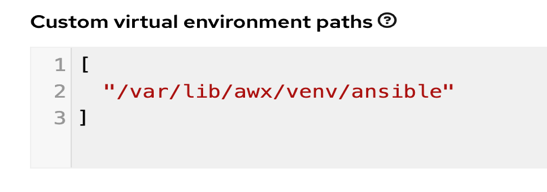

  • Create a tower virtual environment and use it when running the playbooks.

  • Use a playbook to install the SDK in the current environment.

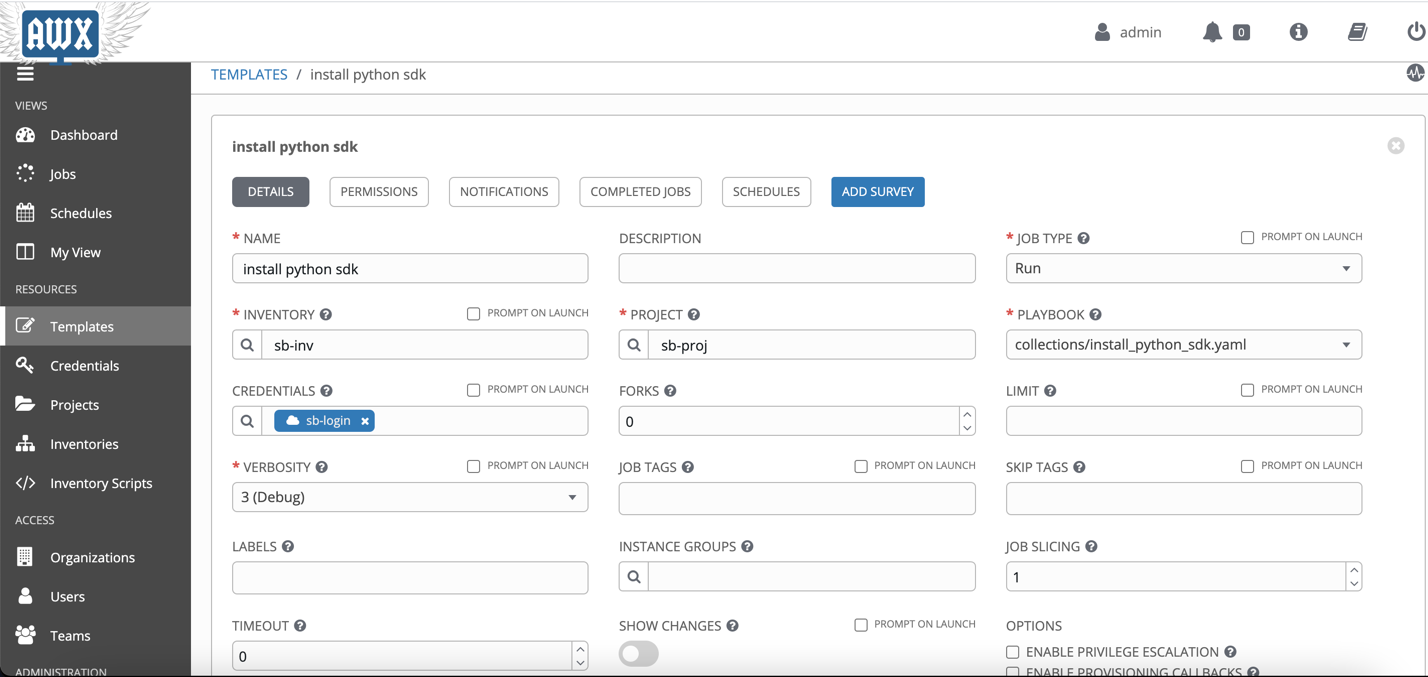

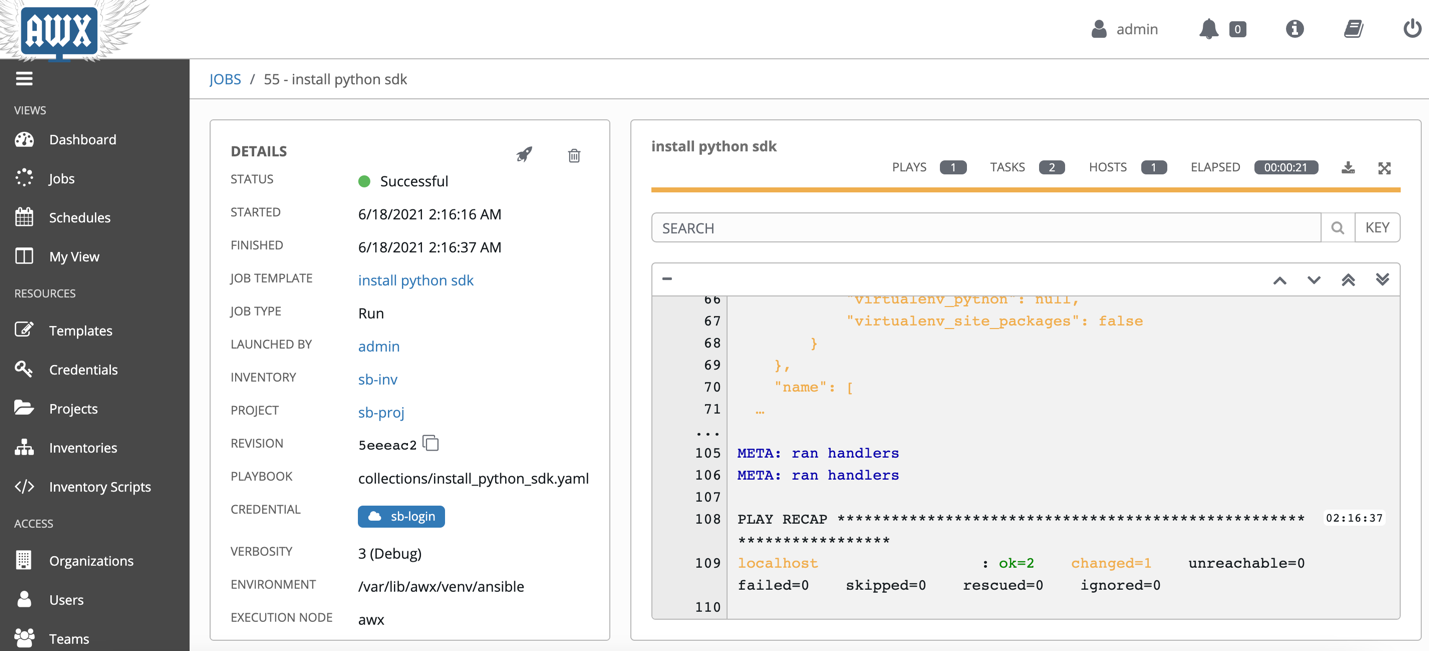

The following example playbook shows how to install the SDK in the current environment:

$ cat install_python_sdk.yml
---
- name: Installing oci python library using Ansible pip module
  pip:
    name: oci

Update the OCI Python SDK regularly to get new features supported in Oracle Cloud modules.

When we push this configuration into the source control repository, we can create a project in Ansible Tower referencing the repository. The following example links Ansible Tower to my GitHub repository. Note the SCM URL. If the repository is private, we can specify a credential and set a specific branch, tag, or commit to pull from.

A screenshot of the OCI Collection page.

Create the OCI credential

The configuration in our repository doesn’t include credentials to use with OCI. So, we create a credential in Ansible Tower to define those values. Looking at the OCI inventory plugin documentation, we can see that we can set several environment variables to define the connection details, including the following example:


OCI_CONFIG_FILE, OCI_USER_KEY_FILE and OCI_USER_KEY_PASS_PHRASE

However, in Ansible Tower, there’s no credential type for OCI where we can enter these details. Luckily for these use cases, Ansible Tower allows us to define custom credential types.

  1. Go to Administration, Credential Types, and then New Credential Type.

  2. Copy the following fields for Input Configuration:


    fields:
      - id: user_ocid
        type: string
        label: User OCID
      - id: fingerprint
        type: string
        label: Fingerprint
      - id: tenant_ocid
        type: string
        label: Tenant OCID
      - id: region
        type: string
        label: Region
      - id: private_user_key
        type: string
        label: Private User Key
        secret: true
        multiline: true
    required:
      - user_ocid
      - tenant_ocid
      - region
      - fingerprint
      - private_user_key


If the private user key uses a passphrase, you can add that field in the input configuration and set it as an environment variable in the injector configuration.

The credentials are exposed as environment variables of the same name. Add the following code in the Injector Configuration box:

env:
  OCI_CONFIG_FILE: '{{ tower.filename.config }}'
  OCI_USER_KEY_FILE: '{{ tower.filename.keyfile }}'
file:
  template.config: |-
    [DEFAULT]
    user={{ user_ocid }}
    fingerprint={{ fingerprint }}
    tenancy={{ tenant_ocid }}
    region={{ region }}
  template.keyfile: '{{ private_user_key }}'

With the custom credential type defined, we can now add an OCI credential.

Go to Resources and Credentials, and make a new credential. You receive the following result:

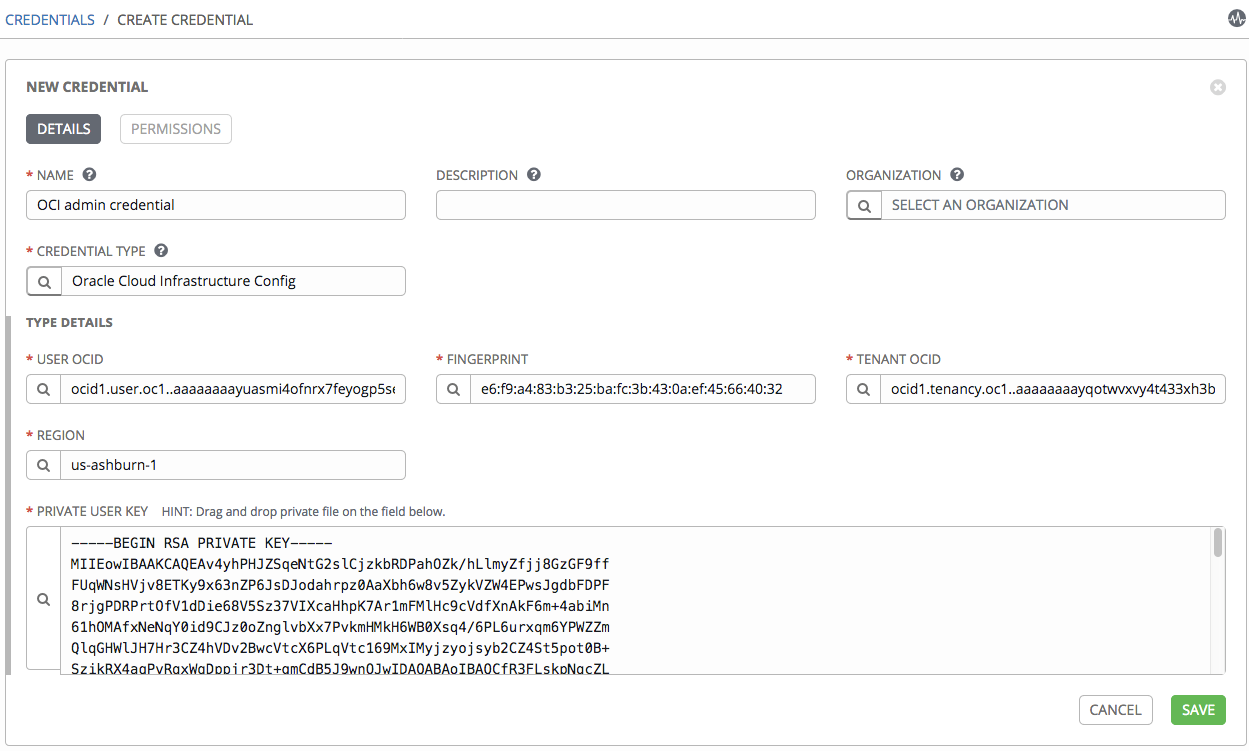

A screenshot of the Create Credential page, showing a new credential with the fields for its details filled out.

Create the inventory

Create an inventory for OCI under Resources and Inventories. The name and organization fields are required.

After the inventory is created, we can now attach a source to it. Fill the following fields:

  • Name: Fill in the inventory source name.

  • Project: Specify the project that we created earlier and enter.

  • Source: Choose Sourced from a Project.

  • Inventory file: The path to our inventory YAML file in the source control repository. This example uses inventory.oci.yml.

  • Credential: Pick the OCI credentials that you created in the previous step.

The result looks something like the following screenshot:

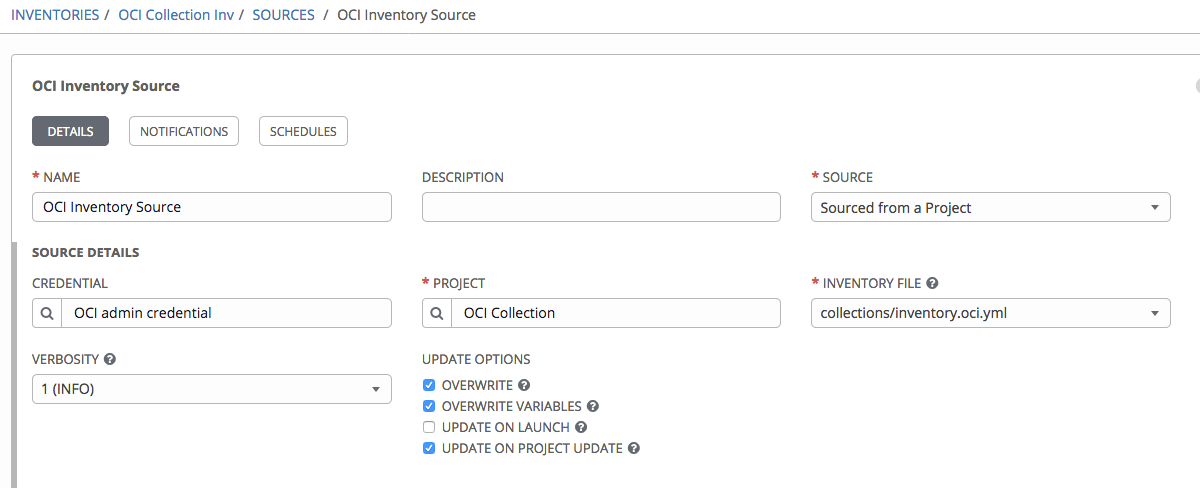

A screenshot of a OCI Inventory Source creation page.

To test the setup, we can sync with the source by clicking Sync all. If everything was configured correctly, the hosts are imported into the inventory:

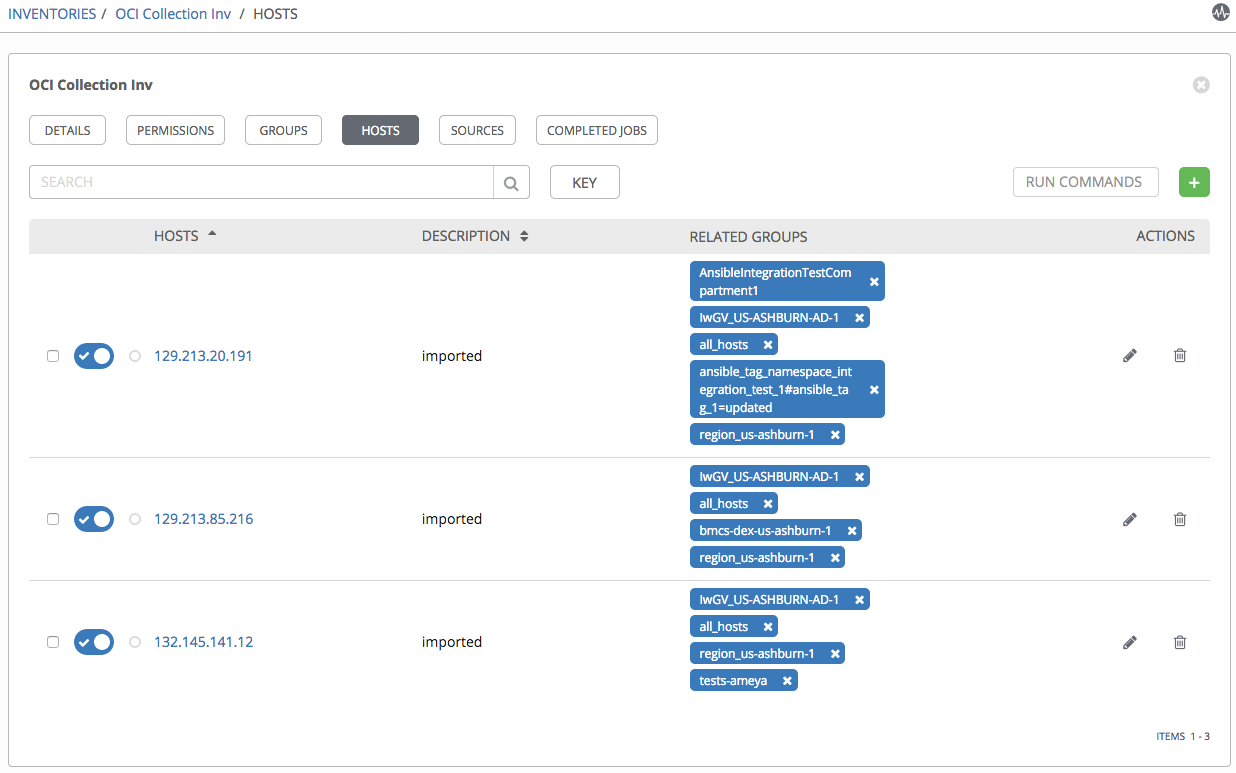

A screenshot of the OCI Collection Inv page, showing the hosts important to the inventory.

Run OCI module playbooks

In this section, I show the steps to run OCI Ansible modules using Tower.

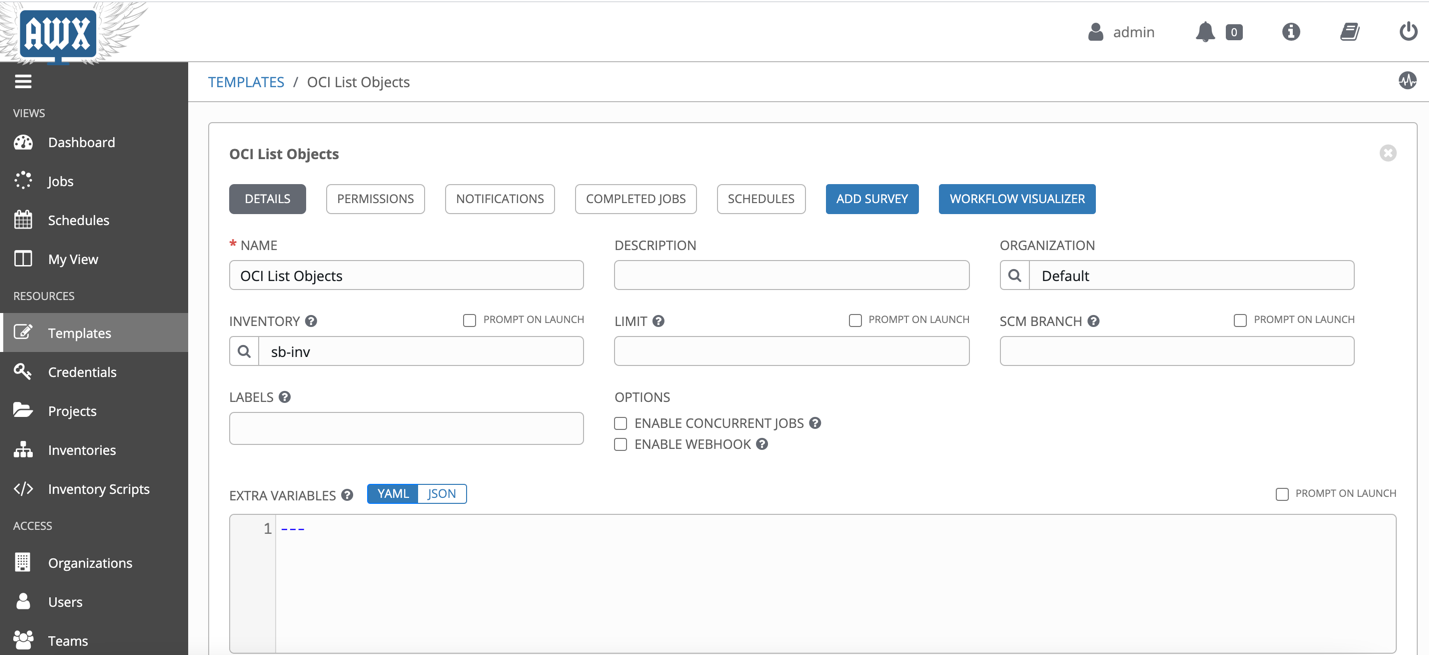

Create a template under Templates. Fill the following required fields:

  • Template name

  • Project: Specify the Project that we created earlier.

  • Job type: Choose Run.

  • Inventory: Pick the OCI inventory that you created in the previous step.

  • Credential: Pick credential type Oracle Cloud Infrastructure Config. Then pick the OCI credentials that you created in the previous step.

  • Playbook: The path to the sample playbook to run. We provide many OCI samples on GitHub.

  • Extra variables: Add any other variables needed to run the sample.

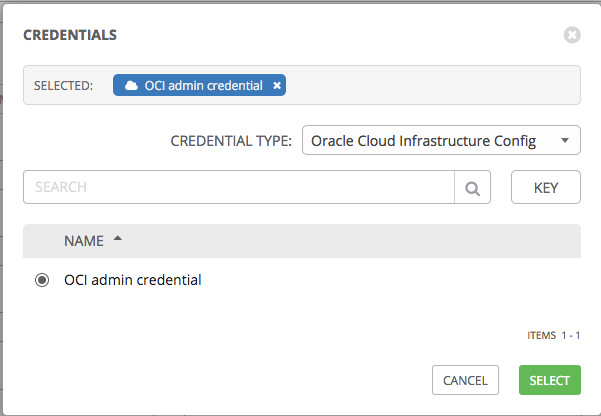

A screenshot of the Credentials page, showing the creation of an OCI admin credential.

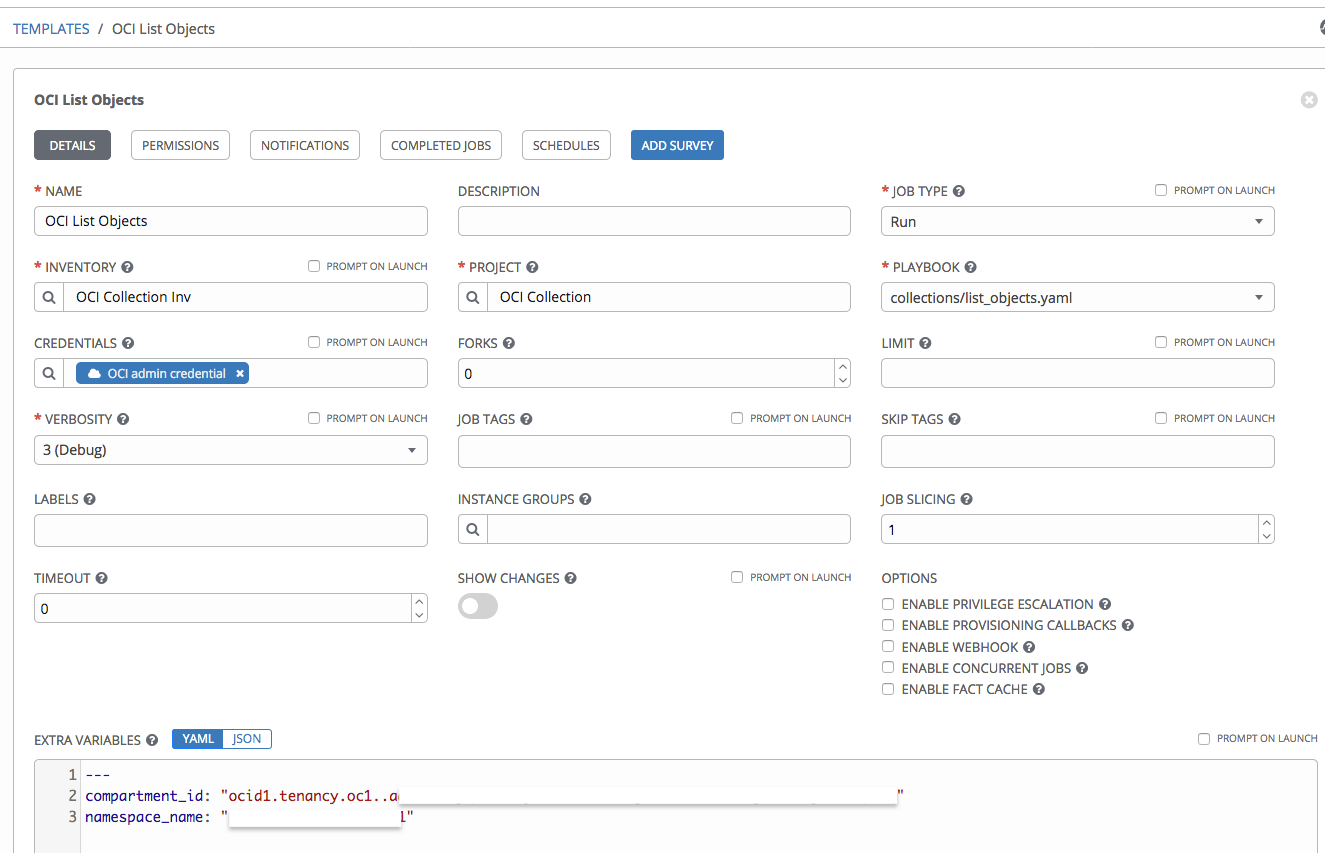

A screenshot of the OCI List Objects page with the fileds filled in.

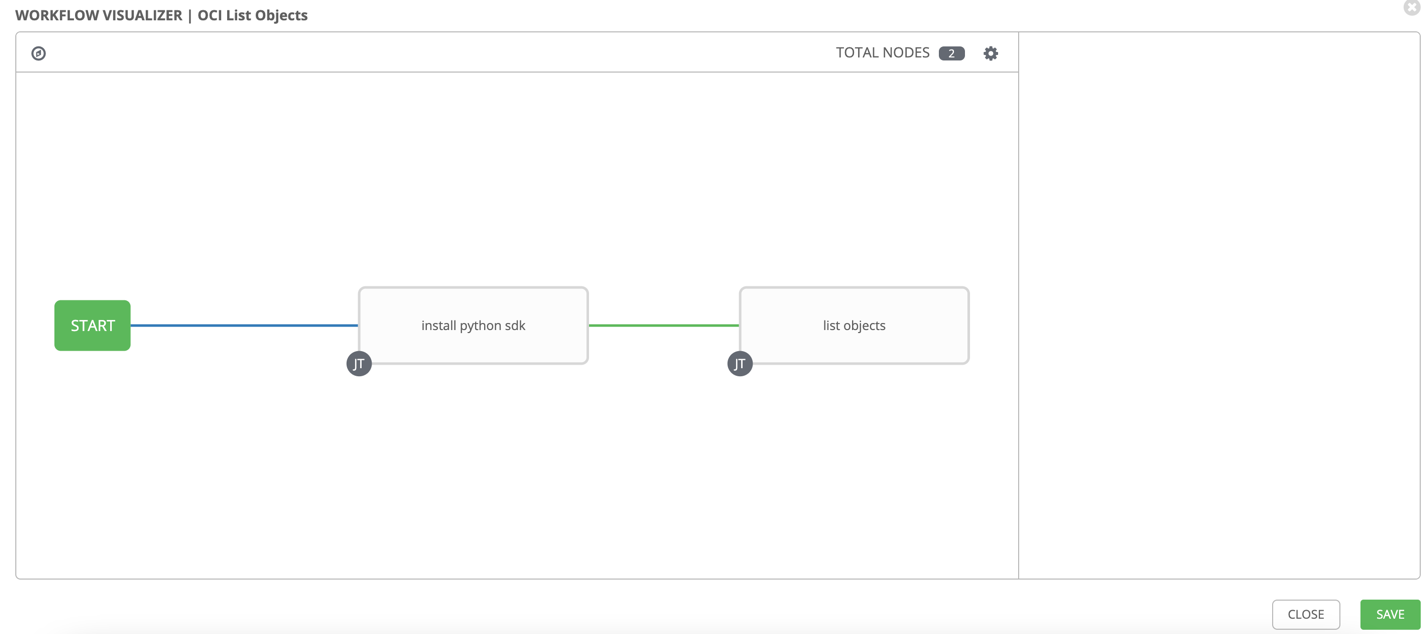

After creating the template, you can launch the job. This job runs the sample to list buckets and objects.

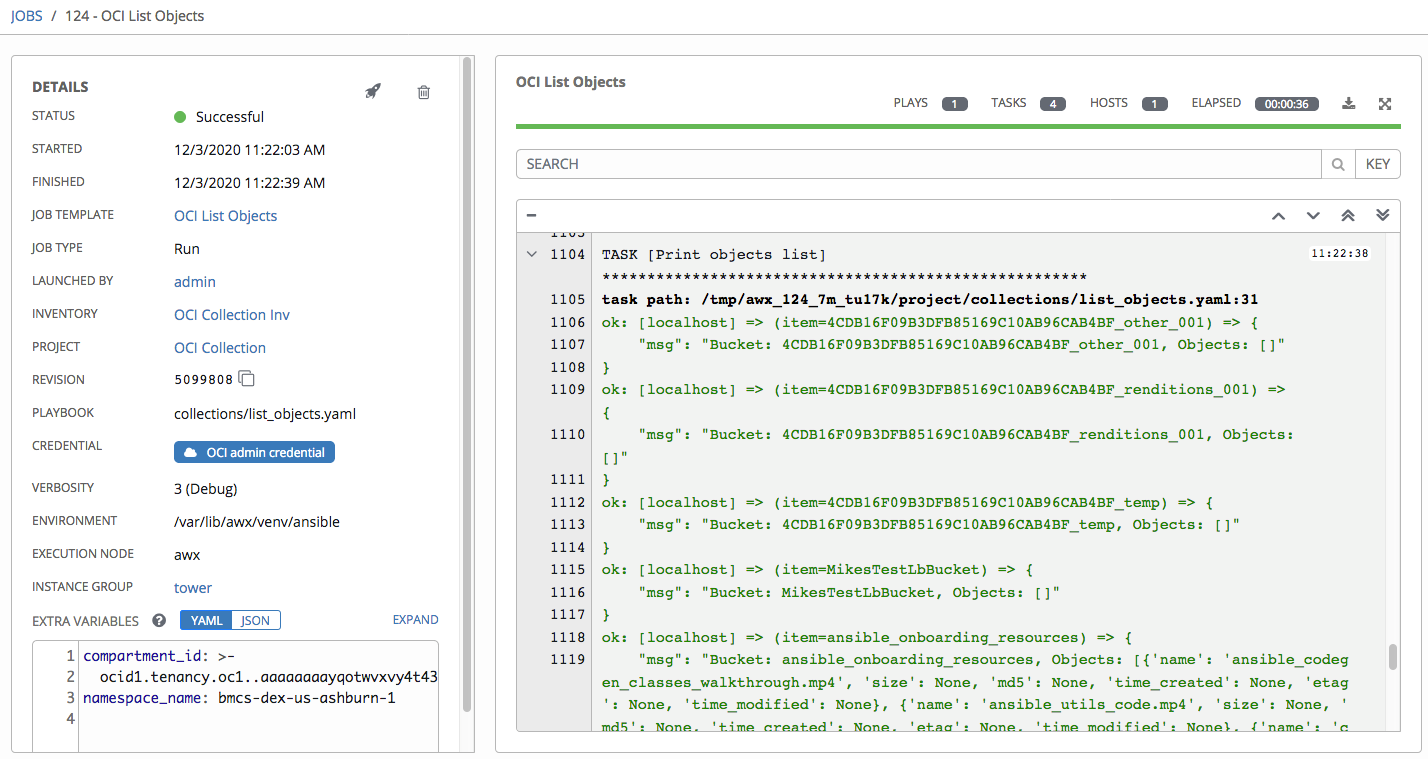

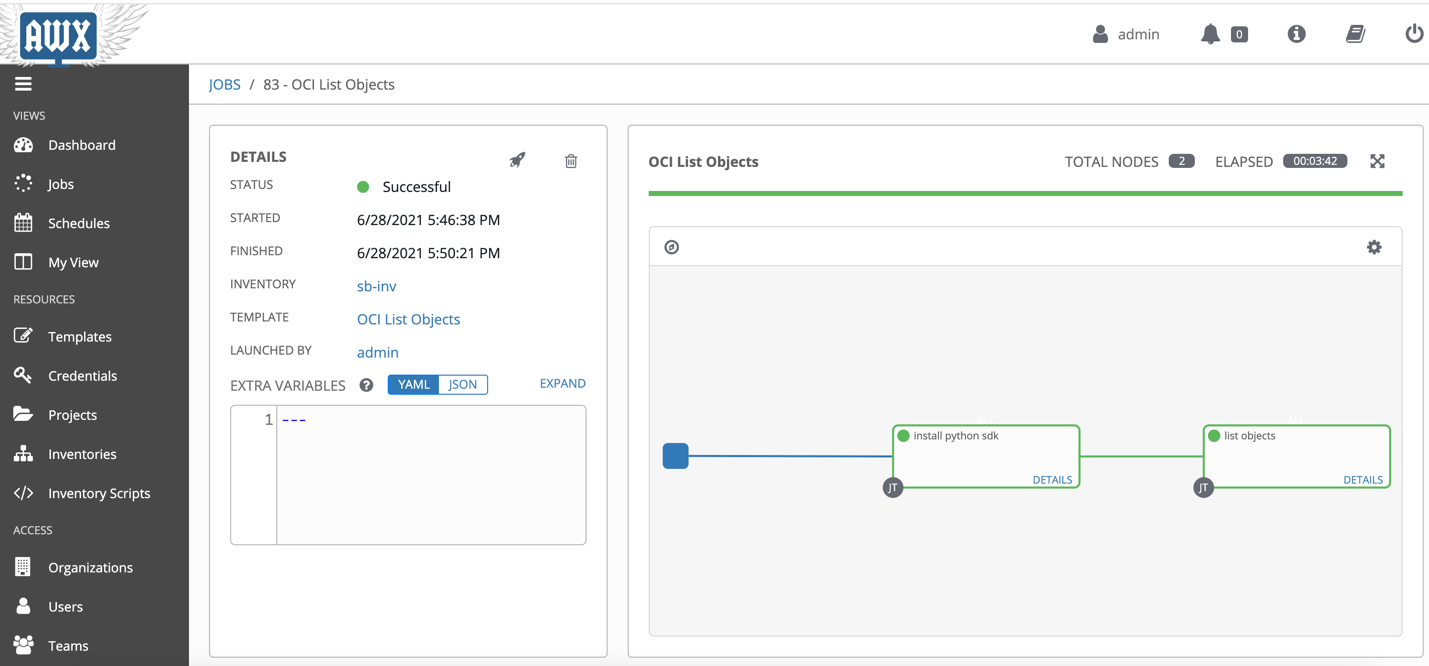

A screenshot of the OCI List Objects page with the details of the job created for this example.

Summary

Ansible Tower and AWX make it easy to manage your cloud resources across different cloud vendors. Oracle provides modules to manage OCI using the Oracle Cloud Infrastructure Ansible Modules Collection. This blog showed how to set up and use the Oracle Cloud modules and the inventory plugin with Ansible Tower and AWX.
