Steps to create a self-signed certificate using OpenSSL

Puneeth Prakash
Principal Software Engineer

Below are the steps to create a self-signed certificate using OpenSSL :

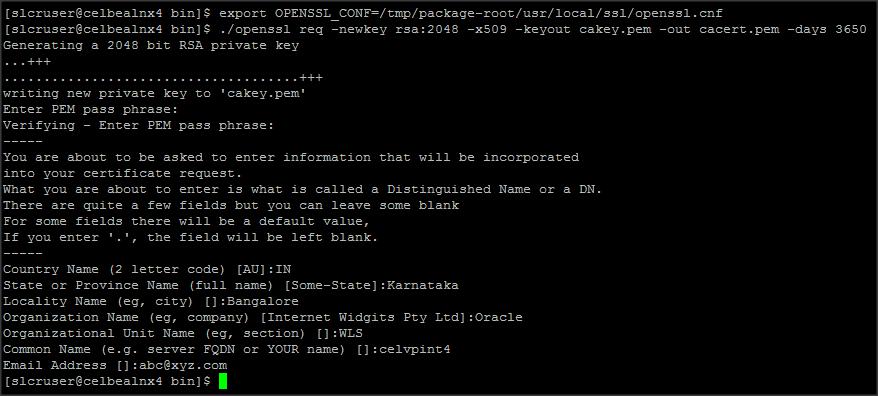

STEP 1 :

Create a private key and public certificate using the following command :

Command : openssl req -newkey rsa:2048 -x509 -keyout cakey.pem -out cacert.pem -days 3650

In the above command :

- If you add "-nodes" then your private key will not be encrypted.

- cakey.pem is the private key

- cacert.pem is the public certificate

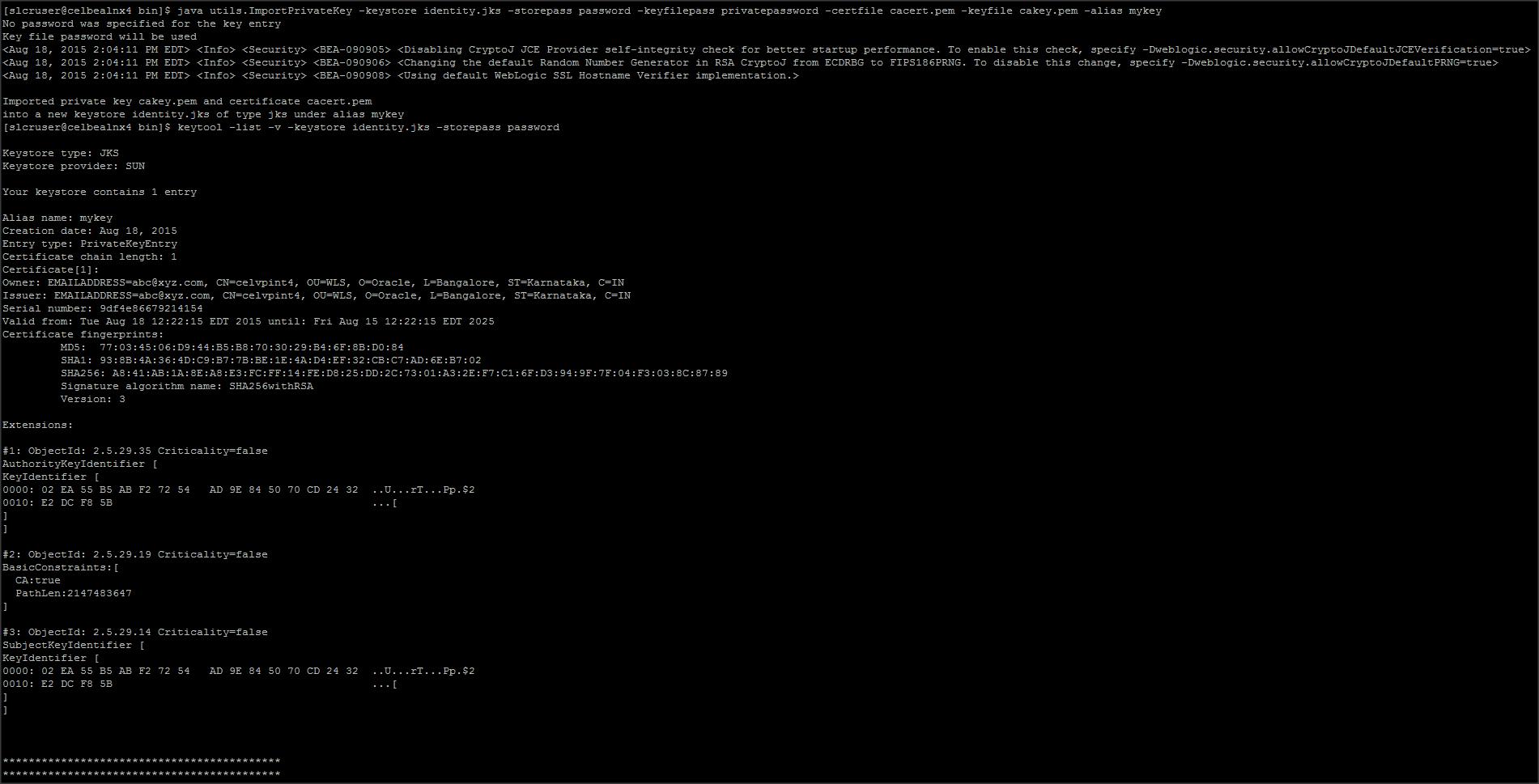

STEP 2 :

Use the following java utility to create a JKS keystore :

Command : java utils.ImportPrivateKey -keystore identity.jks -storepass password -keyfilepass privatepassword -certfile cacert.pem -keyfile cakey.pem -alias mykey

Alternatively, you can use the following commands to create a PKCS12 / JKS file :

STEP 2a :

Create a PKCS12 keystore :

Command : openssl pkcs12 -export -in cacert.pem -inkey cakey.pem -out identity.p12 -name "mykey"

In the above command :

- "-name" is the alias of the private key entry in keystore.

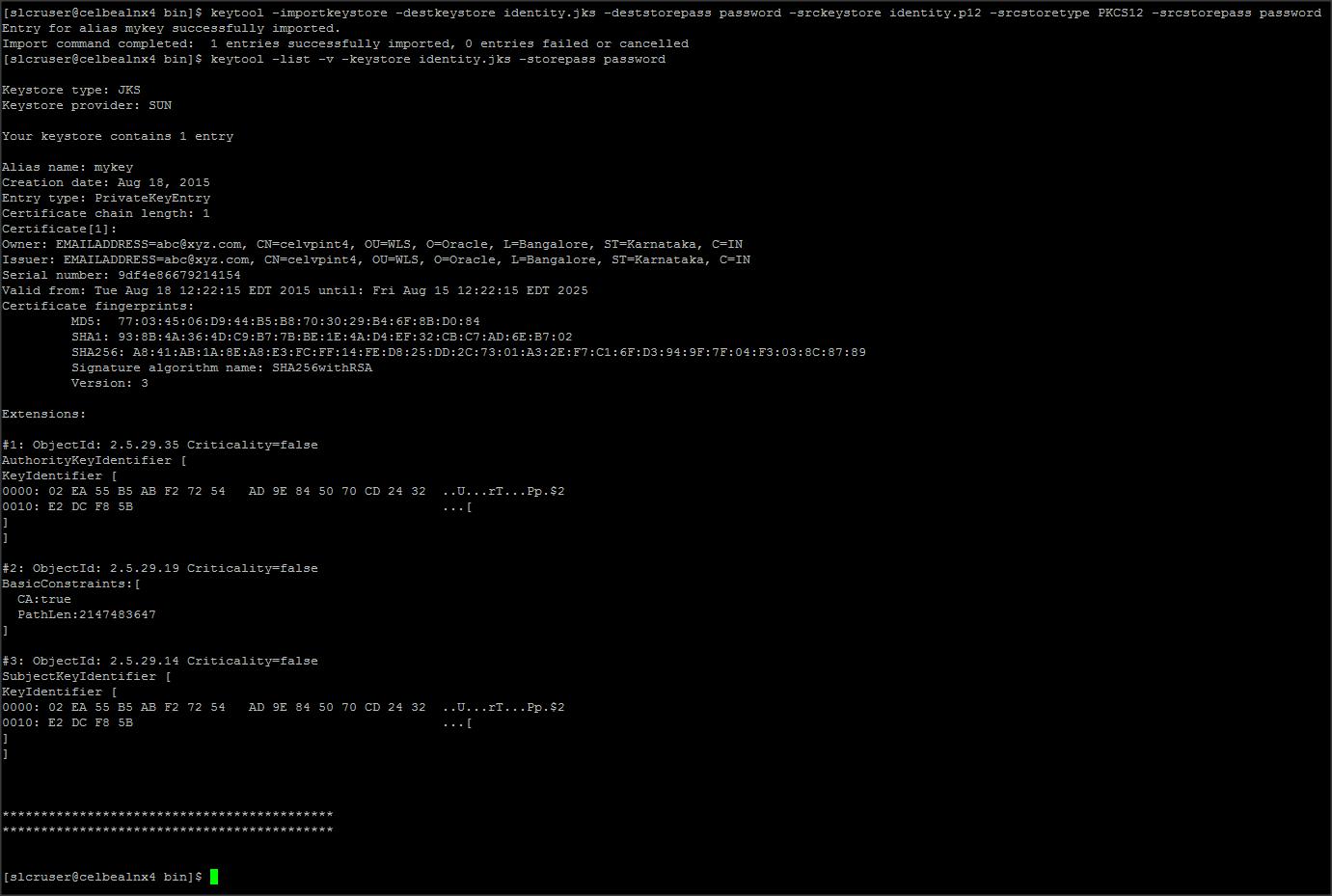

STEP 2b :

Now convert the PKCS12 keystore to JKS keytstore using keytool command :

Command : keytool -importkeystore -destkeystore identity.jks -deststorepass password -srckeystore identity.p12 -srcstoretype PKCS12 -srcstorepass password

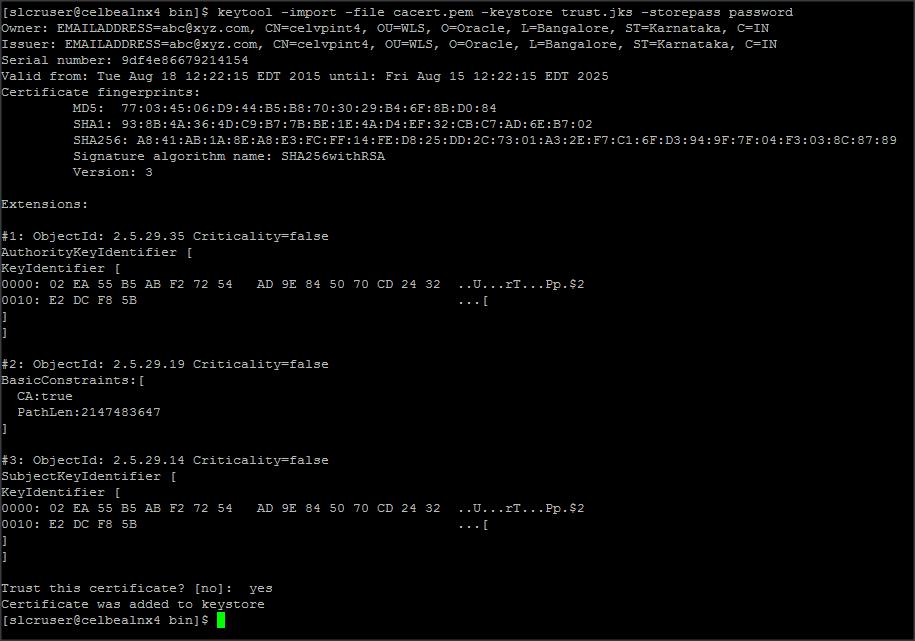

STEP 3 :

Create a trust keystore using the following command :

Command : keytool -import -file cacert.pem -keystore trust.jks -storepass password

<Additional Info>

- To view the public certificate :

 openssl x509 -in cacert.pem -noout -text

- To concatenate the private key and public certificate into a pem file (which is required for many web-servers ) :

 cat cakey.pem cacert.pem > server.pem
