[Forms to APEX] Converting FMBs to XML

Monica Godoy
Principal Product Manager

To create the Migration Project in APEX, convert your Forms files to XML using the Forms2XML Conversion Tool.  This tool was introduced in Oracle9i Oracle Developer Suite and produces an XML file that has the same base name as the Forms file with an .xml extension. The extension _fmb, _mmb, or _olb is added to the base file name to indicate whether the original file was a Forms Modules, a MenuModule, or an Object Library.

Converting the files

There are two ways to convert your Forms file to XML:

  • From a Command Line
  1. In your Forms installation, locate the Forms2XML.
  2. In the command line, use the following syntax: frmf2xml [options] file1 file2.
    1. In this case: frmf2xml customers.fmb
  3. The output file is placed in the current folder.

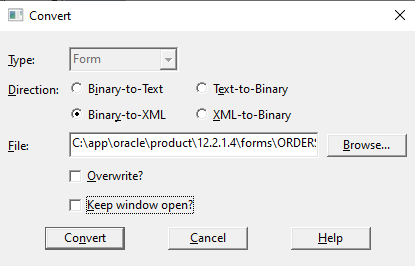

  • From Oracle Forms Builder
  1. Open the Oracle Forms Builder.
  2. Navigate to File and click Convert.
  3. Select the type of file: Form
  4. Select Direction: Binary-to-XML
  5. Browse your File.
  6. Click Convert button.

The forms used in this example are:

File name before conversion File name after conversion
customers.fmb customers_fmb.xml
orders.fmb orders_fmb.xml



To learn more please visit Converting FormModules, ObjectLibraries, or MenuModules to XML.
